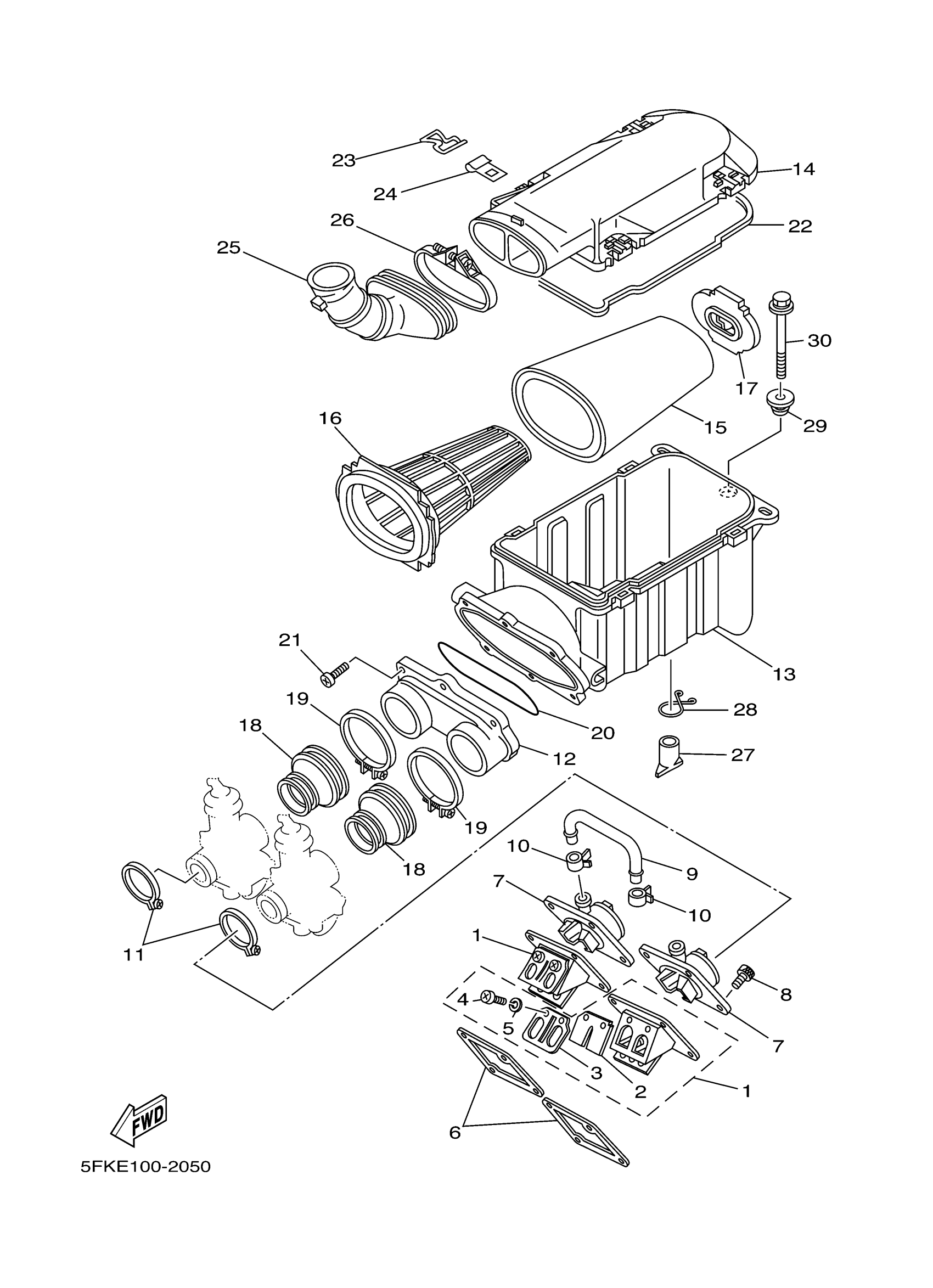

Yamaha YFZ350SEV (BANSHEE SE) 3B56 2006 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

2GU-13610-01-00

Unavailable

2

REED, VALVE

2GU-13613-00-00

$17.77

3

STOPPER, REED VALVE

2GU-13616-00-00

$8.06

4

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.56

5

WASHER, SPRING

92990-03100-00

$5.75

6

GASKET, VALVE SEAT

3GG-13621-00-00

$7.43

7

JOINT, CARBURETOR

31K-13565-01-00

$54.08

8

BOLT,SOCKET

91317-06025-00

$1.91

9

PIPE

29L-14465-00-00

$23.12

10

CLIP (23E)

90467-20085-00

$7.77

11

HOSE CLAMP ASSY(1MX)

90450-44046-00

$11.85

12

CASE, AIR CLEANER 1

2GU-14411-00-00

$55.15

13

CASE, AIR CLEANER 2

2GU-14421-01-00

$129.95

14

CAP, CLEANER CASE 1

2GU-14412-00-00

$91.13

15

ELEMENT, AIR CLEANER

2GU-14451-01-00

Unavailable

16

GUIDE

5FK-14458-00-00

Unavailable

17

PLATE, ELEMENT FITTING

2GU-14468-00-00

Unavailable

18

JOINT, AIR CLEANER 1

29L-14453-01-00

Unavailable

19

CLAMP, HOSE (29L)

90460-68230-00

Unavailable

20

SEAL

1VJ-14462-00-00

Unavailable

21

SCREW, PAN TAP.2

97707-50525-00

Unavailable

22

SEAL

1VJ-14462-00-00

Unavailable

23

CLAMP(2GU)

90465-18312-00

Unavailable

24

CLIP(2GU)

90468-05184-00

Unavailable

25

DUCT

2GU-14437-00-00

Unavailable

26

CLAMP, HOSE(2GU)

90460-99291-00

Unavailable

27

SEAL

59V-14457-00-00

Unavailable

28

CLIP (21V)

90467-22080-00

Unavailable

29

GROMMET (509)

90480-18171-00

Unavailable

30

BOLT, WITH WASHER (30X)

90119-06096-00

Unavailable
