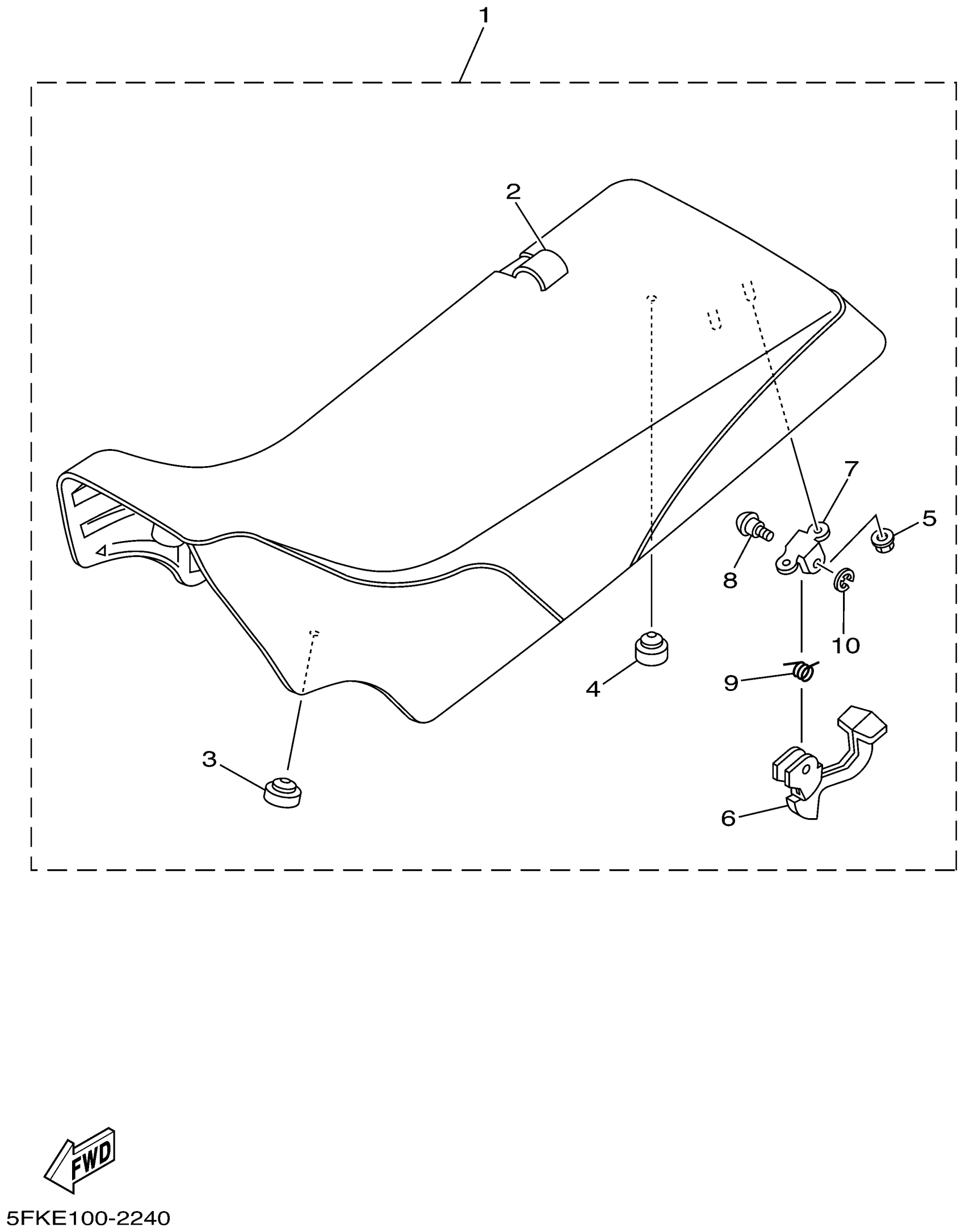

Yamaha YFZ350P (BANSHEE) 5FKE 2002 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5FK-24710-E1-00

Unavailable

2

SEAT COVER COMP.

5FK-2470F-E1-00

Unavailable

3

PAD, SEAT

22W-24741-00-00

$7.20

4

STOPPER, MAIN STAND

371-27114-00-00

$5.42

5

NUT, FLANGE(4MV)

95707-06500-00

$0.73

6

LEVER, SEAT

3GD-24776-00-00

$38.12

7

BRACKET, SEAT LEVER

4K0-24775-00-00

Unavailable

8

PIN

4K0-24774-01-00

Unavailable

9

SPRING, TORSION (24W)

90508-20454-00

Unavailable

10

CIRCLIP (EU0)

99080-04600-00

$1.70
