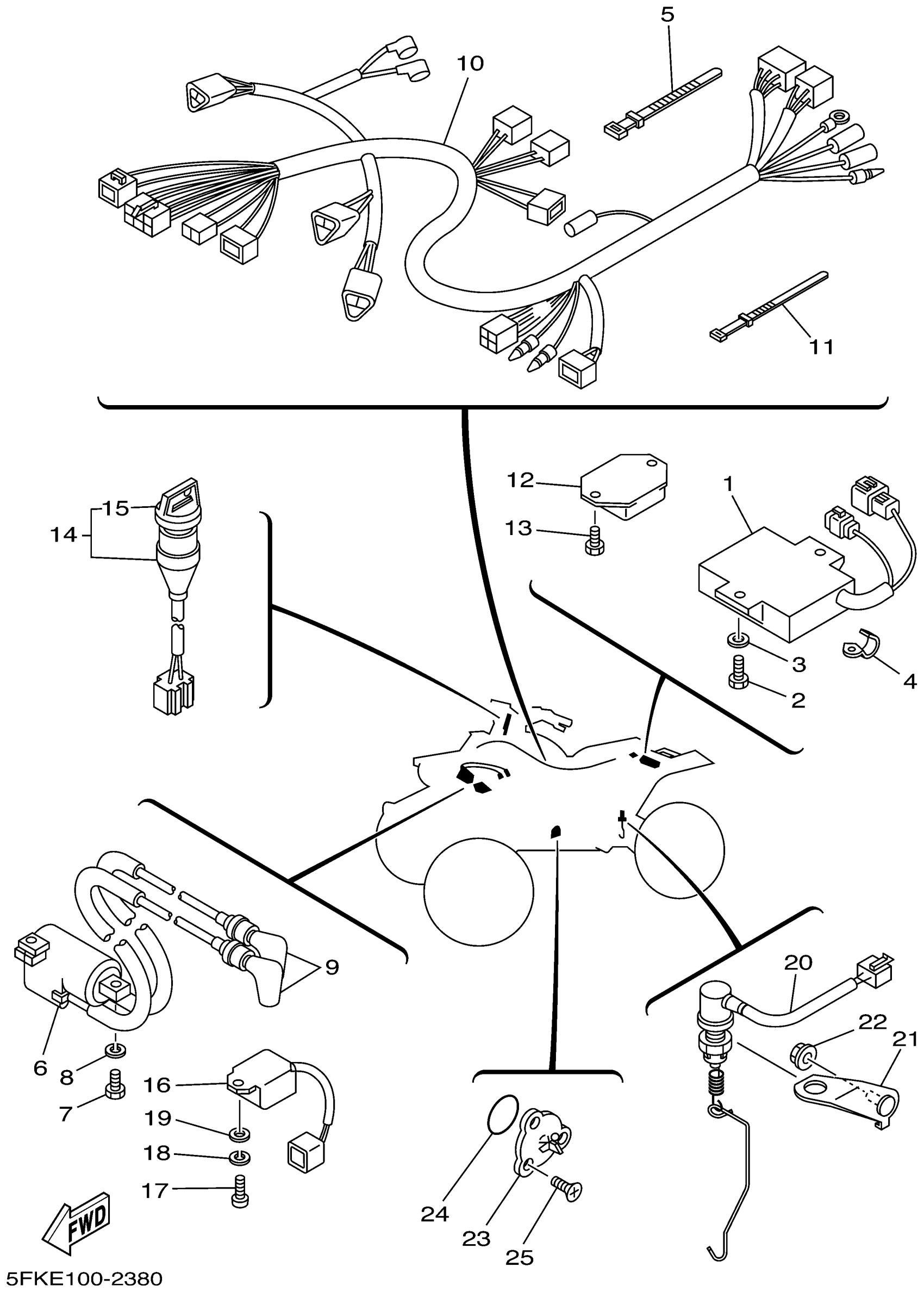

Yamaha YFZ350P (BANSHEE) 5FKE 2002 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

3GG-85540-11-00

Unavailable

2

BOLT, HEXAGON

97017-06016-00

$5.76

3

WASHER(6TA)

92907-06600-00

$0.73

4

CLAMP (4G0)

90462-08078-00

$4.82

5

BAND, SWITCH CORD

437-83936-01-00

$4.56

6

IGNITION COIL ASSY

3LC-82310-01-00

$172.51

7

BOLT, HEXAGON

97017-06020-00

$2.37

8

WASHER, SPRING

92907-06100-00

$0.98

9

PLUG CAP ASSY

8DG-82370-00-00

$41.54

10

WIRE HARNESS ASSY

5FK-82590-00-00

$228.96

11

BAND, SWITCH CORD

437-83936-11-00

$3.34

12

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$46.16

12

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$46.16

13

BOLT (3H6)

90109-06557-00

$1.97

14

MAIN SWITCH ASSY

5FK-82510-01-00

Unavailable

15

CAP, KEY

3HN-82579-00-00

Unavailable

16

CONTROL UNIT ASSY

3GG-85590-00-00

Unavailable

17

SCREW, PAN

98517-06020-00

Unavailable

18

WASHER, SPRING

92907-06100-00

$0.98

19

WASHER(6TA)

92907-06600-00

$0.73

20

STOP SWITCH ASSY

5FK-82530-01-00

Unavailable

21

STAY, STOP SWITCH

5FK-2144G-10-00

Unavailable

22

NUT,SELF-LOCKING

95607-06200-00

Unavailable

23

NEUTRAL SWITCH ASSY

1L9-82540-00-00

Unavailable

24

O-RING (371)

93210-29196-00

Unavailable

25

SCREW, FLAT

98707-05012-00

Unavailable

26

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

27

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
