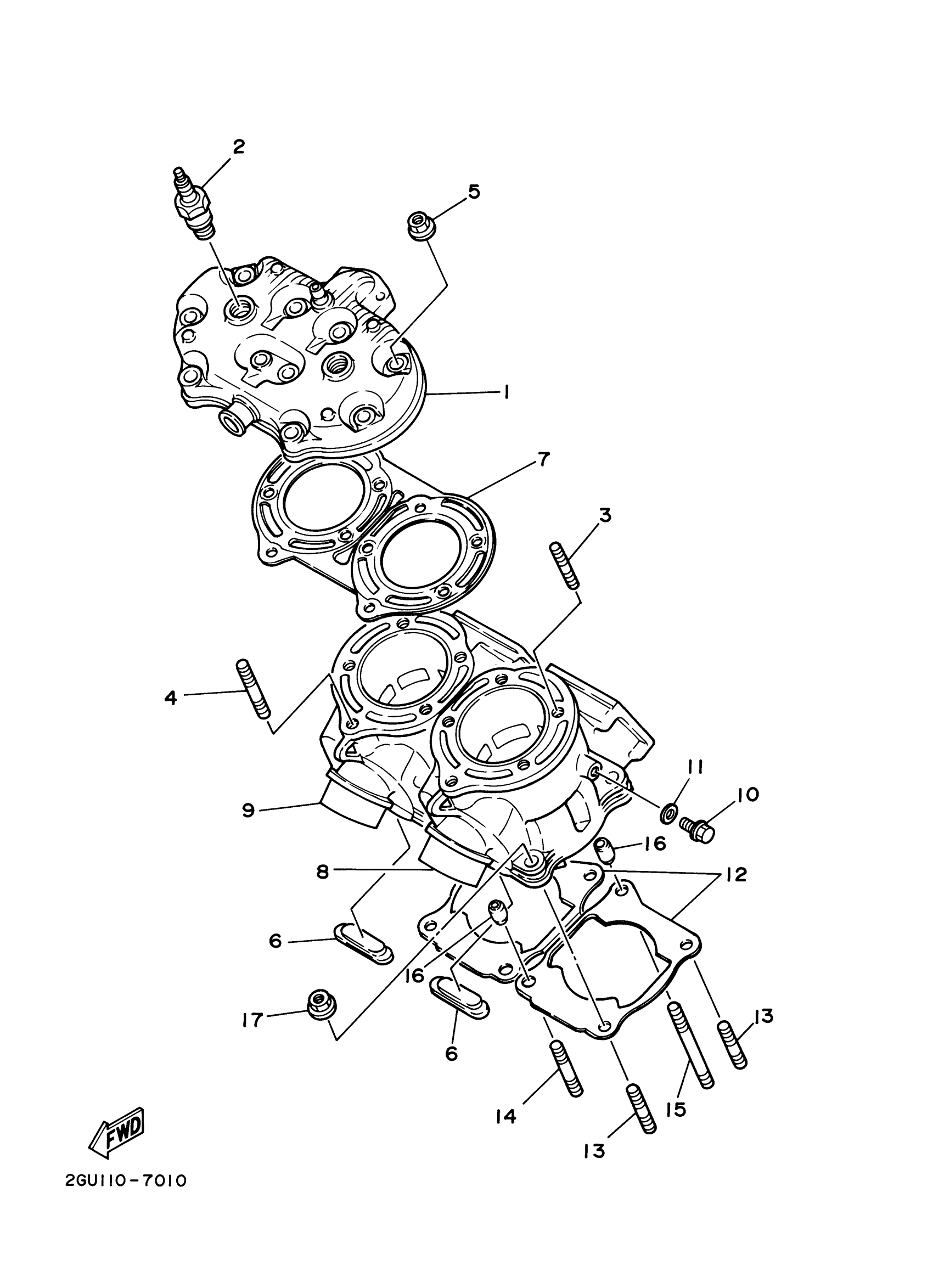

Yamaha YFZ350N (BANSHEE) 5FKA 2001 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

2GU-11111-00-00

$284.53

2

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

$3.82

3

BOLT, STUD (5V6)

90116-08394-00

$3.93

4

BOLT, STUD(3GG)

95917-08640-00

$5.75

5

NUT(55X)

90179-08491-00

$2.01

6

SEAL, CYLINDER 1

47X-11355-00-00

$6.29

7

GASKET, CYLINDER HEAD 1

2GU-11181-00-00

$41.57

8

CYLINDER 1

2GU-11311-00-00

$666.15

9

CYLINDER 2

2GU-11321-00-00

$857.44

10

BOLT, FLANGE

95817-06010-00

$3.65

11

GASKET (4V2)

90430-06166-00

$3.22

12

GASKET, CYLINDER

3GG-11351-03-00

Unavailable

13

BOLT, STUD (3R3)

90116-08318-00

$4.34

14

BOLT, STUD (10V)

90116-08388-00

$7.77

15

BOLT (248-11361-00)

90116-08064-00

$5.30

16

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

17

NUT(55X)

90179-08491-00

$2.01
