Description

Price

1

AXLE, MAIN

2GU-17411-00-00

$159.18

2

BRG,R-B 5205 52MM 190G KY

93305-20502-00

$109.85

3

CIRCLIP (168)

93440-52009-00

$9.75

4

GEAR, 2ND PINION

2GU-17121-00-00

$53.30

5

GEAR, 3RD PINION

2GU-17131-00-00

$114.83

6

GEAR, 5TH PINION

2GU-17151-00-00

$71.27

7

GEAR, 6TH PINION

2GU-17161-00-00

$73.65

8

WASHER, PLATE (5F7)

90201-256E6-00

$4.35

9

CIRCLIP (4L0)

93440-25084-00

$3.96

10

WASHER 328172160000

90209-21105-00

$7.51

11

WASHER PLATE 132172160000

90201-20266-00

$8.22

12

CIRCLIP(1AR)

99009-20400-00

$6.17

13

BRG,CYL-CAL ROLLER 36G NT

93311-22027-00

$45.81

14

PLATE, COVER

4L0-17471-00-00

$18.21

15

SCREW, PAN

98517-06012-00

$3.14

16

AXLE, DRIVE

29L-17421-00-00

$163.14

17

BEARING, CYL.#11

93311-42045-00

$30.28

18

CIR CLIP

278-17425-00-00

$7.51

19

GEAR, 1ST WHEEL

2GU-17211-00-00

$100.95

20

GEAR, 2ND WHEEL

2GU-17221-00-00

$88.69

21

GEAR, 3RD WHEEL

2GU-17231-00-00

$97.38

22

GEAR, 4TH WHEEL

2GU-17241-00-00

$89.49

23

GEAR, 5TH WHEEL

2GU-17251-00-00

$89.49

24

GEAR, 6TH WHEEL

2GU-17261-01-00

$114.29

25

WASHER 328172160000

90209-21105-00

$7.51

26

CIRCLIP (4L0)

93440-25084-00

$3.96

27

WASHER PLATE 328171160000

90201-20276-00

$6.57

28

CIRCLIP(1AR)

99009-20400-00

$6.17

29

WASHER PLATE 152172260000

90201-25490-00

$8.48

30

BRG,R-B 6305 62MM 225G NK

93306-30504-00

$63.42

31

CIRCLIP

278-17424-01-00

$18.51

32

COLLAR

90387-257N4-00

$20.52

33

OIL SEAL(1WT)

93102-35369-00

$19.57

34

SPROCKET, DRIVE

93834-14050-00

$18.32

35

WASHER, LOCK (23X)

90215-21239-00

$7.56

36

NUT 152174630000

90179-18020-00

$10.68

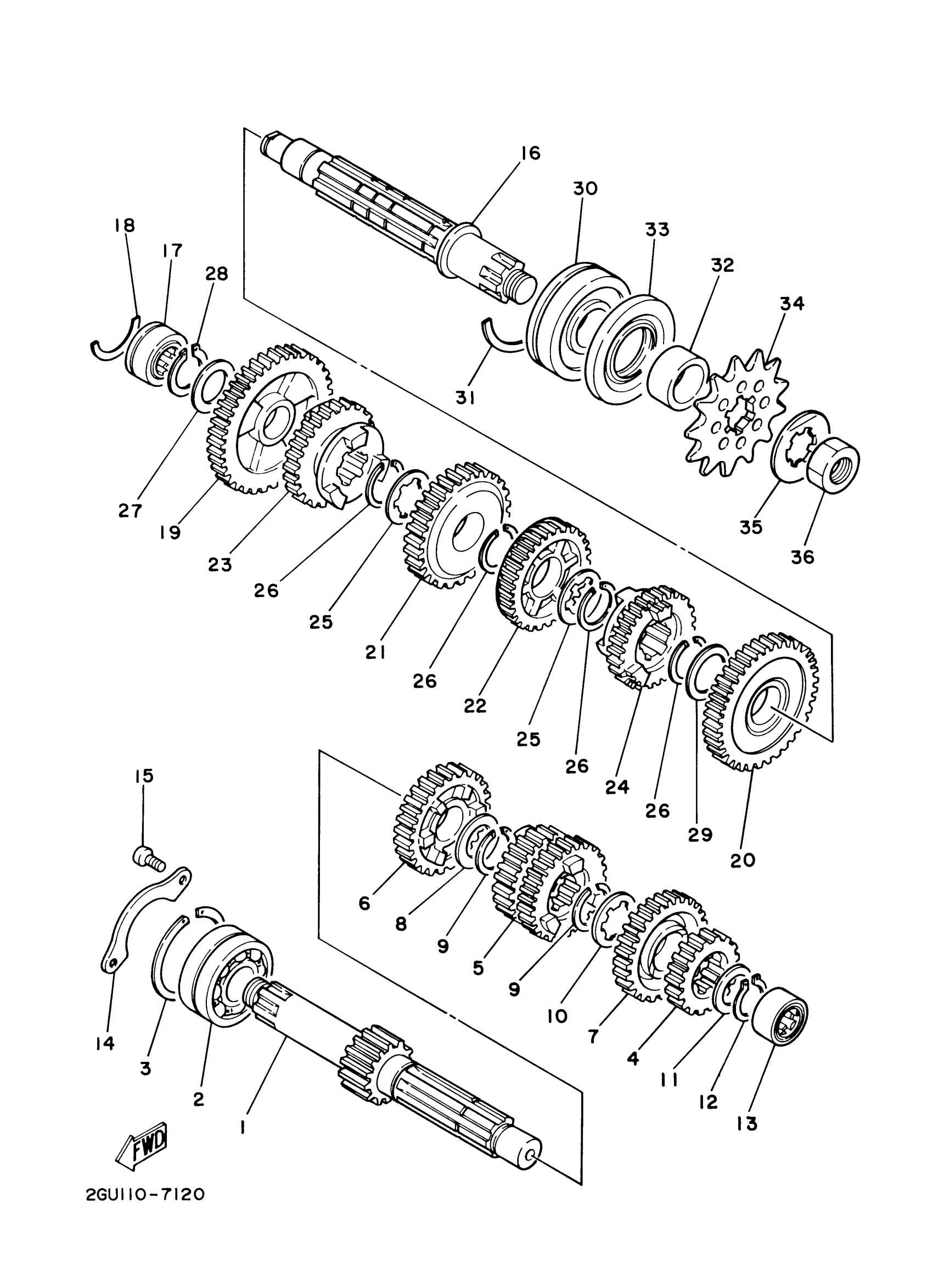

Yamaha YFZ350LES (BANSHEE - LIMITED EDITION BLACK) 5FKT 2004 TRANSMISSION Diagram
