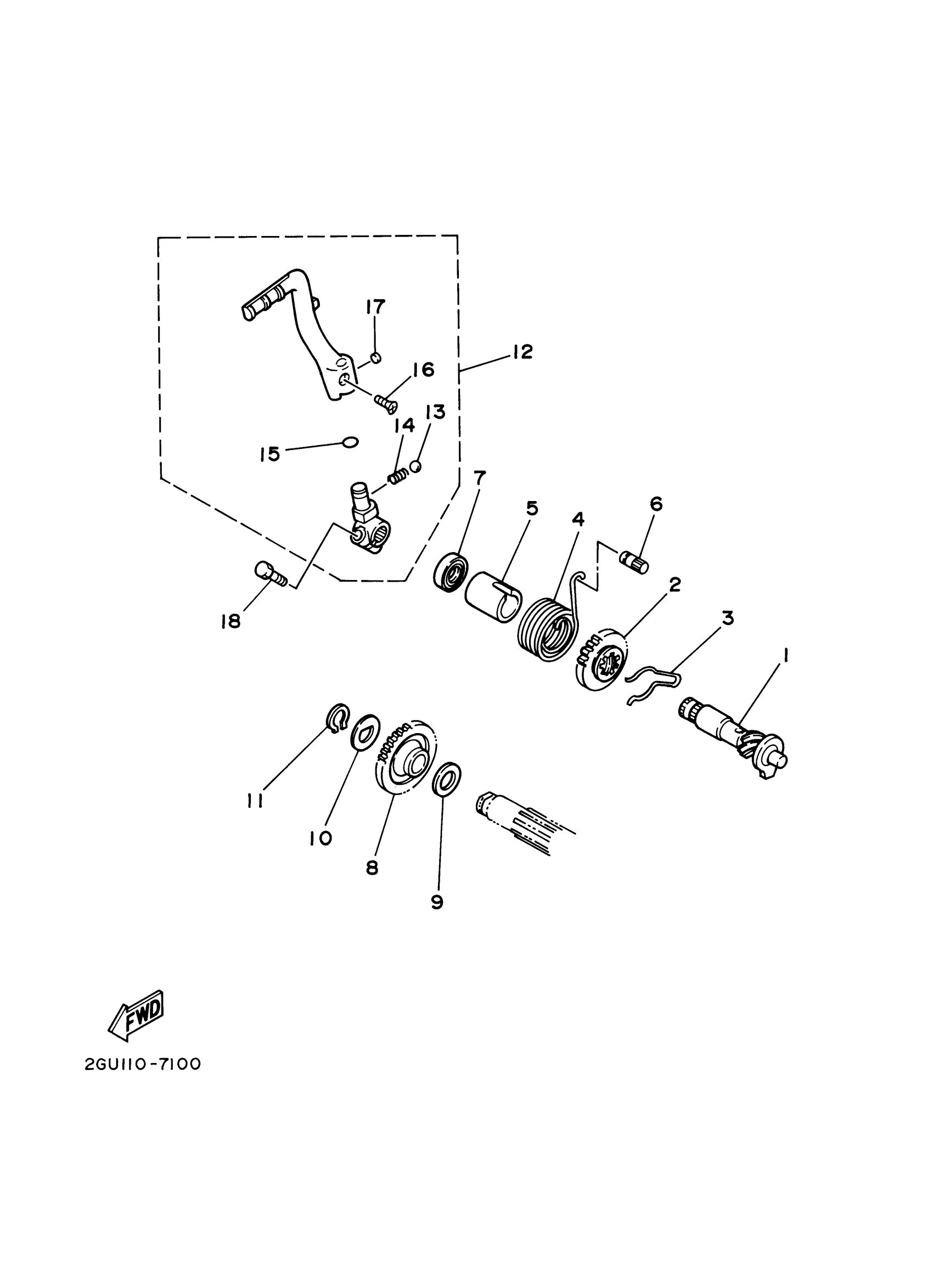

Yamaha YFZ350LES (BANSHEE - LIMITED EDITION BLACK) 5FKT 2004 STARTER Diagram

Description

Price

KICK AXLE ASSY

4L0-15660-01-00

$104.53

GEAR, KICK

4L0-15641-00-00

$60.18

CLIP (2R8)

90468-26091-00

$6.17

SPRING TORSION 278156650000

90508-30051-00

$13.85

SPACER

4L0-15666-00-00

$17.43

STOPPER, KICK SPRING

248-15668-00-00

$6.72

OIL SEAL

93102-20484-00

$7.03

GEAR, KICK IDLE

4L0-15651-00-00

$84.73

SHIM, MAIN AXLE (1.0)

164-17417-00-10

$6.68

WASHER (4L0)

90214-15020-00

$6.80

CIRCLIP(1AR)

99009-15400-00

$5.10

KICK CRANK ASSY

2GU-15620-01-00

$178.19

BALL (12R)

93507-32031-00

$3.91

SPRING COMPRESSION278156220000

90501-12081-00

$6.17

O-RING (2H9)

93210-14369-00

$5.80

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

$6.38

PLUG, TAPER(2GU)

90336-42049-00

$5.55

BOLT, HEXAGON

97017-08030-00

$6.85
