Description

Price

1

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$67.71

2

BOLT, RIBBED NECK(3GD)

90114-10009-00

$5.89

3

REAR WHEEL COMP.

2XK-25390-03-YX

Unavailable

4

TIRE (AT20X10-9**KT877 T/L)

94110-090Y3-00

Unavailable

5

VALVE, RIM(2GH)

93900-00030-00

$14.46

6

NUT, FLANGE(8AB)

95707-10500-00

$1.66

7

WASHER, PLAIN(3BM)

92907-10200-00

$3.58

8

WASHER, PLATE

90201-14226-00

Unavailable

9

NUT, CASTLE (29U)

90171-14037-00

$9.00

10

PIN, COTTER

91490-30030-00

$7.15

11

AXLE, WHEEL

38W-25381-10-00

Unavailable

12

COLLAR, SPROCKET AXLE

2XJ-25386-00-00

$173.44

13

BOLT, STUD(2XJ)

90116-08507-00

$5.32

14

SPROCKET, DRIVEN (41T)

2XJ-25441-21-00

$41.06

15

WASHER

2XJ-25412-00-00

$4.03

16

NUT (3Y2)

90170-08258-00

$2.78

17

HUB, REAR

3GG-25311-01-98

$309.06

18

SPACER(38W)

90560-35263-00

$25.66

19

BEARING(38W)

93306-00705-00

$48.30

20

OIL SEAL(3BC)

93106-42026-00

$11.35

21

OIL SEAL(38W)

93102-43341-00

$13.85

22

PULLER, CHAIN 1

2XJ-25388-00-00

$30.38

23

BOLT(4SR)

90101-08777-00

$6.31

24

NUT(6TA)

95337-08600-00

$6.17

25

CHAIN

9Y581-87103-00

$88.20

26

JOINT, CHAIN

94681-87011-00

$4.89

27

BOLT(3GG)

90101-10685-00

$6.38

28

WASHER, PLATE (17K)

90201-106F2-00

$7.66

29

BOLT(3GG)

90101-12694-00

$27.84

30

WASHER, PLATE (4N0)

90201-126A7-00

$6.28

31

NUT(4KG)

90179-10658-00

$7.49

32

NUT(3GG)

90179-12588-00

$5.65

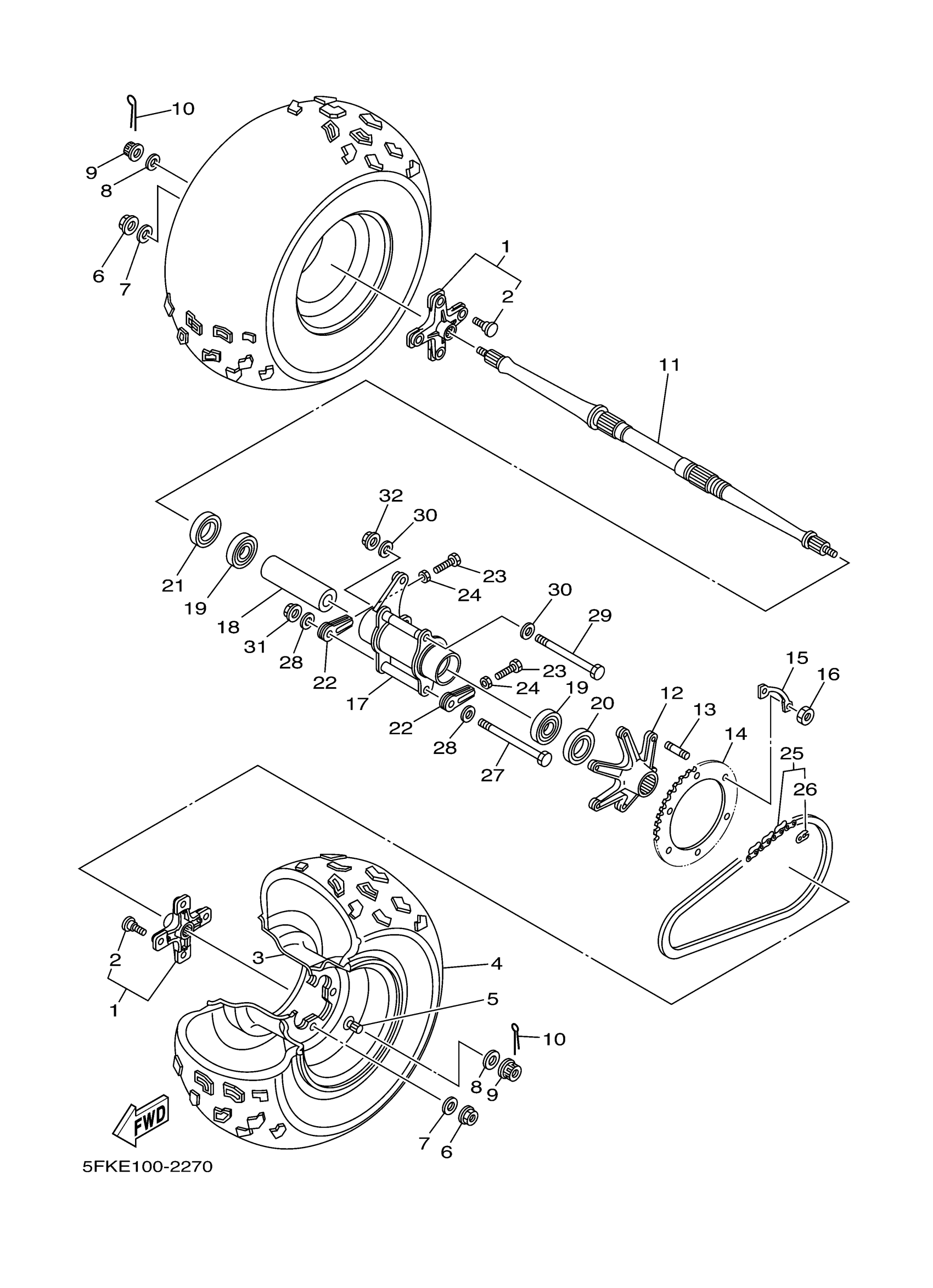

Yamaha YFZ350LES (BANSHEE - LIMITED EDITION BLACK) 5FKT 2004 REAR WHEEL Diagram

REAR WHEEL COMP.

TIRE (AT20X10-9**KT877 T/L)

WASHER, PLATE

AXLE, WHEEL
