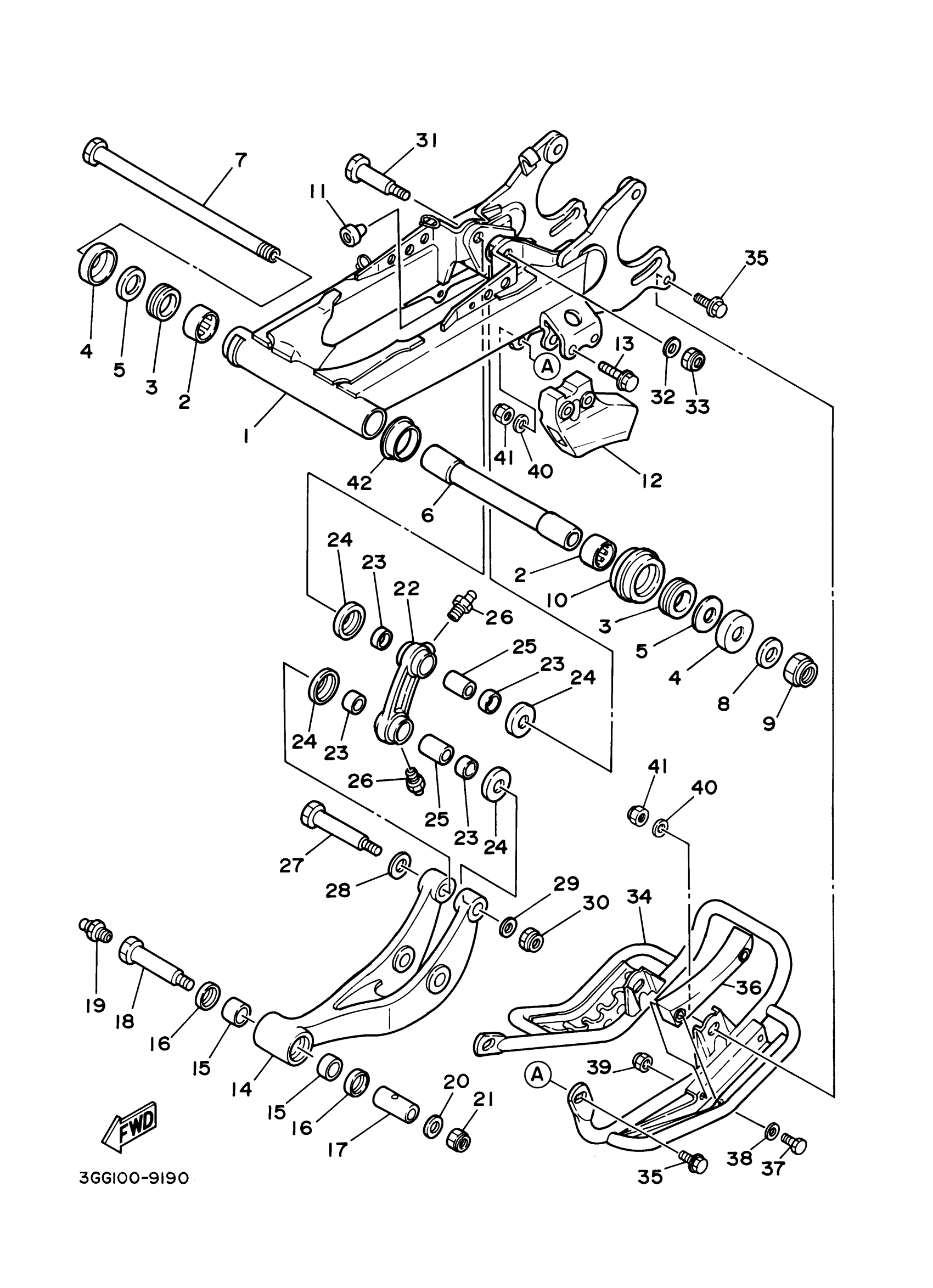

Yamaha YFZ350LES (BANSHEE - LIMITED EDITION BLACK) 5FKT 2004 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

3GG-22110-00-98

Unavailable

2

BEARING, CYLINDRICAL (23X)

93317-32231-00

$38.51

3

OIL SEAL (35X41.5X8-483)

93108-35004-00

$12.58

4

COVER, THRUST

2K6-22128-01-00

$26.13

5

WASHER, PLATE(2VM)

90201-247L2-00

$8.11

6

BUSH

2GU-22184-00-00

$65.73

7

SHAFT, PIVOT

2GU-22141-00-00

$92.21

8

WASHER, PLATE (5X6)

90201-160F6-00

$7.51

9

NUT, SELF-LOCKING

90185-16002-00

$15.11

10

SEAL, GUARD

2GU-22151-10-00

$15.04

11

STOPPER, MAIN STAND

4N0-27114-00-00

$6.78

12

SUPPORT, CHAIN

5X4-22199-00-00

$31.89

13

BOLT, FLANGE

95817-08040-00

$5.43

14

ARM, RELAY

1UY-2217A-00-00

$377.75

15

BUSH, FORMED(1RX)

90383-20033-00

$13.38

16

OIL SEAL

93109-20076-00

$13.58

17

COLLAR

90387-12021-00

$16.49

18

BOLT (30X)

90109-10752-00

$19.35

19

NIPPLE, GREASE

93700-06M03-00

$7.15

20

WASHER (7A9)

90201-100F7-00

$6.38

21

NUT, SELF LOCKING (23X)

90185-10120-00

$4.91

22

ROD, CONNECTING 1

3GG-2217F-00-00

$237.59

23

BUSH, FORMED(1RX)

90383-20032-00

$10.52

24

COVER, THRUST 2

55K-22129-00-00

$19.32

25

COLLAR(1RX)

90387-125N8-00

$14.98

26

NIPPLE, GREASE

93700-06M03-00

$7.15

27

BOLT(38W)

90109-102A6-00

$9.15

28

WASHER, PLATE

90201-12027-00

$6.23

29

WASHER, PLATE(6TC)

90201-10M05-00

$5.55

30

NUT, SELF LOCKING (23X)

90185-10120-00

$4.91

31

BOLT (12R)

90109-10654-00

$12.32

32

WASHER (7A9)

90201-100F7-00

$6.38

33

NUT, SELF LOCKING (23X)

90185-10120-00

$4.91

34

COVER

3GG-2219X-00-00

$234.42

35

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

36

GUARD, CHAIN

2GU-22153-00-00

$44.64

37

BOLT, HEXAGON

97017-06045-00

$2.62

38

WASHER(6TA)

92907-06600-00

$0.78

39

NUT, SELF-LOCKING

95617-06100-00

$2.32

40

WASHER(6TA)

92907-08600-00

$2.52

41

NUT, U

95617-08100-00

$6.78

42

PIPE

2GU-22155-00-00

$19.00
