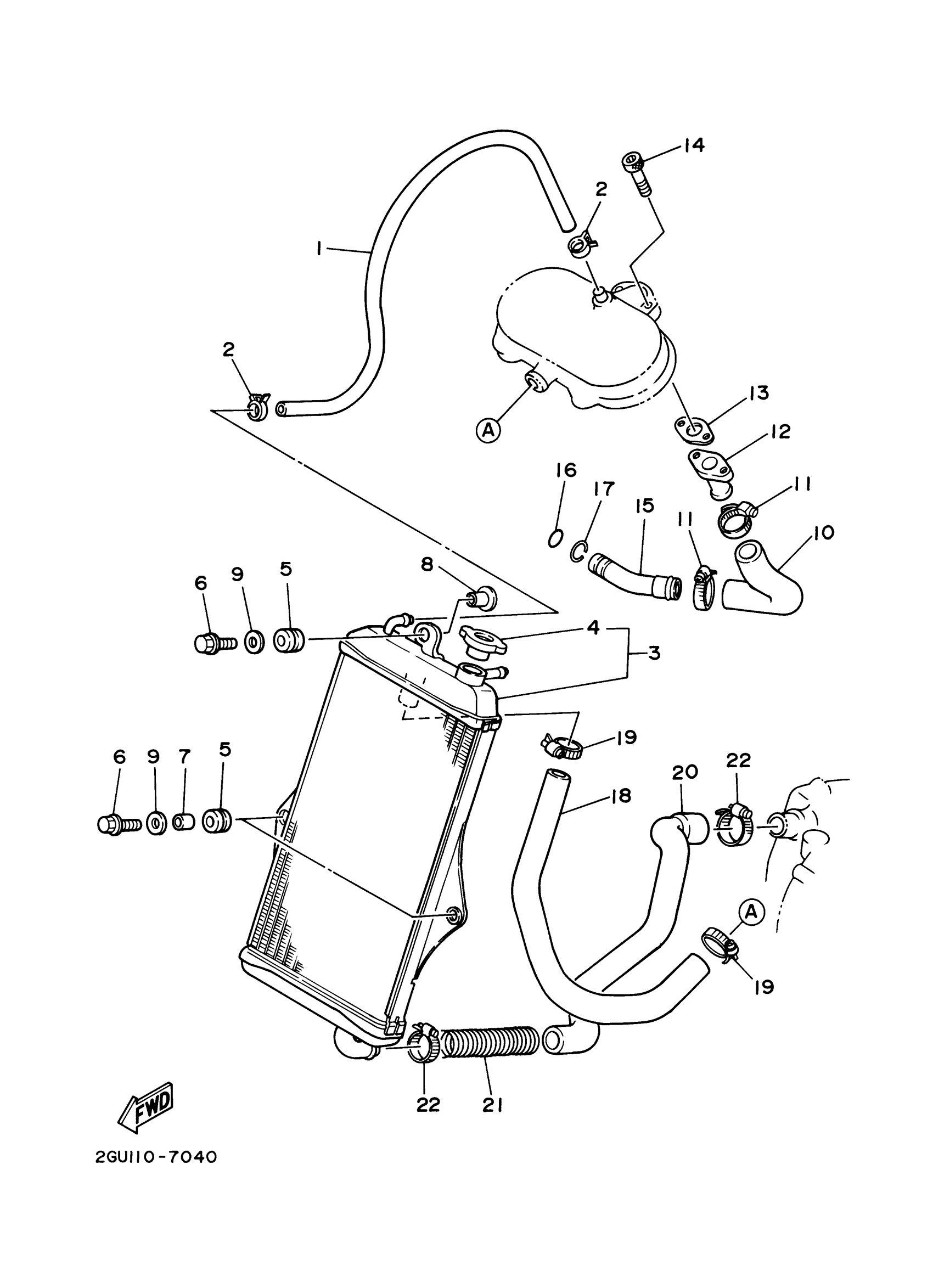

Yamaha YFZ350LES (BANSHEE - LIMITED EDITION BLACK) 5FKT 2004 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 5 (L570)

2GU-12485-00-00

$24.60

2

CLIP(3YX)

90467-13133-00

$5.13

3

RADIATOR ASSEMBLY (2GU-12460-01-00)

2GU-12461-01-00

Unavailable

4

CAP, RADIATOR

4FL-12462-00-00

$55.82

5

GROMMET(2GU)

90480-15470-00

$5.10

6

BOLT, FLANGE

95817-06025-00

$1.46

7

COLLAR

90387-07020-00

$6.17

8

COLLAR(52E)

90387-063G3-00

$6.29

9

WASHER, PLATE

90201-06086-00

$5.86

10

PIPE 1

29L-12481-00-00

$24.72

11

HOSE CLAMP ASSY

90450-32015-00

$15.23

12

JOINT

4L0-12479-00-00

$21.94

13

GASKET

3XV-12435-00-00

$6.11

14

BOLT,SOCKET

91317-06020-00

$2.11

15

JOINT 1

29L-12469-00-00

$27.05

16

O-RING (1J7)

93210-16314-00

$3.91

17

CIRCLIP (4L0)

93440-19083-00

$6.17

18

PIPE 2

2GU-12482-00-00

$50.68

19

HOSE CLAMP ASSY

90450-32015-00

$15.23

20

PIPE 4

2GU-12484-00-00

$56.34

21

COVER, WATER INLET

11H-12516-00-00

$24.51

22

HOSE CLAMP ASSY

90450-32015-00

$15.23
