Description

Price

1

REED VALVE ASSY

2GU-13610-01-00

$126.71

2

REED, VALVE

2GU-13613-00-00

$19.00

3

STOPPER, REED VALVE

2GU-13616-00-00

$8.18

4

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.74

5

WASHER, SPRING

92990-03100-00

$6.17

6

GASKET, VALVE SEAT

3GG-13621-00-00

$7.97

7

JOINT, CARBURETOR

31K-13565-01-00

$57.81

8

BOLT,SOCKET

91317-06025-00

$2.05

9

PIPE

29L-14465-00-00

$24.78

10

CLIP (23E)

90467-20085-00

$8.31

11

HOSE CLAMP ASSY(1MX)

90450-44046-00

$12.71

12

CASE, AIR CLEANER 1

2GU-14411-00-00

$57.47

13

CASE, AIR CLEANER 2

2GU-14421-01-00

$135.42

14

CAP, CLEANER CASE 1

2GU-14412-00-00

$97.41

15

ELEMENT, AIR CLEANER

2GU-14451-01-00

Unavailable

16

GUIDE

5FK-14458-00-00

$73.76

17

PLATE, ELEMENT FITTING

2GU-14468-00-00

$15.04

18

JOINT, AIR CLEANER 1

29L-14453-01-00

$19.58

19

CLAMP, HOSE (29L)

90460-68230-00

$12.54

20

SEAL

1VJ-14462-00-00

$16.08

21

SCREW, PAN TAP.2

97707-50525-00

$6.18

22

SEAL

1VJ-14462-00-00

$16.08

23

CLAMP(2GU)

90465-18312-00

$10.11

24

CLIP(2GU)

90468-05184-00

$7.32

25

DUCT

2GU-14437-00-00

$30.79

26

CLAMP, HOSE(2GU)

90460-99291-00

$25.08

27

SEAL

59V-14457-00-00

$5.65

28

CLIP (21V)

90467-22080-00

$6.17

29

GROMMET (509)

90480-18171-00

$6.55

30

BOLT, WITH WASHER (30X)

90119-06096-00

$3.65

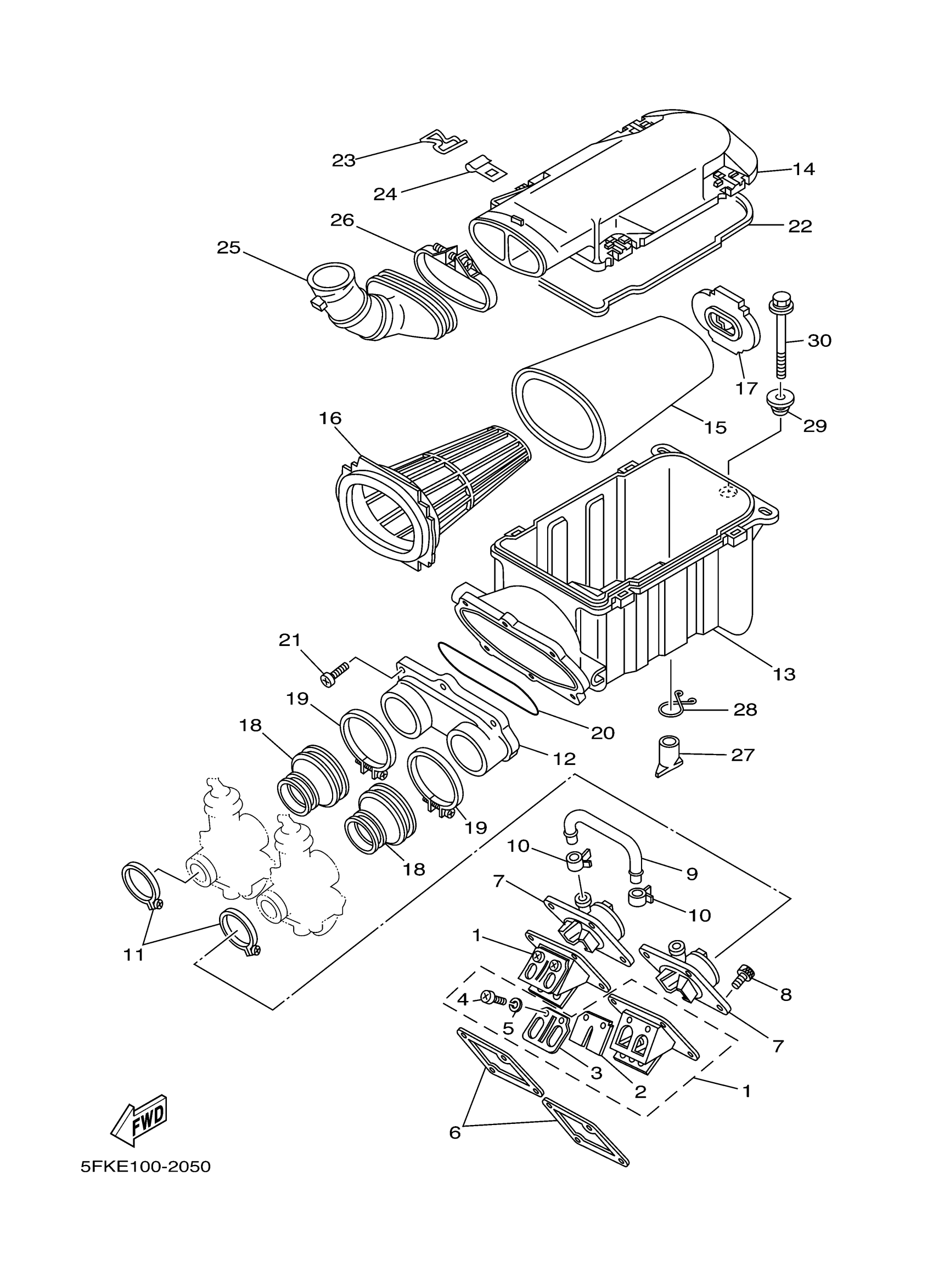

Yamaha YFZ350LES (BANSHEE - LIMITED EDITION BLACK) 5FKT 2004 INTAKE Diagram

ELEMENT, AIR CLEANER
