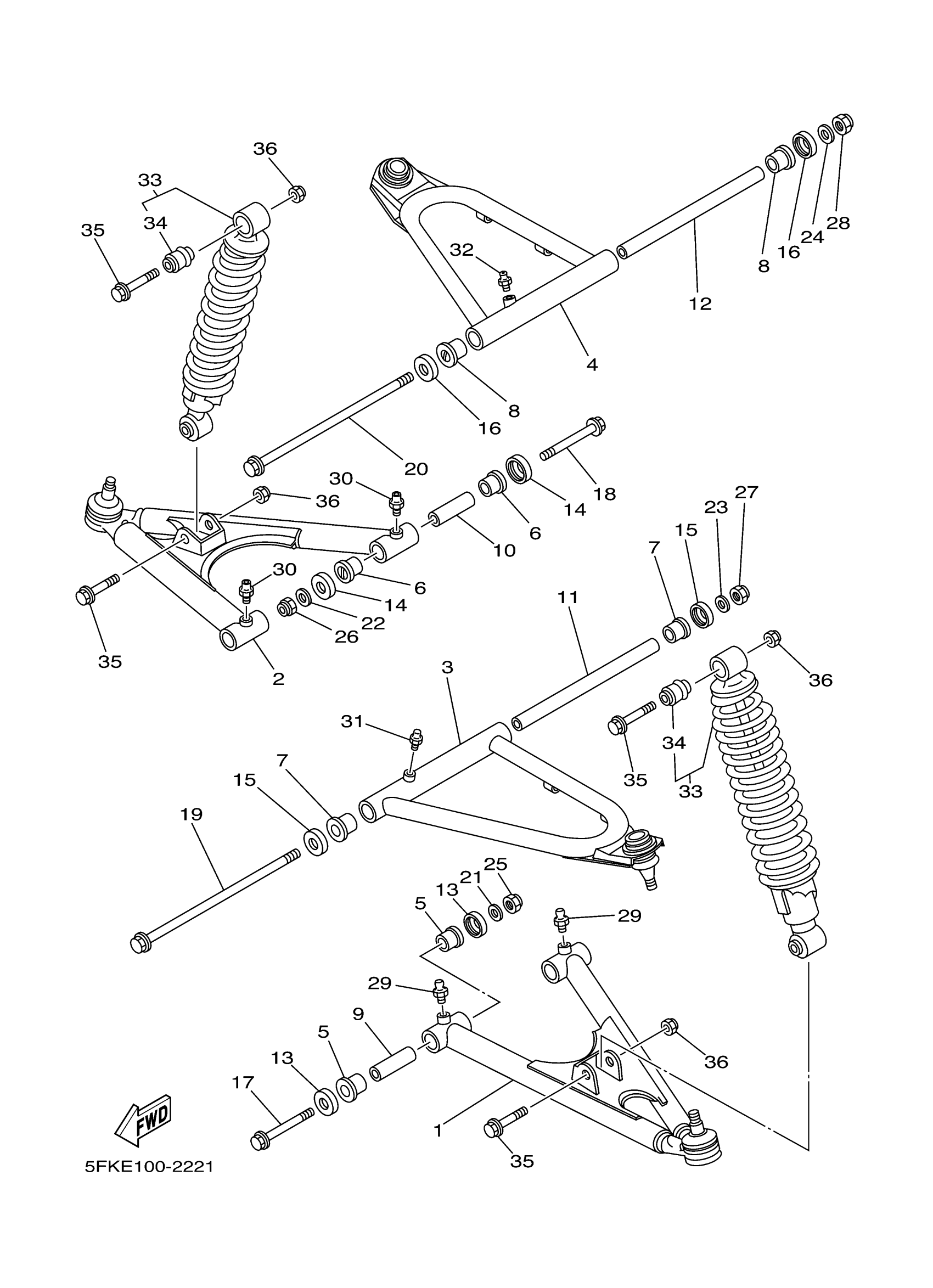

Yamaha YFZ350LES (BANSHEE - LIMITED EDITION BLACK) 5FKT 2004 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM COMP. (LEFT)

2GU-23570-00-P0

Unavailable

2

FRONT LOWER ARM COMP. (RIGHT)

2GU-23580-00-P0

Unavailable

3

FRONT UPPER ARM COMP. (LEFT)

3GG-23540-00-P0

Unavailable

4

FRONT UPPER ARM COMP. (RIGHT)

3GG-23550-00-P0

Unavailable

5

BUSH, SOLID(3GG)

90381-15088-00

$20.42

6

BUSH, SOLID(3GG)

90381-15088-00

$20.42

7

BUSH, SOLID(3GG)

90381-15088-00

$20.42

8

BUSH, SOLID(3GG)

90381-15088-00

$20.42

9

COLLAR(1UY)

90387-101R3-00

$17.22

10

COLLAR(1UY)

90387-101R3-00

$17.22

11

COLLAR(3GG)

90387-100Y6-00

$28.35

12

COLLAR(3GG)

90387-100Y6-00

$28.35

13

COVER, THRUST 1

1UY-23517-01-00

$6.38

14

COVER, THRUST 1

1UY-23517-01-00

$6.38

15

COVER, THRUST 1

1UY-23517-01-00

$6.38

16

COVER, THRUST 1

1UY-23517-01-00

$6.38

17

BOLT, WASHER BASED

90105-10034-00

$9.72

18

BOLT, WASHER BASED

90105-10034-00

$9.72

19

BOLT, WASHER BASED(3GG)

90105-10651-00

$10.78

20

BOLT, WASHER BASED(3GG)

90105-10651-00

$10.78

21

WASHER (7A9)

90201-100F7-00

$6.38

22

WASHER (7A9)

90201-100F7-00

$6.38

23

WASHER (7A9)

90201-100F7-00

$6.38

24

WASHER (7A9)

90201-100F7-00

$6.38

25

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

26

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

27

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

28

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

29

NIPPLE, GREASE

93700-06M03-00

$7.15

30

NIPPLE, GREASE

93700-06M03-00

$7.15

31

NIPPLE, GREASE

93700-06M03-00

$7.15

32

NIPPLE, GREASE

93700-06M03-00

$7.15

33

SHOCK ABSORBER ASSY

3GG-23350-20-33

Unavailable

34

DAMPER, BUSH B

59V-2331R-00-00

$20.89

35

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

36

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02
