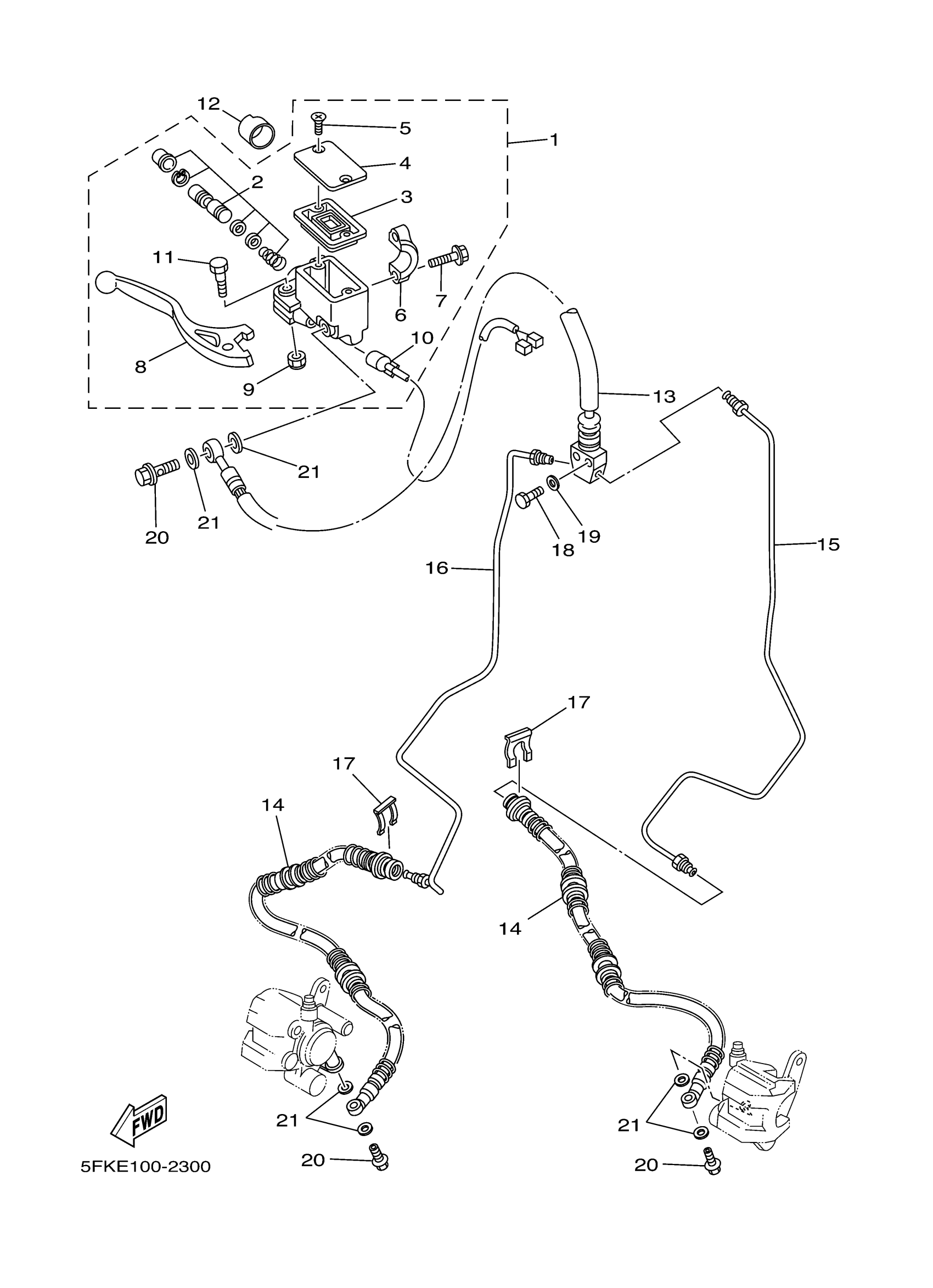

Yamaha YFZ350LES (BANSHEE - LIMITED EDITION BLACK) 5FKT 2004 FRONT MASTER CYLINDER Diagram

Description

Price

MASTER CYLINDER ASSY

5LP-2583T-03-00

$341.77

CYLINDER KIT, MASTER

5LP-W0041-00-00

$62.56

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$21.77

CAP, RESERVOIR

5LP-25852-02-00

$20.17

SCREW

3D8-2589H-10-00

$6.46

BRACKET, MASTER CYLINDER

5LP-25867-00-00

$22.96

BOLT, FITTING

5MV-25833-00-00

$5.75

LEVER 2

5LP-83922-00-00

$33.65

NUT, U(4NK)

95604-06100-00

$6.68

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$56.22

BOLT, LEVER

5MV-2589F-00-00

$5.40

COLLAR

1UY-26259-00-00

$17.31

HOSE, BRAKE 1

2GU-25872-10-00

Unavailable

HOSE, BRAKE 2

3GG-25873-21-00

$81.57

PIPE, BRAKE

2GU-25871-10-00

Unavailable

PIPE, BRAKE 2

2GU-25882-10-00

$17.41

CIRCLIP

2GU-25866-00-00

$8.70

BOLT, HEXAGON

97017-08025-00

$7.46

WASHER(6TA)

92907-08600-00

$2.52

BOLT, UNION(3GM)

90401-10159-00

$8.85

WASHER, PLATE(481)

90201-10118-00

$2.91
