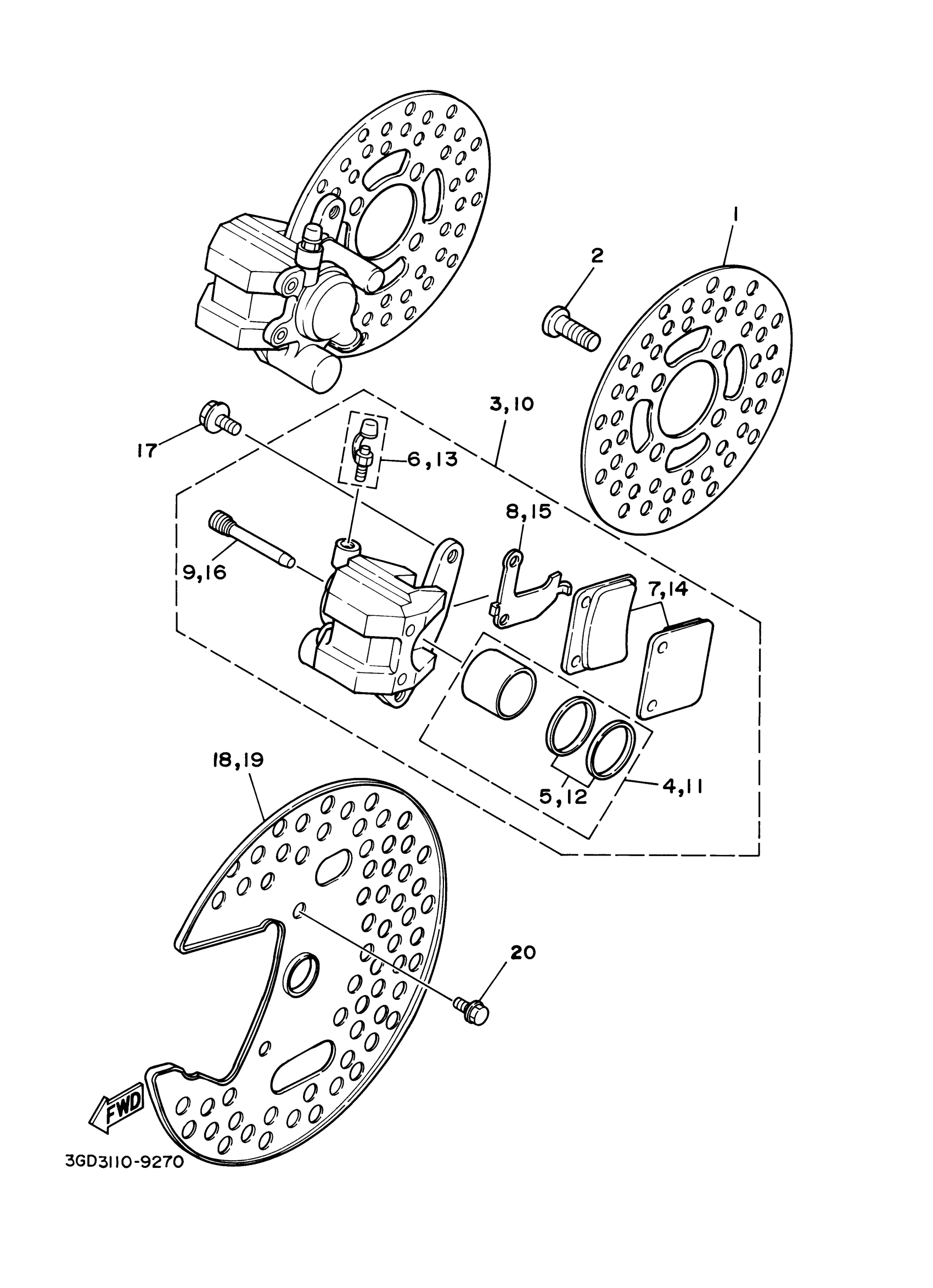

Yamaha YFZ350LES (BANSHEE - LIMITED EDITION BLACK) 5FKT 2004 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

3GD-2582T-10-00

$194.97

2

BOLT

90109-08087-00

$2.65

3

CALIPER ASSY (LEFT)

5LP-2580T-00-00

$372.23

4

PISTON ASSY, CALIPER

3GD-W0057-00-00

$57.05

5

CALIPER SEAL KIT

3GD-W0047-00-00

$13.06

6

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

7

BRAKE PAD KIT

5LP-W0045-00-00

$48.30

8

SHIM, CALIPER

3GD-25827-00-00

$9.49

9

PIN, PAD

3GD-25933-00-00

$22.89

10

CALIPER ASSY (RIGHT)

5LP-2580U-00-00

$372.23

11

PISTON ASSY, CALIPER

3GD-W0057-00-00

$57.05

12

CALIPER SEAL KIT

3GD-W0047-00-00

$13.06

13

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

14

BRAKE PAD KIT

5LP-W0045-00-00

$48.30

15

SHIM, CALIPER

3GD-25828-00-00

$3.80

16

PIN, PAD

3GD-25933-00-00

$22.89

17

BOLT, FLANGE

95817-08014-00

$1.94

18

RING, WHEEL 1

3GD-2514A-10-00

$50.68

19

RING, WHEEL 2

3GD-2515A-10-00

$49.89

20

BOLT, FLANGE

95817-06010-00

$3.91
