Description

Price

1

GEAR, PRIMARY DRIVE

4L0-16111-00-00

Unavailable

2

KEY, STRAIGHT (584)

90282-07023-00

$8.31

3

WASHER (517 CLUTCH)

90208-16019-00

$4.70

4

NUT

90170-16425-00

$6.60

5

PRIMARY DRIVEN GEAR COMP.

31K-16150-11-00

Unavailable

6

BOSS, CLUTCH

1A0-16371-00-00

$68.89

7

PLATE, FRICTION

5Y1-16331-01-00

$25.90

8

PLATE, CLUTCH 2

498-16325-10-00

Unavailable

9

PLATE, PRESSURE 1

29L-16351-00-00

$40.38

10

ROD, PUSH

29L-16356-00-00

$17.25

11

SCREW (3R4)

90149-08143-00

$15.43

12

WASHER(6TC)

92907-08200-00

$6.18

13

NUT, HEXAGON SMALL

95317-08700-00

$7.05

14

SPRING COMPRESSION168163330000

90501-23138-00

$5.31

15

SCREW, WITH WASHER (1W4)

90159-06016-00

$2.80

16

PLATE, THRUST

360-16154-00-00

$18.65

17

RING, CUSHION

278-16367-00-00

$20.63

18

SPACER

278-16181-01-00

$37.21

19

PLATE, THRUST

360-16154-00-00

$18.65

20

WASHER, LOCK (29L)

90215-20223-00

$4.28

21

NUT, HEXAGON (29L)

90170-20320-00

$13.43

22

BALL (1M1)

93515-32029-00

$2.77

23

ROD, PUSH 2

29L-16357-00-00

$18.09

24

PUSH LEVER ASSY

29L-16380-00-00

$60.97

25

OIL SEAL (17X28X6-101)

93102-17004-00

$9.85

26

BRG,CYL-CAL ROLLER 10G KY

93315-11720-00

$27.57

27

WASHER PLATE 168217580000

90201-18262-00

$6.29

28

SPRING, TORSION (29L)

90508-16599-00

$6.80

29

CLAMP (29L)

90465-16239-00

$13.63

30

BOLT(3JP)

97017-06010-00

$2.62

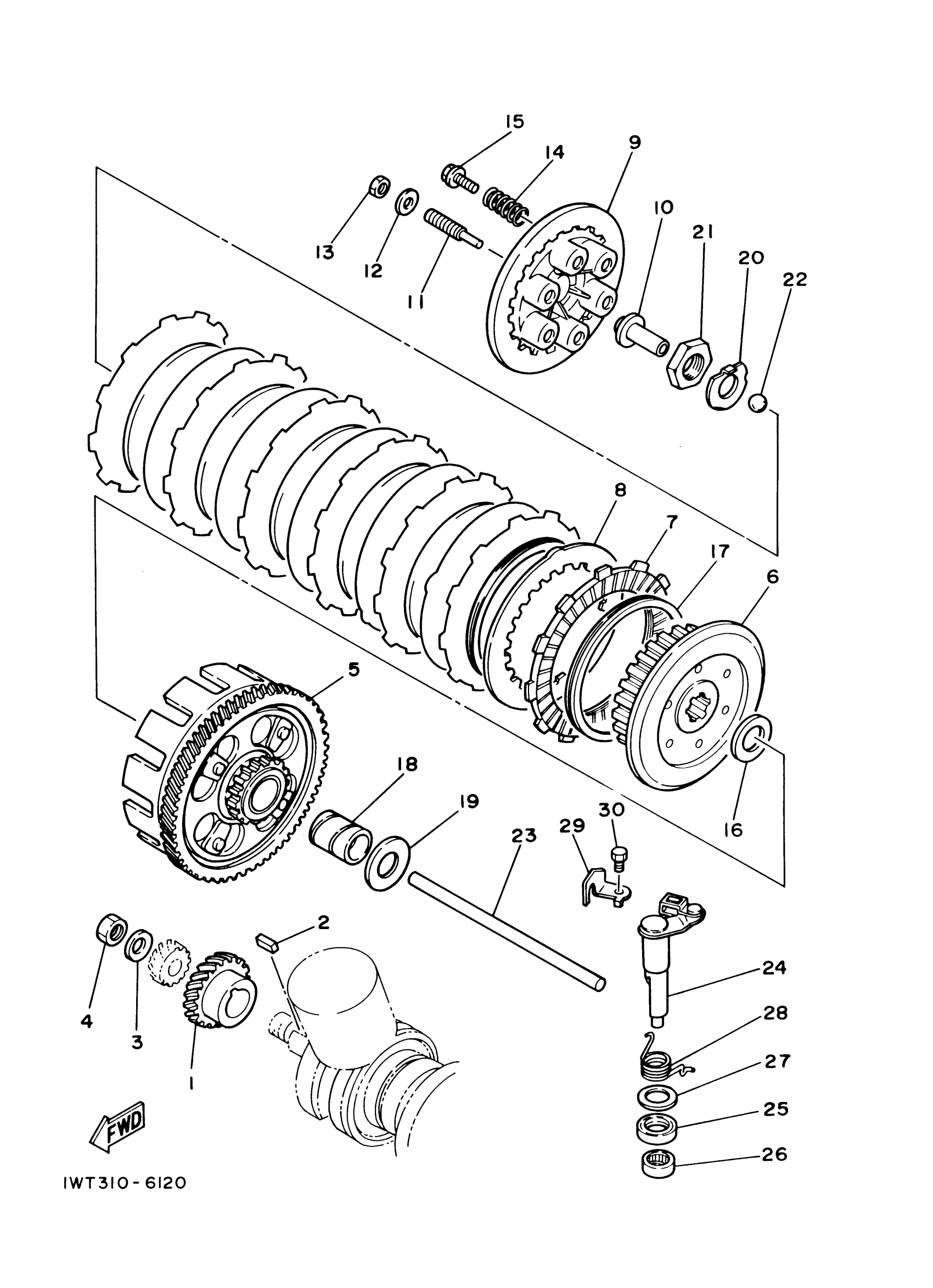

Yamaha YFZ350LES (BANSHEE - LIMITED EDITION BLACK) 5FKT 2004 CLUTCH Diagram

GEAR, PRIMARY DRIVE

PRIMARY DRIVEN GEAR COMP.

PLATE, CLUTCH 2
