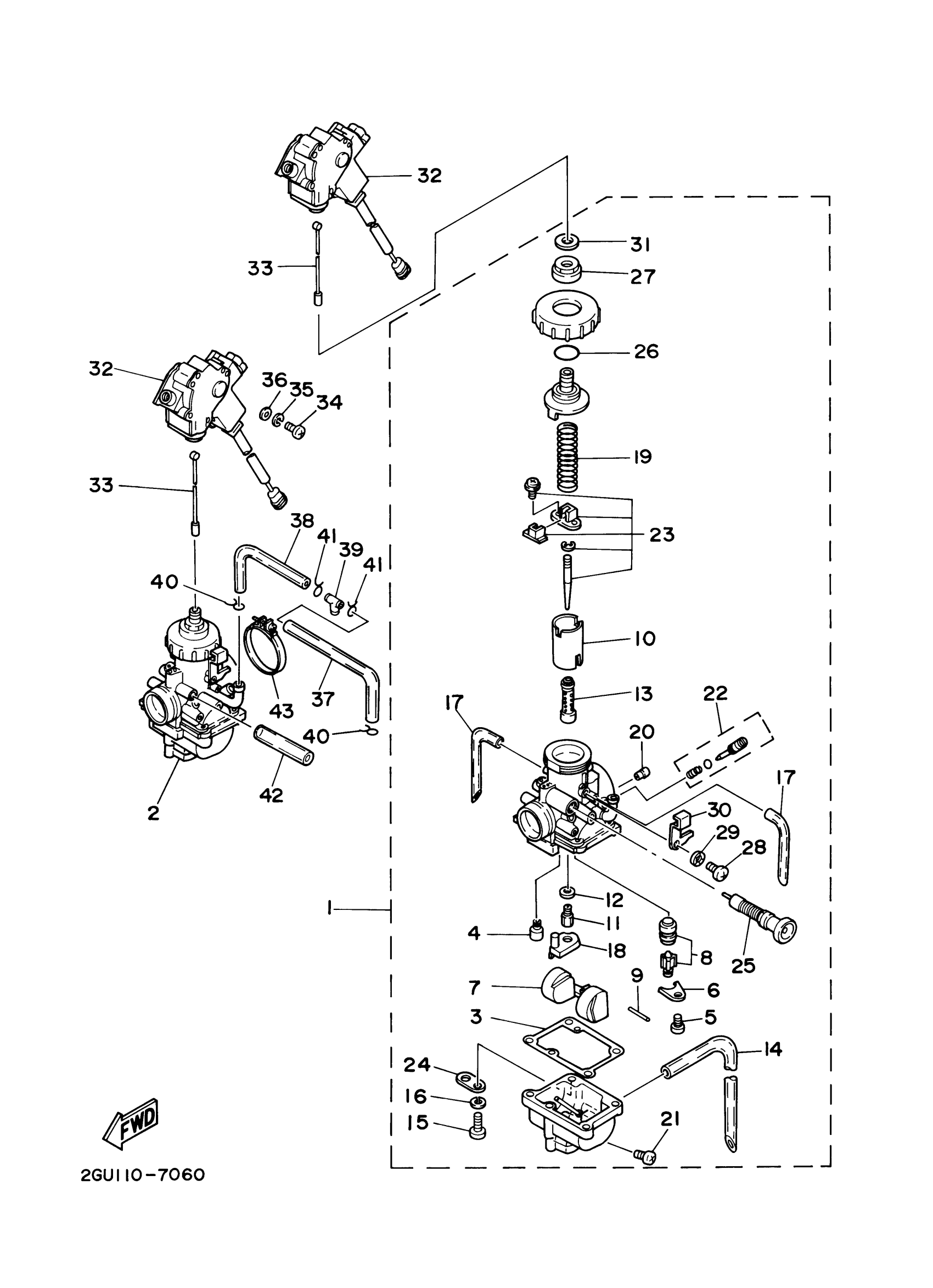

Yamaha YFZ350LES (BANSHEE - LIMITED EDITION BLACK) 5FKT 2004 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

2GU-14101-01-00

$350.37

2

CARBURETOR ASSY 2

2GU-14102-01-00

$350.37

3

GASKET,FLOAT CHAMBER

304-14184-00-00

$12.00

4

JET, PILOT (# 25)

260-14142-25-00

$7.10

5

SCREW, PAN HEAD (713)

98580-04008-00

$4.54

6

. PLATE

2H0-14146-00-00

$7.23

7

FLOAT

4L0-14185-00-00

$47.09

8

NEEDLE VALVE ASSY

1UA-14190-28-00

$38.01

9

PIN, FLOAT

537-14186-00-00

$7.28

10

VALVE, THROTTLE 1

2GU-14112-20-00

$154.77

10

VALVE, THROTTLE 2

2GU-14113-20-00

$161.32

11

JET,MAIN #190

137-14143-38-A0

$8.31

11

JET, MAIN #200

137-14143-40-A1

$10.92

11

JET, MAIN #220

137-14143-44-A1

$10.92

11

JET, MAIN #240

137-14143-48-A1

$9.03

12

WASHER,MAIN JET

137-14153-00-00

$6.45

13

NOZZLE, MAIN

4L0-14141-38-00

$31.95

14

HOSE (L1500)

90445-084J0-00

$16.40

15

SCREW, PAN HEAD

98517-04016-00

$6.18

16

YBS67-4 WASHER, SPRING

92990-04100-00

$0.60

17

PIPE

4L0-14197-00-00

$14.25

18

RING

2GU-14153-00-00

$17.38

19

SPRING, THROTTLE VALVE

2GU-14131-00-00

$21.94

20

PILOT JET, AIR (#1.6)

239-14172-16-00

$7.85

21

PLUG, DRAIN

12R-14191-00-00

$14.25

22

AIR SCREW SET

10W-14104-00-00

$11.18

23

NEEDLE SET

2GU-1490J-00-00

$24.44

24

PLATE

500-14146-00-00

$6.67

25

PLUNGER, STARTER

2GU-14171-00-00

$83.94

26

O-RING (541)

558-14147-00-00

$7.54

27

. NUT, CABLE ADJUSTING

2GU-14161-00-00

Unavailable

28

GASKET, EXHAUST

98507-05008-00

$2.69

29

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

30

PLATE

2GU-14146-00-00

$19.03

30

PLATE

2GU-14243-00-00

$19.17

31

WASHER

256-14954-00-00

Unavailable

32

SWITCH ASSY

3GG-8259E-00-00

$451.95

33

WIRE, INNER 1

2GU-2633K-00-00

$25.46

34

SCREW, PAN HEAD(3HH)

98507-03010-00

$2.69

35

WASHER, SPRING

92990-03100-00

$6.17

36

WASHER(3SX)

92907-03600-00

$6.69

37

PIPE, FUEL 1

29L-24311-00-00

$24.45

38

PIPE, FUEL 1

48H-24311-00-00

$15.04

39

WAY 3(7U6)

90413-08009-00

$16.00

40

CLIP

90467-100A1-00

$6.38

41

CLIP(1JH)

90467-11106-00

$2.72

42

HOSE (L420)

90445-092K1-00

$10.63

43

CLAMP HOSE 278144550000

90460-49058-00

$6.72
