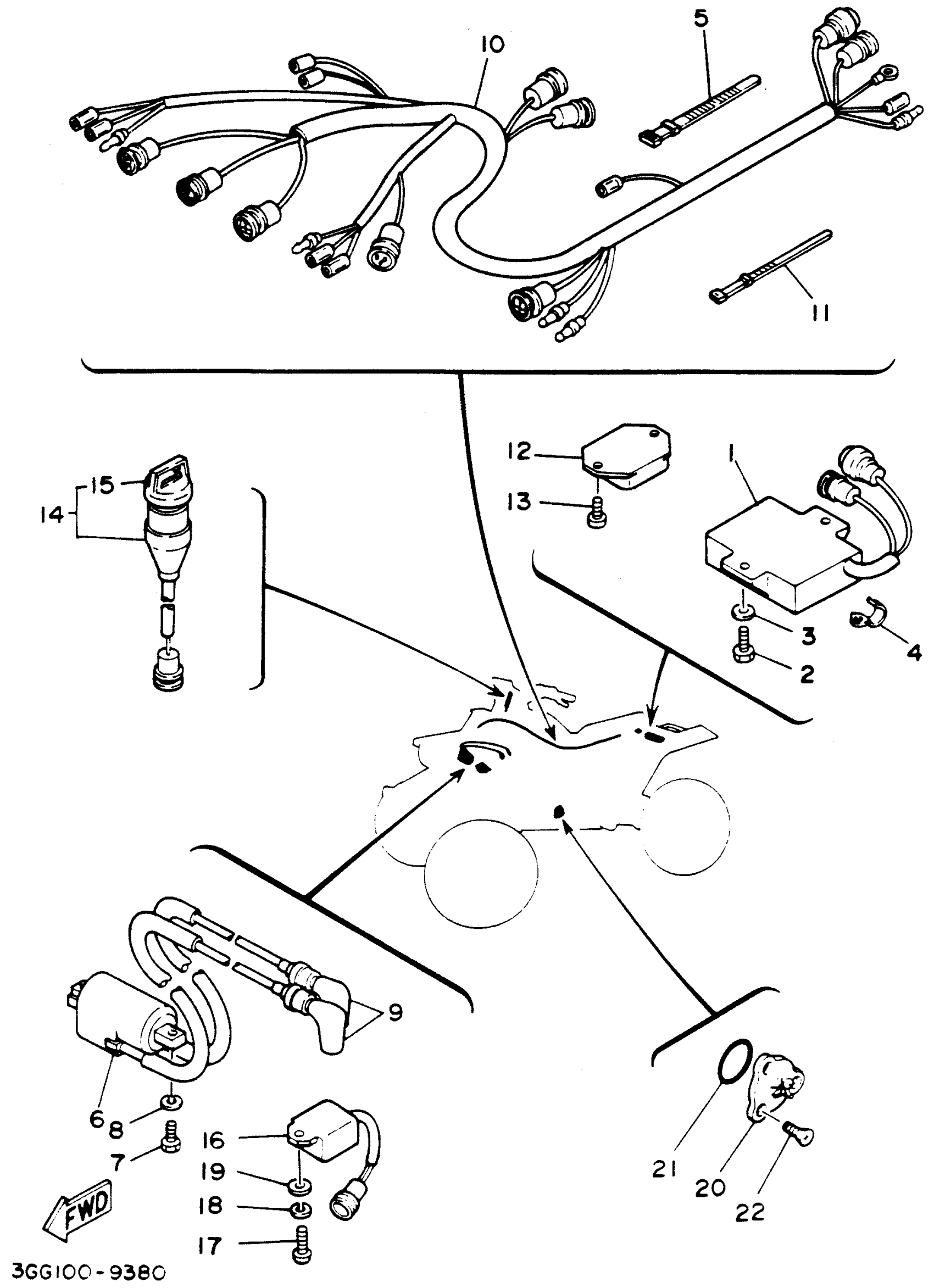

Yamaha YFZ350F (BANSHEE) 1994 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSEMBLY

2GU-85540-51-00

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

3

WASHER, PLAIN (646)

92990-06600-00

$1.84

4

CLAMP (4G0)

90462-08078-00

$4.82

5

BAND, SWITCH CORD

437-83936-01-00

$4.56

6

IGNITION COIL ASSY

3LC-82310-01-00

$172.51

7

BOLT, HEXAGON

97017-06020-00

$2.37

8

WASHER, SPRING

92995-06100-00

$2.95

9

PLUG CAP ASSY

8DG-82370-00-00

$41.54

10

WIRE HARNESS ASSEMBLY

2GU-82590-10-00

Unavailable

11

BAND, SWITCH CORD

437-83936-11-00

$3.34

12

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$46.16

13

BOLT (3H6)

90109-06557-00

$1.97

14

MAIN SWITCH ASSY

1UY-82510-09-00

Unavailable

15

CAP, KEY

3HN-82579-00-00

$11.48

16

CONTROL UNIT ASSEMBLY

2GU-85590-M0-00

Unavailable

17

SCREW PAN HEAD

98580-06020-00

Unavailable

18

WASHER, SPRING

92995-06100-00

$2.95

19

WASHER, PLAIN (646)

92990-06600-00

$1.84

20

NEUTRAL SWITCH ASSY

1L9-82540-00-00

Unavailable

21

O-RING (371)

93210-29196-00

Unavailable

22

SCREW, FLAT

98707-05012-00

Unavailable
