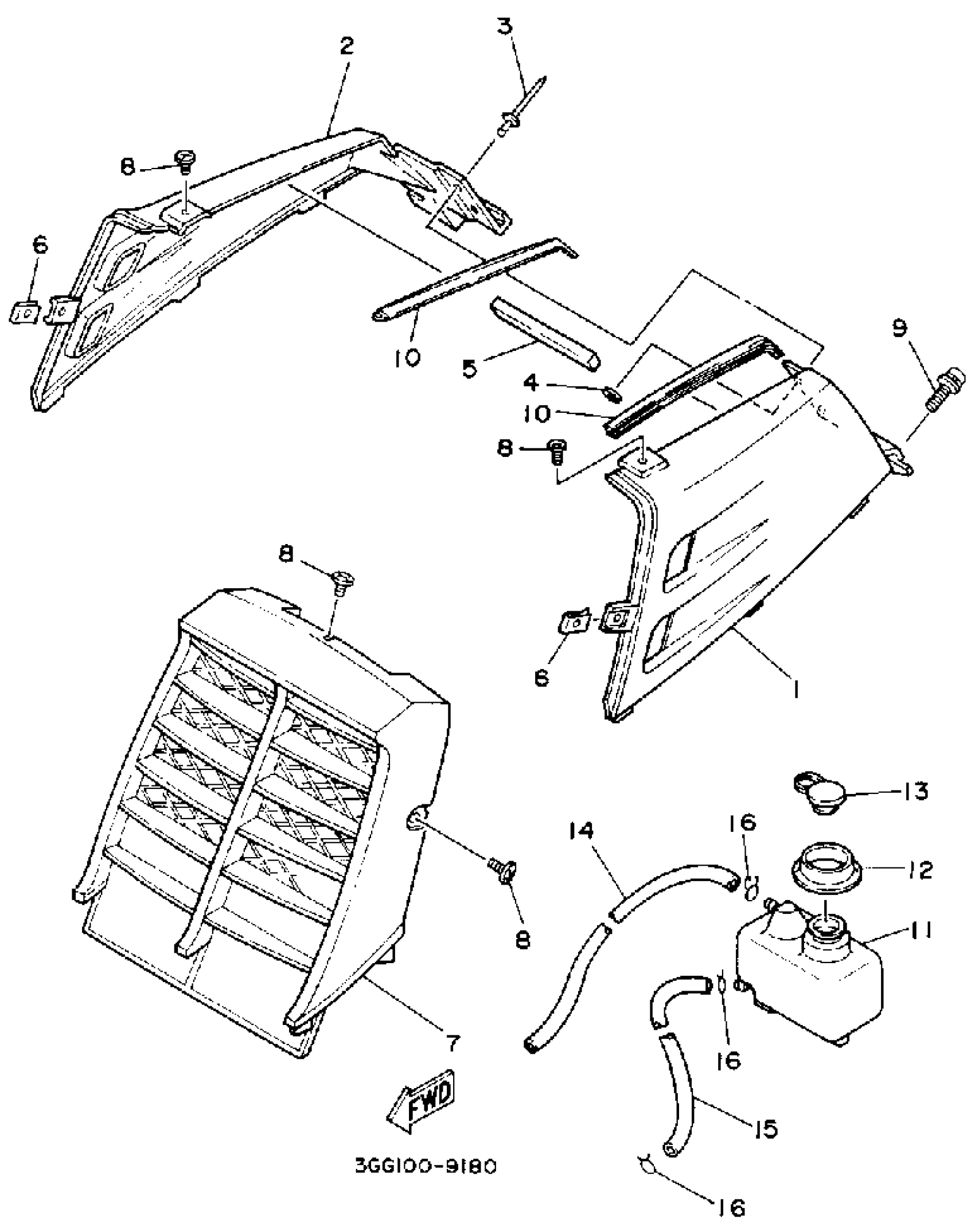

Yamaha YFZ350D (BANSHEE) 1992 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

2GU-21711-30-00

Unavailable

2

COVER, SIDE 2

2GU-21721-30-00

Unavailable

3

RIVET, BLIND (8K1)

90267-40076-00

$6.17

4

WASHER, PLATE (8M6)

90201-047A2-00

$2.78

5

DAMPER

2GU-21747-00-00

$7.21

6

NUT, SPRING

90183-051A0-00

$2.66

7

PANEL, FRONT

2GU-23391-30-00

Unavailable

8

SCREW, BINDING (10V)

90154-05013-00

$4.71

9

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

$6.46

10

MOLE, SIDE COVER 1

4WV-2171L-00-00

$6.49

11

TANK, RECOVERY

2GU-21871-00-00

$41.90

12

GROMMET(38W)

90480-48399-00

$11.77

13

CAP

10V-21875-00-00

$18.23

14

HOSE (L1500)

90445-090F6-00

$25.29

15

HOSE (L1500)

90445-090F6-00

$25.29

16

CLIP 101235600

90467-08003-00

Unavailable
