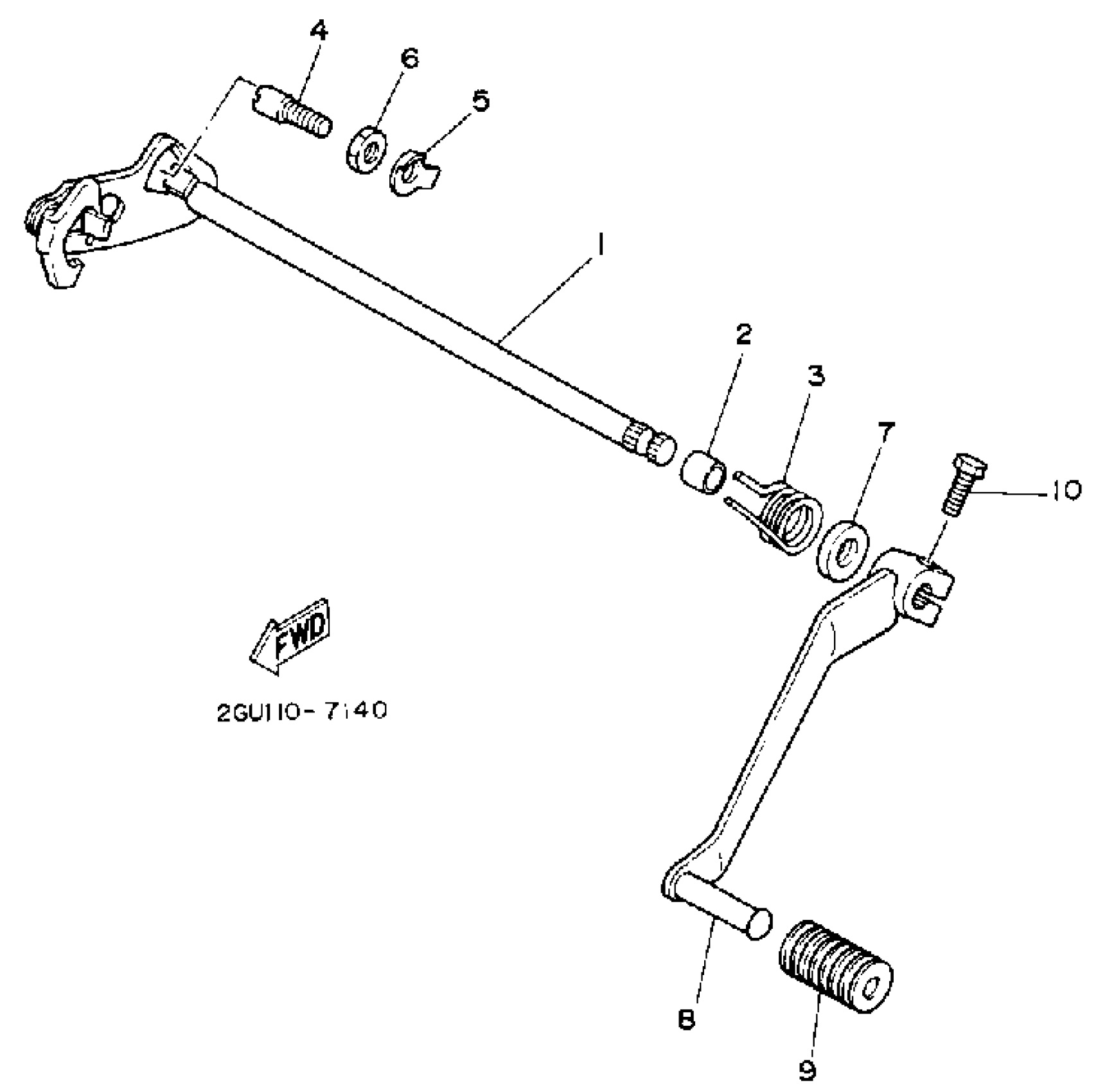

Yamaha YFZ350D (BANSHEE) 1992 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

2GU-18101-00-00

$70.67

2

SPACER

90560-12171-00

Unavailable

3

SPRING, TORSION (2K7)

90508-32374-00

$5.68

4

SCREW(2GU)

90149-08256-00

$14.05

5

WASHER, LOCK (4L0)

90215-08174-00

$6.92

6

NUT (583)

90170-08193-00

$2.94

7

SEAL, OIL (30X)

93102-12321-00

$10.14

8

SHIFT PEDAL ASSY

2GU-18110-10-00

$38.29

9

COVER, CHANGE PEDAL

132-18113-01-00

$6.38

10

BOLT, HEXAGON

97017-08020-00

$6.38
