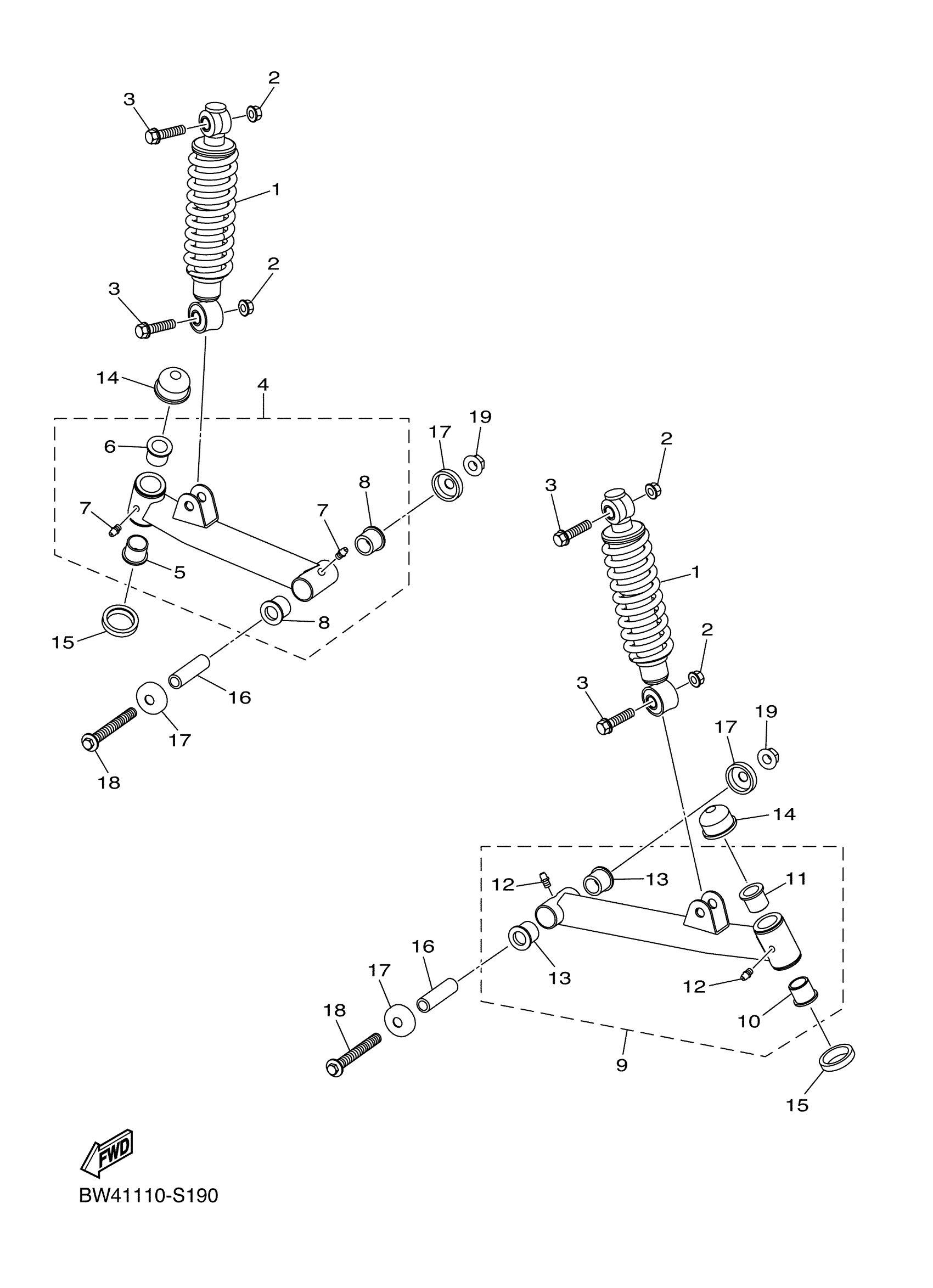

Yamaha YFZ05YYXTG (YFZ50) BW4X1 2026 FRONT SUSPENSION & WHEEL Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY

BW4-F3350-00-00

$115.99

2

NUT 2

BW4-F3834-00-00

$4.25

3

BOLT

BD3-F4834-10-00

$7.14

4

FRONT LOWER ARM COMP. (RIGHT)

BW4-F3580-10-00

Unavailable

5

BUSH 1

BD3-F639L-00-00

$6.89

6

BUSH 2

BD3-F639M-00-00

$4.72

7

NIPPLE

BD3-F135J-10-00

$4.42

8

BUSH

BYS-F3526-00-00

$3.26

9

FRONT LOWER ARM COMP. (LEFT)

BW4-F3570-10-00

Unavailable

10

BUSH 1

BD3-F639L-00-00

$6.89

11

BUSH 2

BD3-F639M-00-00

$4.72

12

NIPPLE

BD3-F135J-10-00

$4.42

13

BUSH

BYS-F3526-00-00

$3.26

14

COVER, THRUST 2

BW4-F2129-00-00

$8.31

15

SEAL, DUST 1

BD3-F3527-00-00

$4.11

16

COLLAR 2

BW4-F3364-00-00

$27.71

17

COVER, THRUST 1

BD3-F3517-00-00

$13.06

18

BOLT, MAIN STAND

BW4-F7117-00-00

$19.66

19

NUT 2

BD3-F3834-10-00

$2.98
