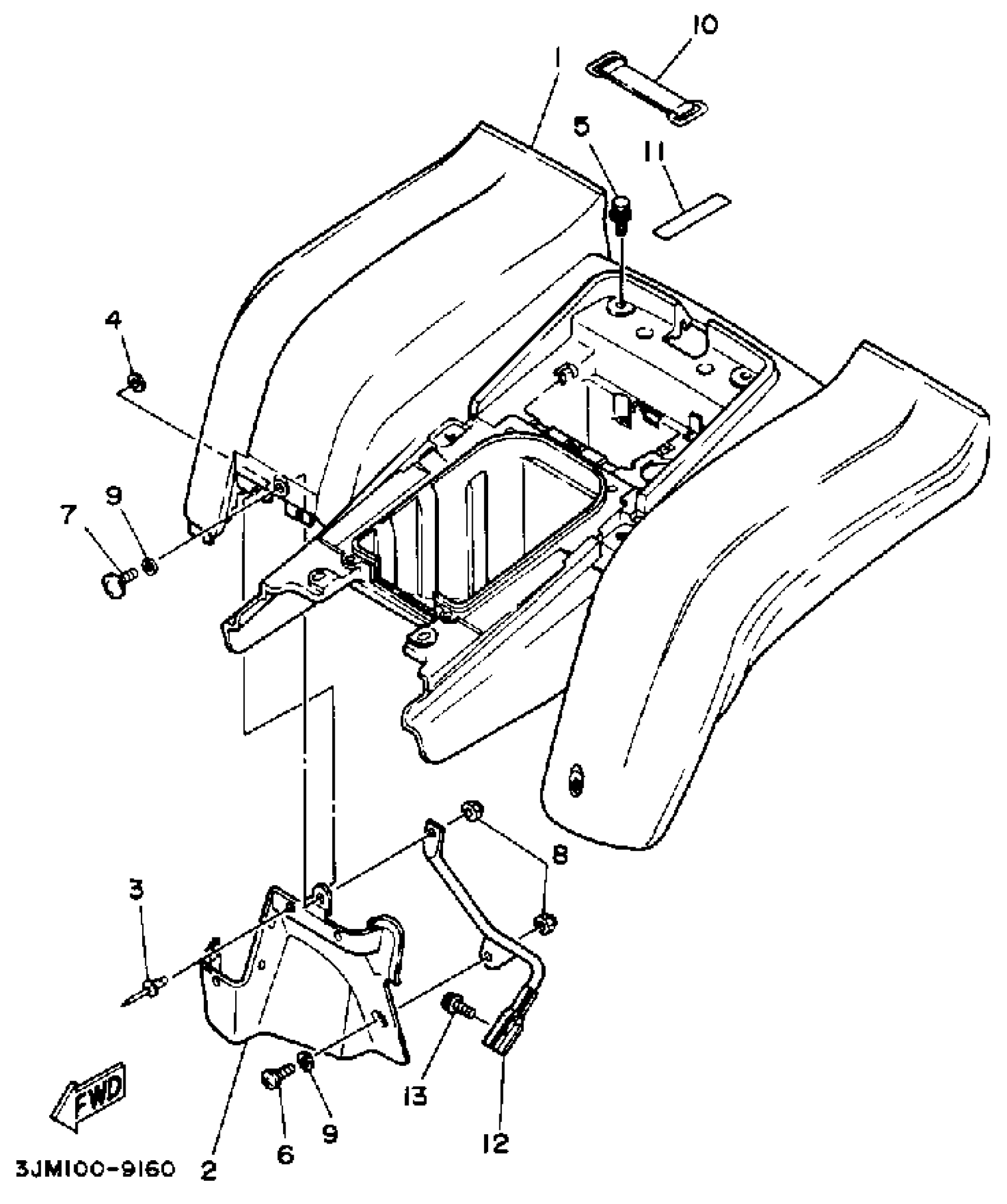

Yamaha YFS200W (BLASTER) 1989 REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR

2XJ-W2161-71-00

Unavailable

1

FENDER, REAR

2XJ-W2161-21-00

Unavailable

2

FLAP

2XJ-21621-00-00

Unavailable

3

RIVET (856)

90267-48014-00

$2.90

4

WASHER, PLATE

90201-04027-00

$1.75

5

BOLT, WITH WASHER

90119-06152-00

$2.56

6

SCREW(3JM)

90149-06306-00

$2.76

7

SCREW, ROUND HEAD(3JM)

90150-06037-00

$5.96

8

NUT, SELF-LOCKING

95617-06100-00

$2.17

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

10

BAND, BATTERY

2T4-82131-00-00

$7.40

11

O-RING(2HT)

93210-61750-00

$6.22

12

STAY, FENDER 2

2XJ-21614-00-00

Unavailable

13

BOLT, BUTTON HEAD

92017-08012-00

$5.76
