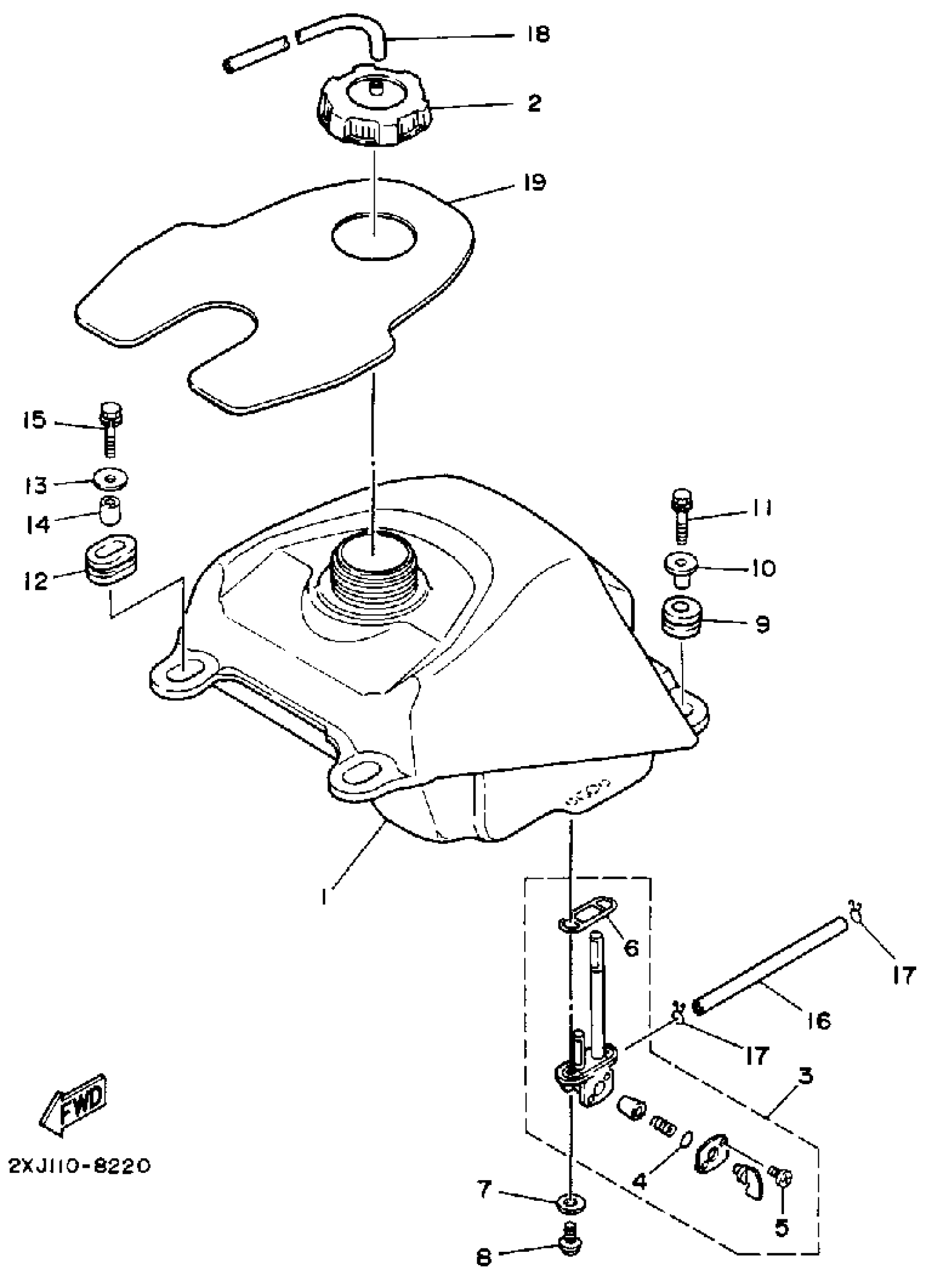

Yamaha YFS200W (BLASTER) 1989 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

2XJ-24110-00-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$49.24

3

FUEL COCK ASSY 1

36R-24500-01-00

$62.23

4

O-RING

4X8-24534-00-00

$10.74

5

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

6

O-RING

4X8-24512-00-00

$6.25

7

WASHER, PLATE(3MB)

90202-05187-00

$1.01

8

SCREW 256241430000

90149-06011-00

$1.56

9

GROMMET (4V1)

90480-18290-00

$6.54

10

COLLAR (29U)

90387-066H4-00

$5.86

11

BOLT, WITH WASHER (24X)

90119-06073-00

$5.75

12

GROMMET(38W)

90480-01400-00

$9.40

13

WASHER, PLATE

90201-06090-00

$4.82

14

COLLAR (1T2)

90387-07598-00

$4.51

15

BOLT, WITH WASHER (24X)

90119-06073-00

$5.75

16

HOSE (L200)

90445-10752-00

Unavailable

17

CLIP

90467-090A2-00

Unavailable

18

HOSE (L1500)

90445-090F6-00

Unavailable

19

DAMPER, PLATE 1

2XJ-2414H-01-00

Unavailable
