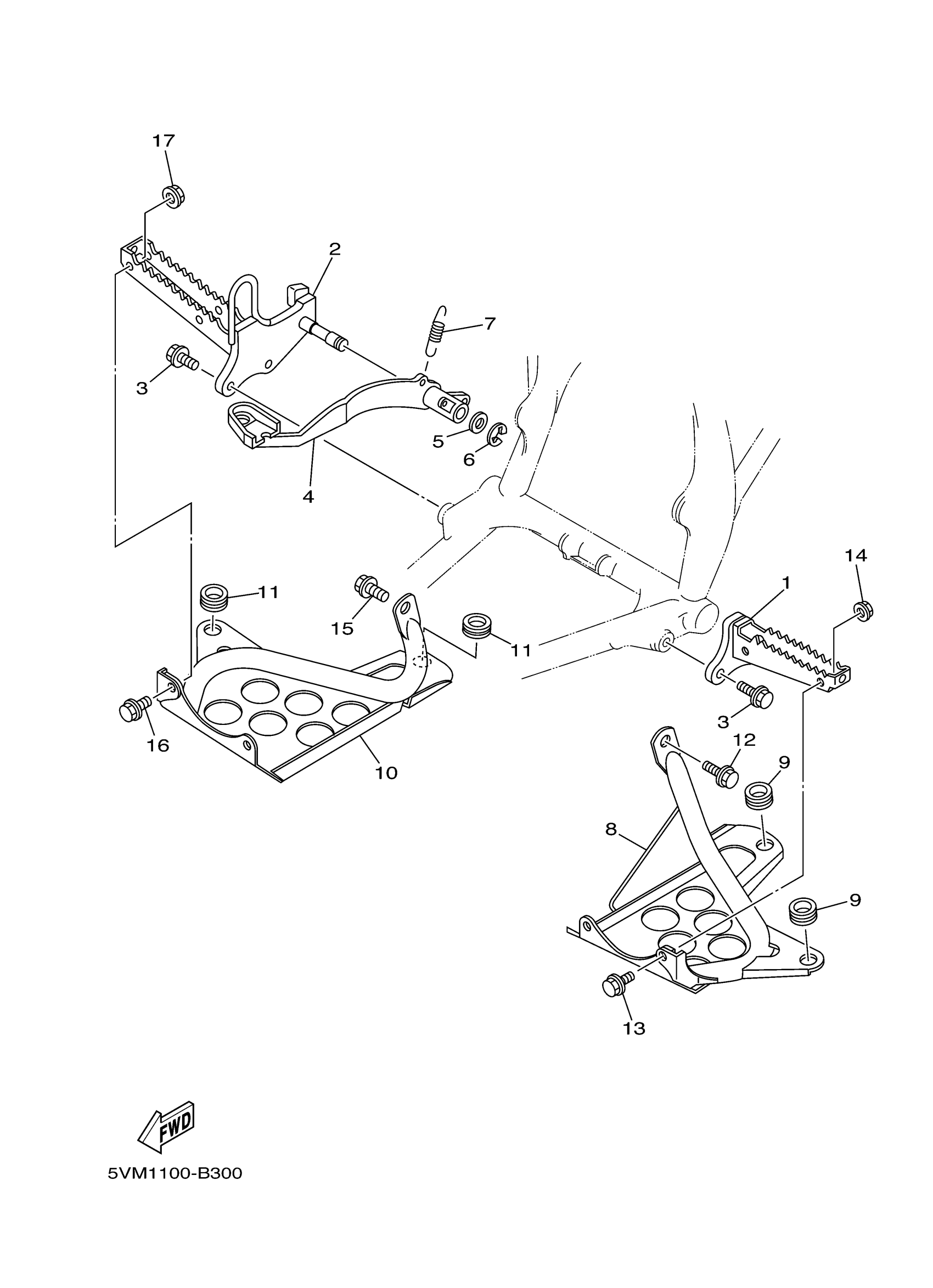

Yamaha YFS200V (BLASTER) 5VM7 2006 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

5KJ-27411-00-00

Unavailable

2

FOOTREST 2

5VM-27421-00-00

Unavailable

3

BOLT, FLANGE(3GD)

95817-10025-00

$6.08

4

PEDAL, BRAKE

5VM-27211-10-00

$59.76

5

WASHER, PLATE (3X3)

90201-15797-00

$5.98

6

CIRCLIP (122)

93430-12008-00

$5.27

7

SPRING, TENSION(1FN)

90506-20380-00

$6.49

8

PLATE 1

3JM-27445-00-00

Unavailable

9

GROMMET

90480-18411-00

$8.51

10

PLATE 2

3JM-27446-00-00

Unavailable

11

GROMMET

90480-18411-00

$8.51

12

BOLT, FLANGE(JN5)

95817-08016-00

$3.93

13

BOLT, BUTTON

92017-08016-00

$4.65

14

NUT, FLANGE(JN5)

95707-08500-00

$1.49

15

BOLT, FLANGE(JN5)

95817-08016-00

$3.93

16

BOLT, BUTTON

92017-08016-00

$4.65

17

NUT, FLANGE(JN5)

95707-08500-00

$1.49
