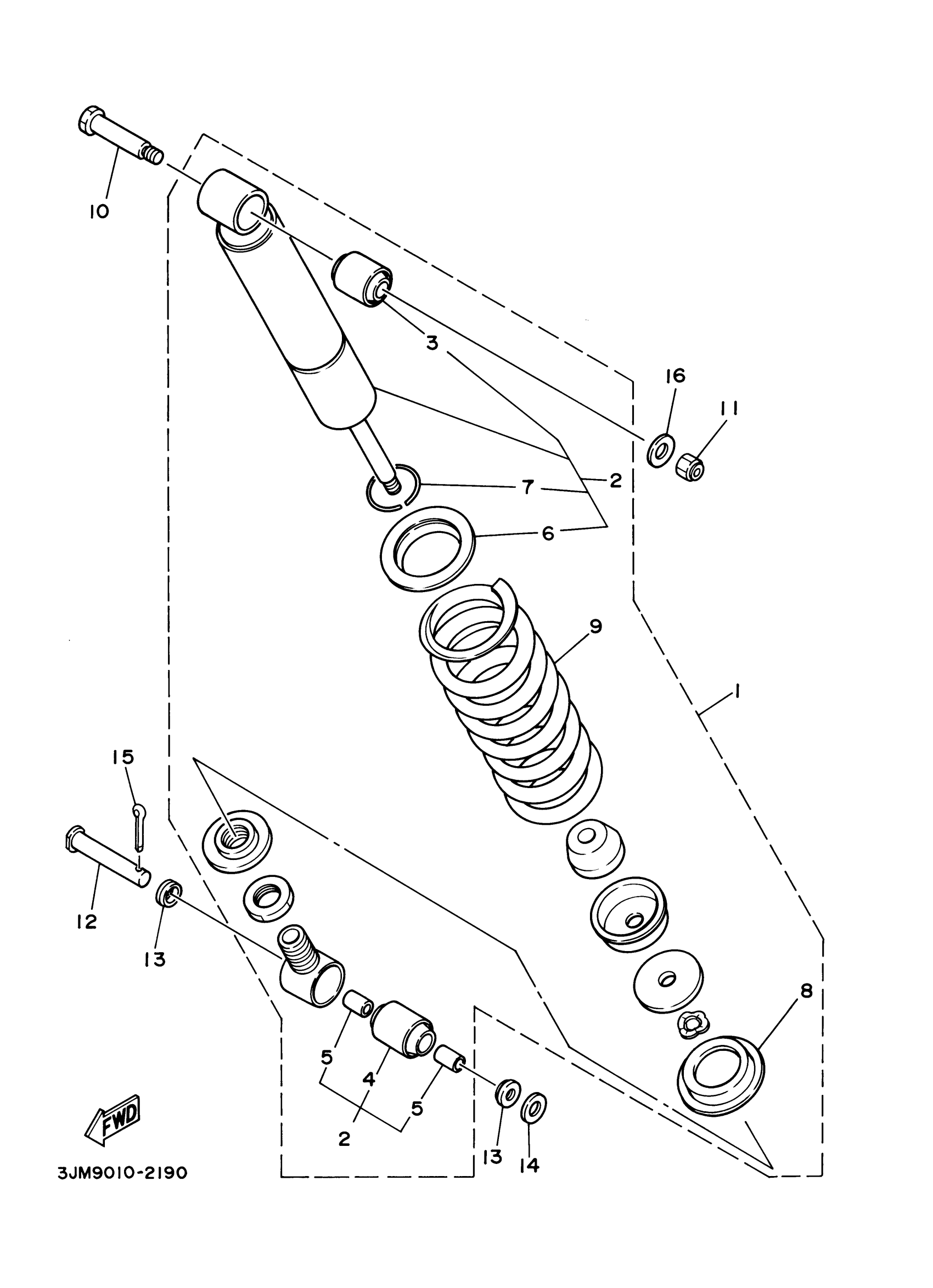

Yamaha YFS200V (BLASTER) 5VM7 2006 REAR SUSPENSION Diagram

SHOCK ABSORBER ASSY

2XJ-22210-20-36

Unavailable

DAMPER SUB-ASSY

2XJ-22201-20-00

Unavailable

BUSH, REAR SHOCK ABSORBER

1NU-22216-00-00

$31.11

.. BUSH, SHOCK ABSORBER LOWER

1NU-22226-00-00

Unavailable

BUSH, SOLID (1M1)

90380-12051-00

$12.23

. SEAT, SPRING LOWER

22W-22223-00-00

Unavailable

CIRCLIP (5X2)

93440-42101-00

$2.58

GUIDE, SPRING 1

3P6-22214-10-00

$13.78

. SPRING

2XJ-22212-00-36

Unavailable

BOLT

90109-10736-00

Unavailable

NUT, U

95617-10100-00

$5.76

PIN, CLEVIS (10V)

90240-12092-00

$7.32

COVER, THRUST

1W1-22128-00-00

$16.83

WASHER(6TA)

92907-12600-00

$1.15

PIN, COTTER

91401-30025-00

$6.09

WASHER, PLATE (26H)

90201-102G9-00

Unavailable
