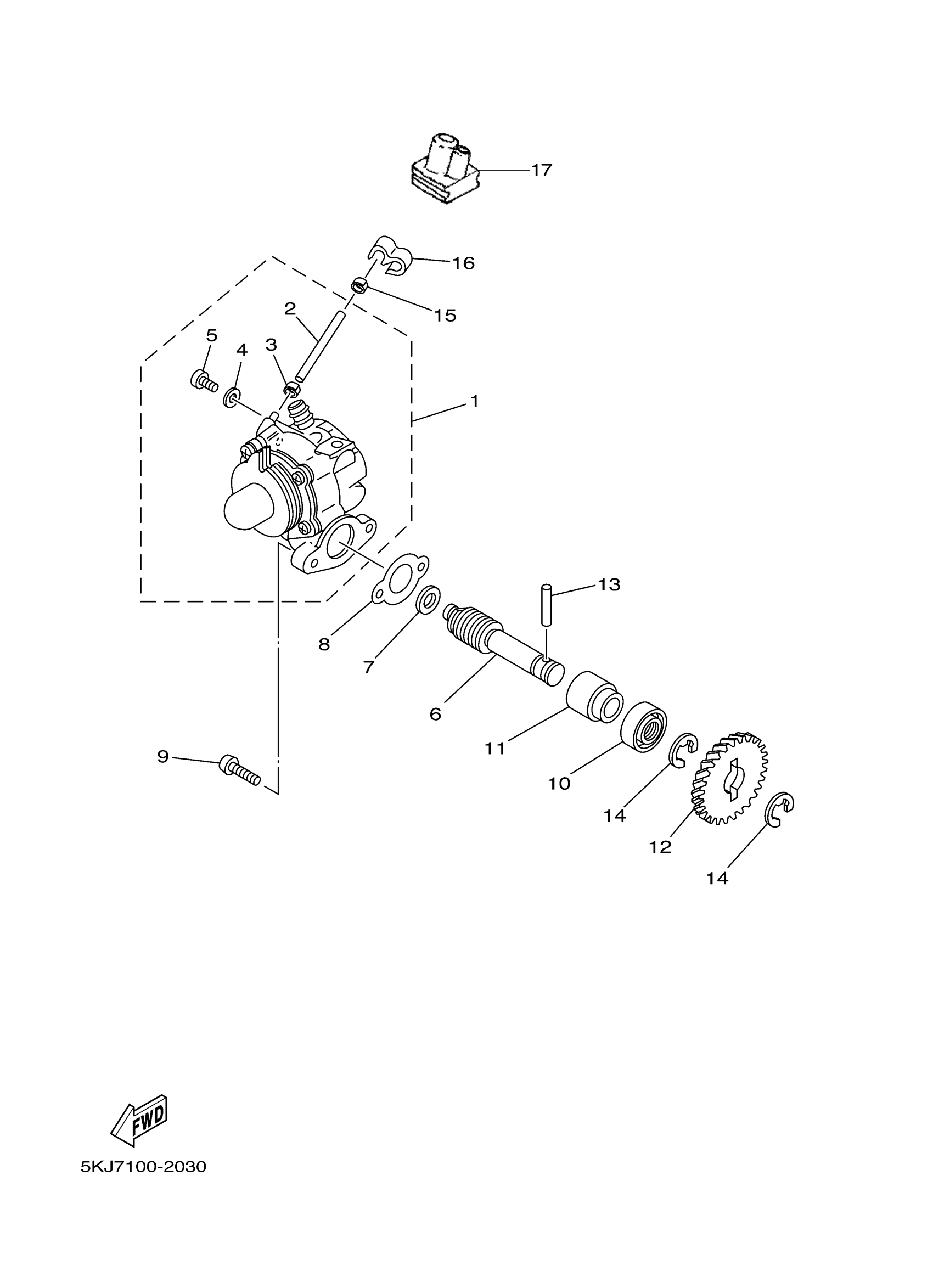

Yamaha YFS200SEV (BLASTER SE) 5VM9 2006 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

2XJ-13101-00-00

Unavailable

2

HOSE

90445-054F8-00

Unavailable

3

CLIP (214-13164-00)

90468-02033-00

$4.89

4

GASKET 137131870000

90430-04004-00

$6.39

5

SCREW, BINDING

98907-04008-00

$0.41

6

SHAFT, WORM

10V-13175-00-00

Unavailable

7

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

8

GASKET, PUMP CASE

126-13116-01-00

$6.46

9

SCREW, PAN HEAD

98507-05014-00

$4.91

10

OIL SEAL (J10)

93101-10090-00

$5.75

11

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

12

GEAR, PUMP DRIVE

10V-13178-01-00

Unavailable

13

PIN,DOWEL (137)

93603-22028-00

$2.04

14

CIRCLIP (137)

93430-08007-00

$5.75

15

CLIP (214-13164-00)

90468-02033-00

$4.89

16

CLIP (867)

90468-15020-00

Unavailable

17

HOLDER, OIL PIPE

10V-13174-00-00

Unavailable
