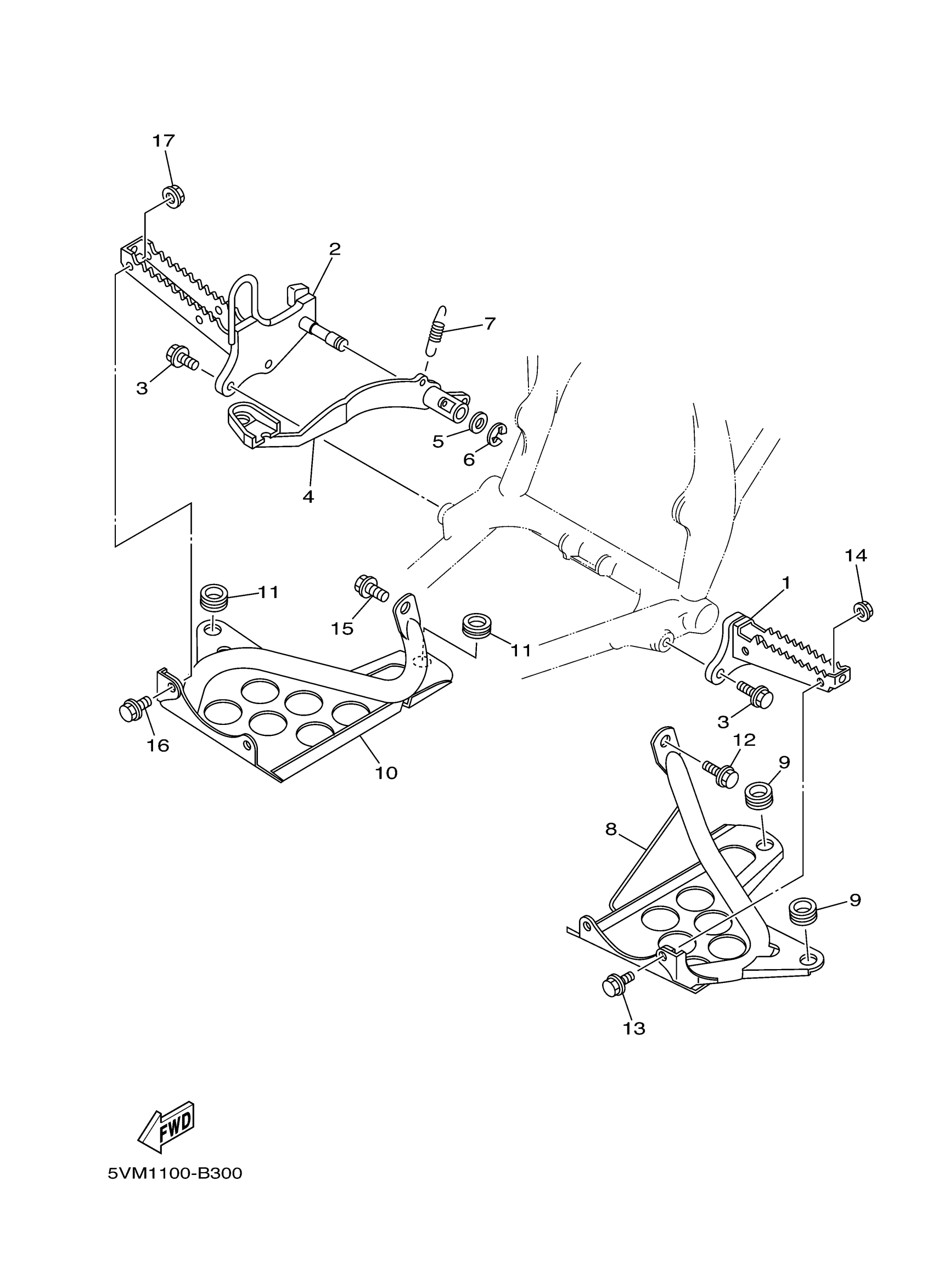

Yamaha YFS200R (BLASTER) 5VM1 2003 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

5KJ-27411-00-00

Unavailable

2

FOOTREST 2

5VM-27421-00-00

Unavailable

3

BOLT, FLANGE(3GD)

95817-10025-00

$5.75

4

PEDAL, BRAKE

5VM-27211-10-00

$65.33

5

WASHER, PLATE (3X3)

90201-15797-00

$5.86

6

CIRCLIP (122)

93430-12008-00

$4.89

7

SPRING, TENSION(1FN)

90506-20380-00

$5.55

8

PLATE 1

3JM-27445-00-00

Unavailable

9

GROMMET

90480-18411-00

$8.33

10

PLATE 2

3JM-27446-00-00

Unavailable

11

GROMMET

90480-18411-00

$8.33

12

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

13

BOLT, BUTTON

92017-08016-00

$4.40

14

NUT, FLANGE(JN5)

95707-08500-00

$1.40

15

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

16

BOLT, BUTTON

92017-08016-00

$4.40

17

NUT, FLANGE(JN5)

95707-08500-00

$1.40
