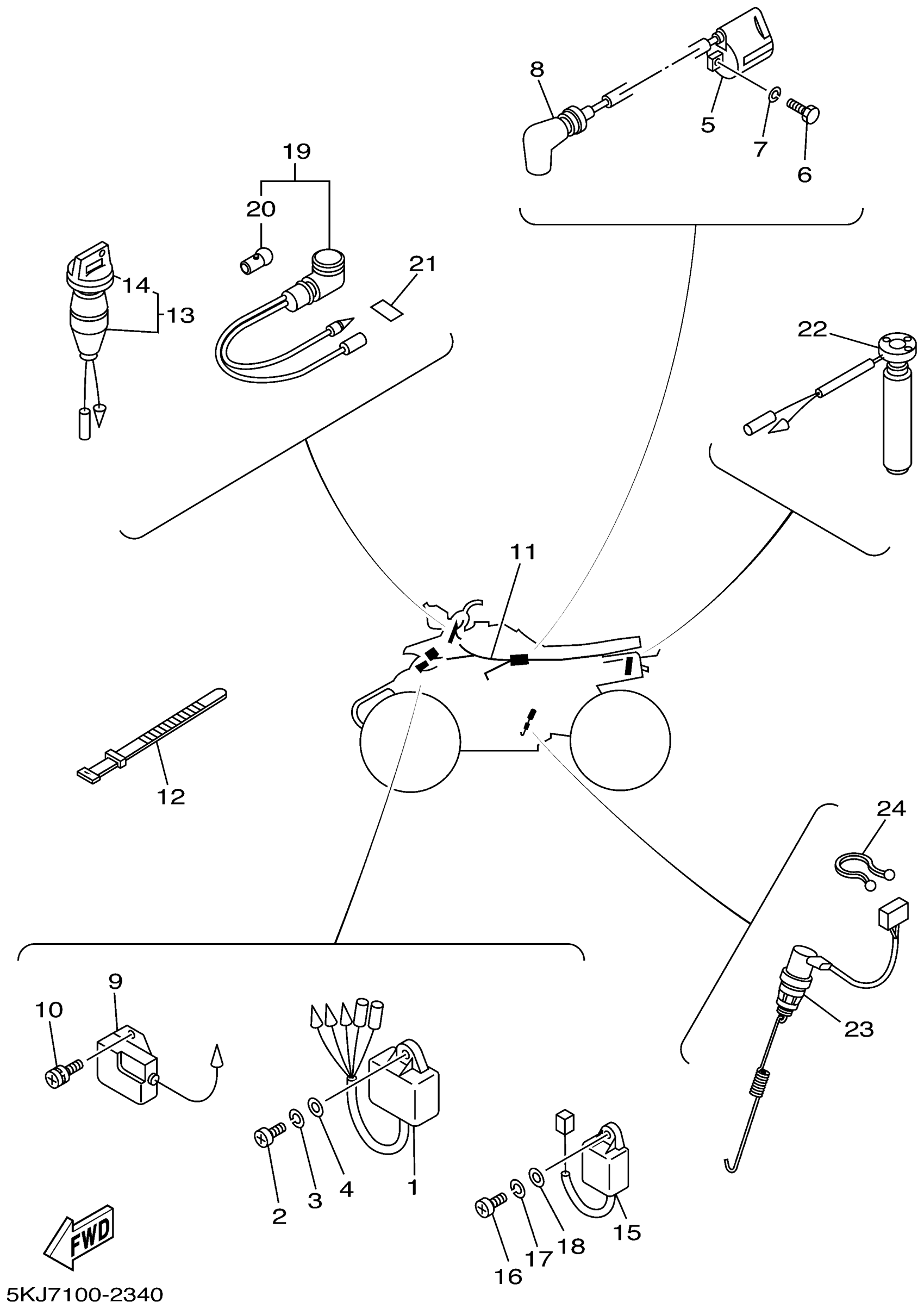

Yamaha YFS200P (BLASTER) 5KJ7 2002 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSY

3FL-85540-10-00

Unavailable

2

SCREW, PAN

98517-06020-00

$1.79

3

WASHER, SPRING

92907-06100-00

$0.98

4

WASHER(6TA)

92907-06600-00

$0.73

5

IGNITION COIL ASSY

3KJ-82310-13-00

Unavailable

6

BOLT, HEXAGON

97017-06020-00

$2.37

7

WASHER, SPRING

92907-06100-00

$0.98

8

PLUG CAP ASSY

8DG-82370-00-00

$41.54

9

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$46.16

10

SCREW, WITH WASHER (5U8)

90159-06056-00

$5.87

11

WIRE HARNESS ASSY

5KJ-82590-00-00

Unavailable

12

BAND, SWITCH CORD

437-83936-11-00

$3.34

13

MAIN SWITCH ASSY

2XJ-82510-02-00

$46.52

14

CAP, KEY

3HN-82579-00-00

$11.48

15

CONTROL UNIT ASSY

3GG-85590-00-00

Unavailable

16

SCREW, PAN

98517-06020-00

$1.79

17

WASHER, SPRING

92907-06100-00

$0.98

18

WASHER(6TA)

92907-06600-00

$0.73

19

PILOT LIGHT ASSY

2XJ-83530-10-00

Unavailable

20

BULB (12V-3.4W)

123-83516-21-00

Unavailable

21

LABEL

4U3-83585-00-00

Unavailable

22

OIL LEVEL GAUGE ASSY

2XJ-85720-04-00

Unavailable

23

STOP SWITCH ASSY

5KJ-82530-00-00

Unavailable

24

CLAMP (3Y2)

90464-16039-00

Unavailable
