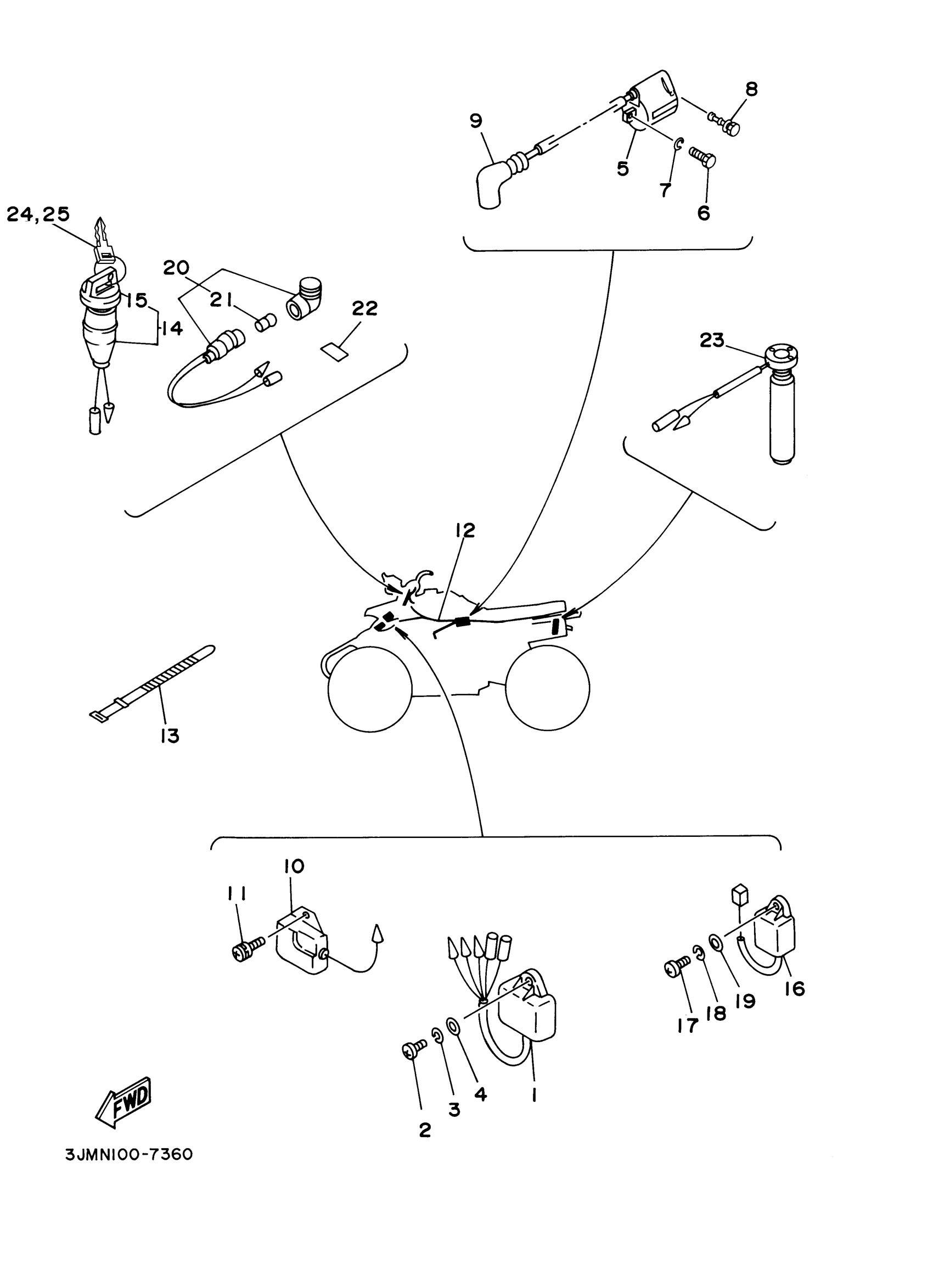

Yamaha YFS200N (BLASTER) 5KJ4 2001 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSY

3FL-85540-10-00

Unavailable

2

SCREW, PAN

98517-06020-00

$1.79

3

WASHER, SPRING

92907-06100-00

$0.98

4

WASHER(6TA)

92907-06600-00

$0.73

5

IGNITION COIL ASSY

3KJ-82310-13-00

Unavailable

6

BOLT, HEXAGON

97017-06020-00

$2.37

7

WASHER, SPRING

92907-06100-00

$0.98

8

BOLT (21V)

90109-06723-00

$6.26

9

PLUG CAP ASSY

8DG-82370-00-00

$41.54

10

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$46.16

11

SCREW, WITH WASHER (5U8)

90159-06056-00

$5.87

12

WIRE HARNESS ASSY

3JM-82590-10-00

Unavailable

13

BAND, SWITCH CORD

437-83936-11-00

$3.34

14

MAIN SWITCH ASSY

2XJ-82510-02-00

$46.52

15

CAP, KEY

3HN-82579-00-00

$11.48

16

CONTROL UNIT ASSY

3GG-85590-00-00

Unavailable

17

SCREW, PAN

98517-06020-00

$1.79

18

WASHER, SPRING

92907-06100-00

$0.98

19

WASHER(6TA)

92907-06600-00

$0.73

20

PILOT LIGHT ASSEMBLY

3FA-83530-10-00

Unavailable

21

BULB

2XJ-83516-00-00

Unavailable

22

LABEL

4U3-83585-00-00

Unavailable

23

OIL LEVEL GAUGE ASSY

2XJ-85720-04-00

Unavailable

24

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

25

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
