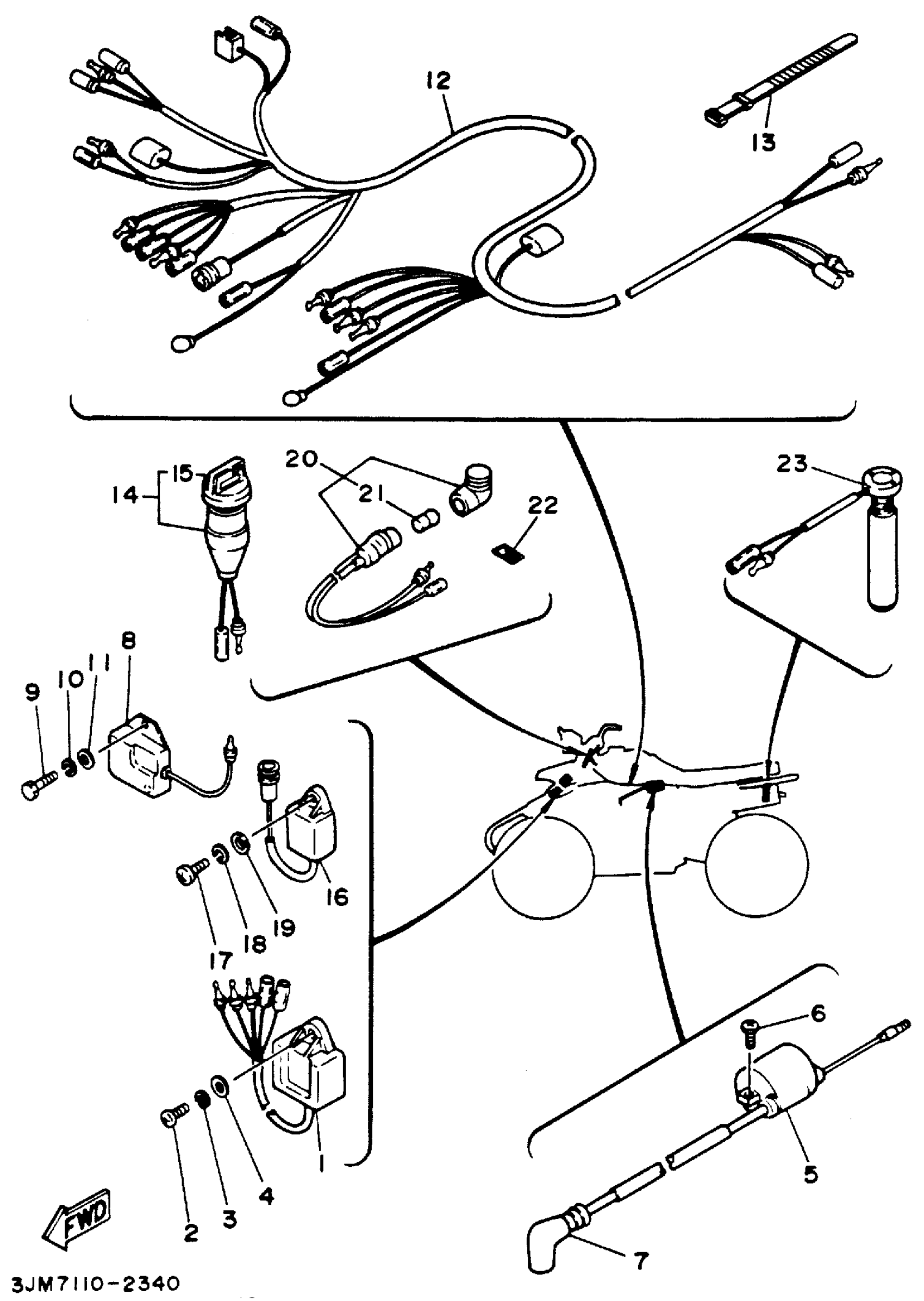

Yamaha YFS200F_MNH (BLASTER) 1994 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSY

3FL-85540-10-00

Unavailable

2

SCREW PAN HEAD

98580-06020-00

$4.89

3

WASHER, SPRING

92995-06100-00

$2.95

4

WASHER, PLAIN (646)

92990-06600-00

$1.84

5

IGNITION COIL ASSY

4RP-82310-26-00

Unavailable

6

SCREW, PAN HEAD

98580-06016-00

$2.88

7

PLUG CAP ASSY

8DG-82370-00-00

$41.54

8

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$46.16

9

SCREW PAN HEAD

98580-06020-00

$4.89

10

WASHER, SPRING

92995-06100-00

$2.95

11

WASHER, PLAIN (646)

92990-06600-00

$1.84

12

WIRE HARNESS ASSEMBLY

2XJ-82590-00-00

Unavailable

13

BAND, SWITCH CORD

437-83936-11-00

$3.34

14

MAIN SWITCH ASSY

2XJ-82510-02-00

$46.52

15

CAP, KEY

3HN-82579-00-00

$11.48

16

CONTROL UNIT ASSEMBLY

2GU-85590-M0-00

Unavailable

17

SCREW PAN HEAD

98580-06020-00

$4.89

18

WASHER, SPRING

92995-06100-00

$2.95

19

WASHER, PLAIN (646)

92990-06600-00

$1.84

20

PILOT LIGHT ASSEMBLY

3FA-83530-10-00

Unavailable

21

BULB

2XJ-83516-00-00

Unavailable

22

LABEL

4U3-83585-00-00

Unavailable

23

OIL LEVEL GAUGE ASSY

2XJ-85720-04-00

Unavailable
