Description

Price

1

AXLE, WHEEL

43D-F5381-00-00

$334.63

2

SPROCKET ASSY

43D-F5420-00-00

$96.95

3

COLLAR, SPROCKET AXLE

43D-F5386-00-00

$86.43

4

SPROCKET, DRIVEN (28T)

43D-F5438-00-00

$36.99

5

BOLT

43D-F3459-00-00

$3.74

6

NUT, REAR FENDER

43D-F1635-00-00

$4.98

7

NUT

43D-F1636-00-00

$8.68

8

CHAIN

43D-F53C0-00-00

$30.09

9

MASTER LINK

43D-F53N3-00-00

$7.51

10

WASHER

43D-F5412-00-00

Unavailable

11

TIRE (AT18 X 9-8 M940)

43D-F53P3-00-00

$225.99

12

REAR WHEEL COMP.

43D-F5390-00-00

$73.69

13

AIR VALVE ASSY

43D-F5170-00-00

$15.75

14

COLLAR, WHEEL

43D-F5383-00-00

$120.49

15

BOLT

43D-F1738-00-00

Unavailable

16

NUT

43D-F1839-00-00

$3.11

17

NUT, AXLE

43D-F5382-00-00

Unavailable

18

WASHER 1

43D-F2243-00-00

$4.68

19

PIN, COTTER(6L5)

91490-25030-00

$2.85

20

HUB, REAR

43D-F5311-01-00

$154.82

21

SPACER, BEARING

43D-F5317-00-00

$20.02

22

BEARING

43D-F53N4-00-00

$52.26

23

SEAL, DUST

43D-F537Y-00-00

$7.51

24

SPACER

43D-F5683-00-00

$20.37

25

BOLT

43D-F3492-00-00

$7.51

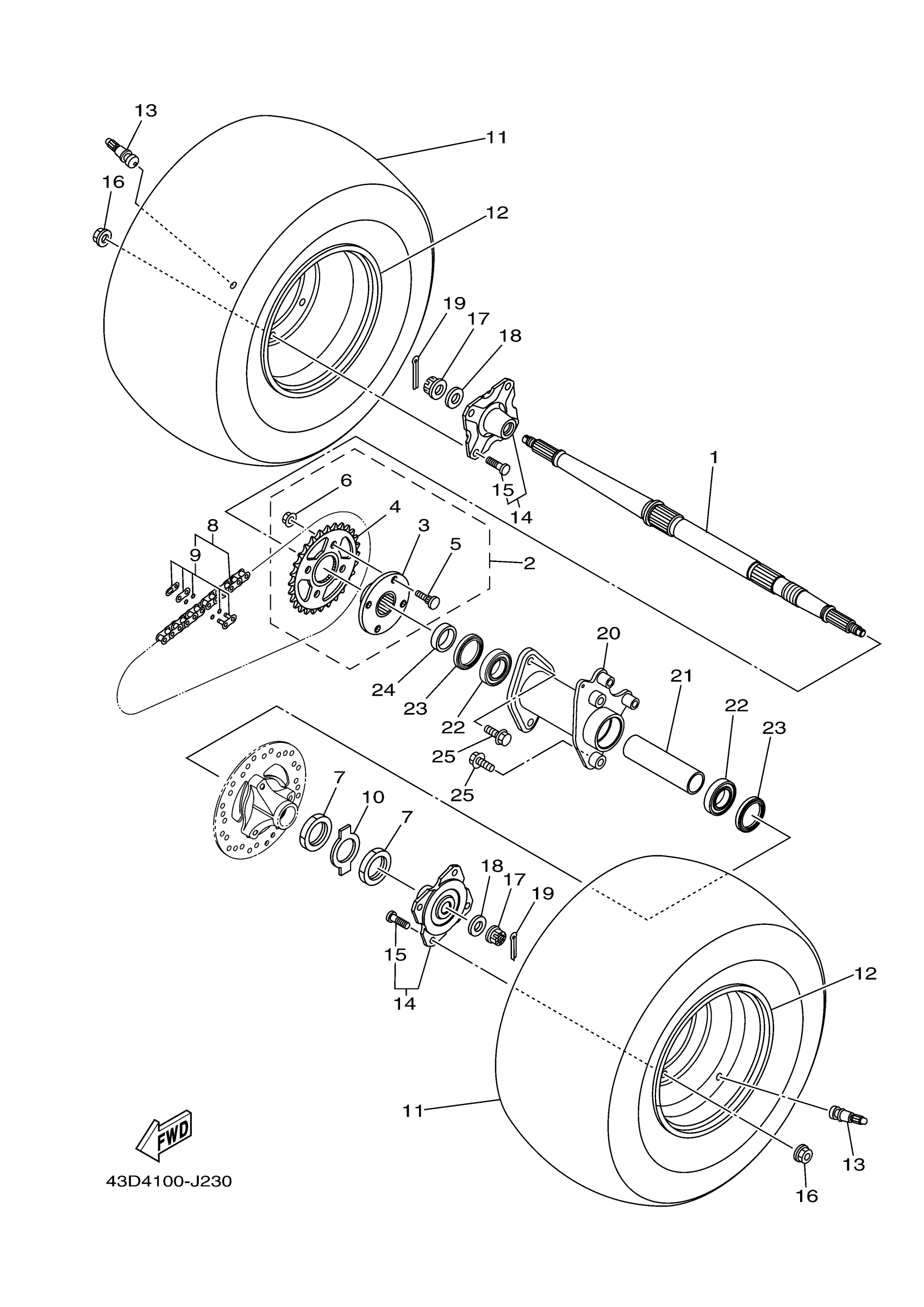

Yamaha YFM90RDL (RAPTOR 90) 43DD 2013 REAR WHEEL Diagram
