Description

Price

1

SHOCK ABSORBER ASSY

43D-F3350-00-00

Unavailable

2

NUT

43D-F1244-00-00

$4.15

3

FRONT UPPER ARM SUB ASSY LH

43D-F3505-00-00

$184.69

4

BUSH

43D-F3526-00-00

$15.03

5

COLLAR 1

43D-F3363-00-00

$15.04

6

FRONT UPPER ARM SUB ASSY RH

43D-F3506-00-00

$184.69

7

BUSH

43D-F3526-00-00

$15.03

8

COLLAR 1

43D-F3363-00-00

$15.04

9

FRONT LOWER ARM SUB-ASSY (L.H)

43D-F3507-00-00

$213.04

10

BUSH

43D-F3526-00-00

$15.03

11

COLLAR 2

43D-F3364-00-00

$7.29

12

FRONT LOWER ARM SUB-ASSY (R.H)

43D-F3508-00-00

$213.04

13

BUSH

43D-F3526-00-00

$15.03

14

COLLAR 2

43D-F3364-00-00

$7.29

15

BOLT (6TC)

97017-10040-00

$6.89

16

PIN, COTTER

91490-25020-00

$2.94

17

NUT, CASTLE

95307-10900-00

$7.55

18

PIN, COTTER(6L5)

91490-25030-00

$2.85

19

BOLT

43D-F3471-00-00

$5.71

20

NUT, REAR FENDER

43D-F1635-00-00

$4.98

21

BOLT, WASHER BASED(42X)

90105-10300-00

$9.62

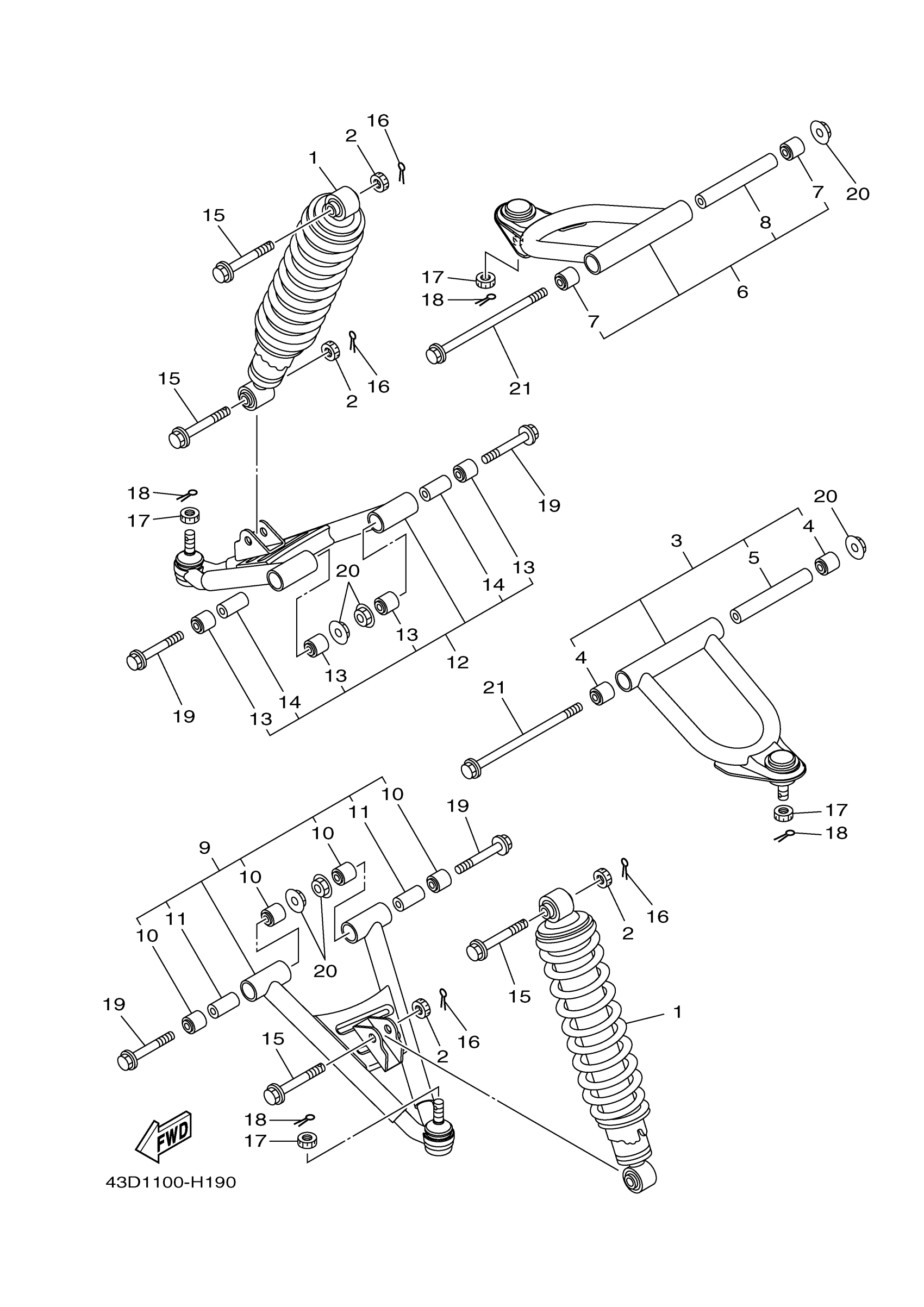

Yamaha YFM90RDL (RAPTOR 90) 43DD 2013 FRONT SUSPENSION WHEEL Diagram

SHOCK ABSORBER ASSY
