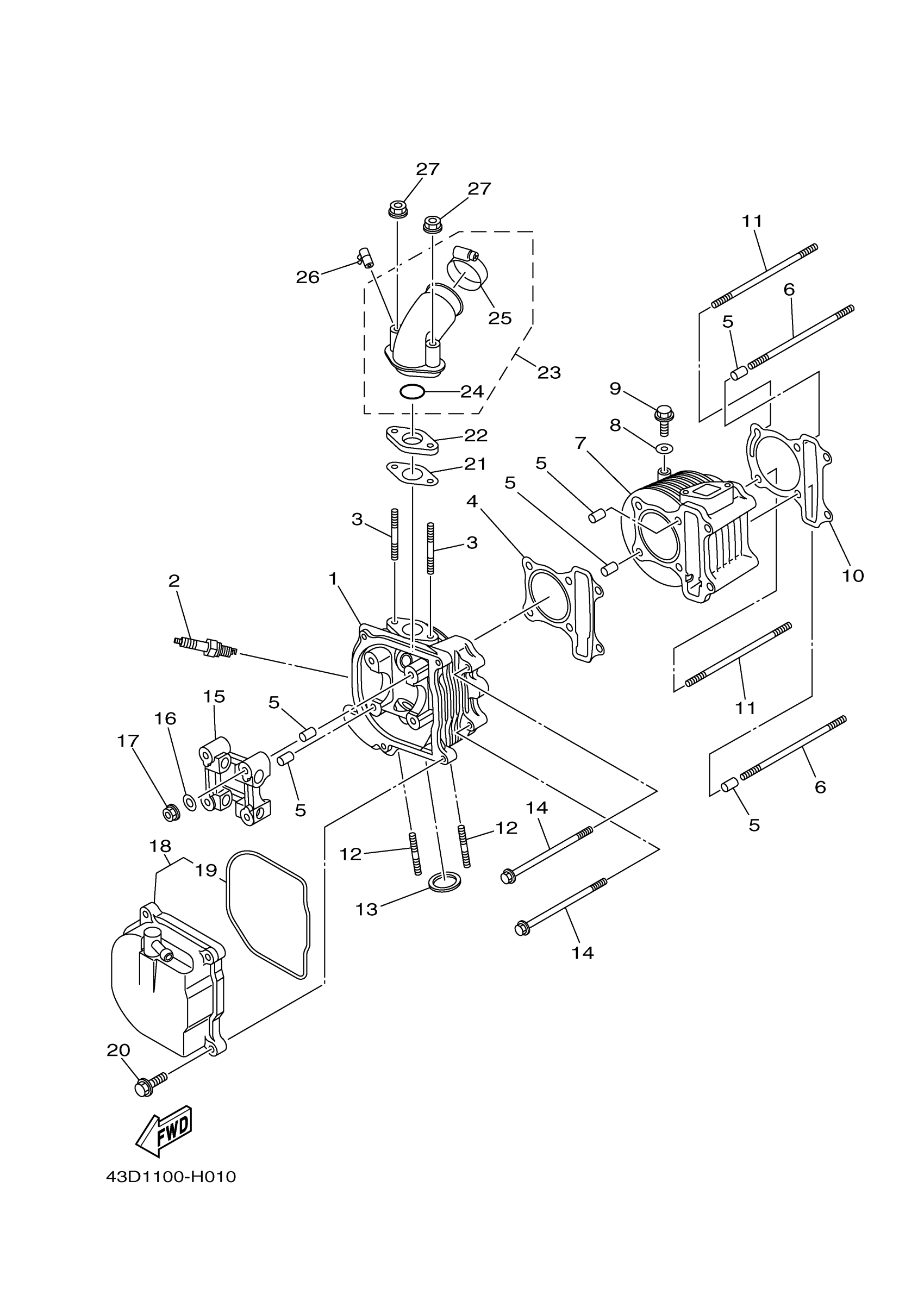

Yamaha YFM90RDL (RAPTOR 90) 43DD 2013 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

43D-E1102-00-00

$301.15

2

CR7HSA NGK SPLUG 4PK

CR7-HSA00-00-00

$3.92

3

BOLT, STUD

43D-E1179-00-00

$6.06

4

GASKET, CYLINDER HEAD 1

43D-E1181-00-00

$18.21

5

PIN, DOWEL

43D-E3516-00-00

$2.71

6

BOLT, STUD 2

43D-E1392-00-00

Unavailable

7

CYLINDER 1

43D-E1311-00-00

$199.57

8

WASHER

43D-E3177-00-00

$2.20

9

BOLT, FLANGE

95817-06012-00

$1.49

10

GASKET, CYLINDER

43D-E1351-00-00

$6.22

11

BOLT, STUD

43D-E2174-00-00

$11.38

12

BOLT, STUD 1

43D-E1391-00-00

Unavailable

13

GASKET

43D-E1195-00-00

$6.18

14

BOLT, FLANGE

95022-06100-00

$1.88

15

CAP, CAMSHAFT 1

43D-E2173-00-00

$48.91

16

WASHER

43D-E3318-00-00

$3.82

17

NUT

43D-E4439-00-00

$6.52

18

COVER, CYLINDER HEAD 1

43D-E1190-00-00

$73.65

19

GASKET, CYLINDER HEAD 2

43D-E1182-00-00

$8.87

20

. BOLT, FLANGE

95027-06020-00

$1.00

21

GASKET, MANIFOLD

43D-E3556-00-00

$6.46

22

INSULATOR

43D-E4271-00-00

$5.37

23

CARBURETOR JOINT ASSY

43D-E3590-00-00

$61.15

24

O-RING

43D-E119B-00-00

$3.74

25

HOSE CLAMP ASSY

90450-40001-00

$11.78

26

PLUG, BLIND

43D-E3569-00-00

$3.60

27

NUT

43D-E4358-00-00

Unavailable
