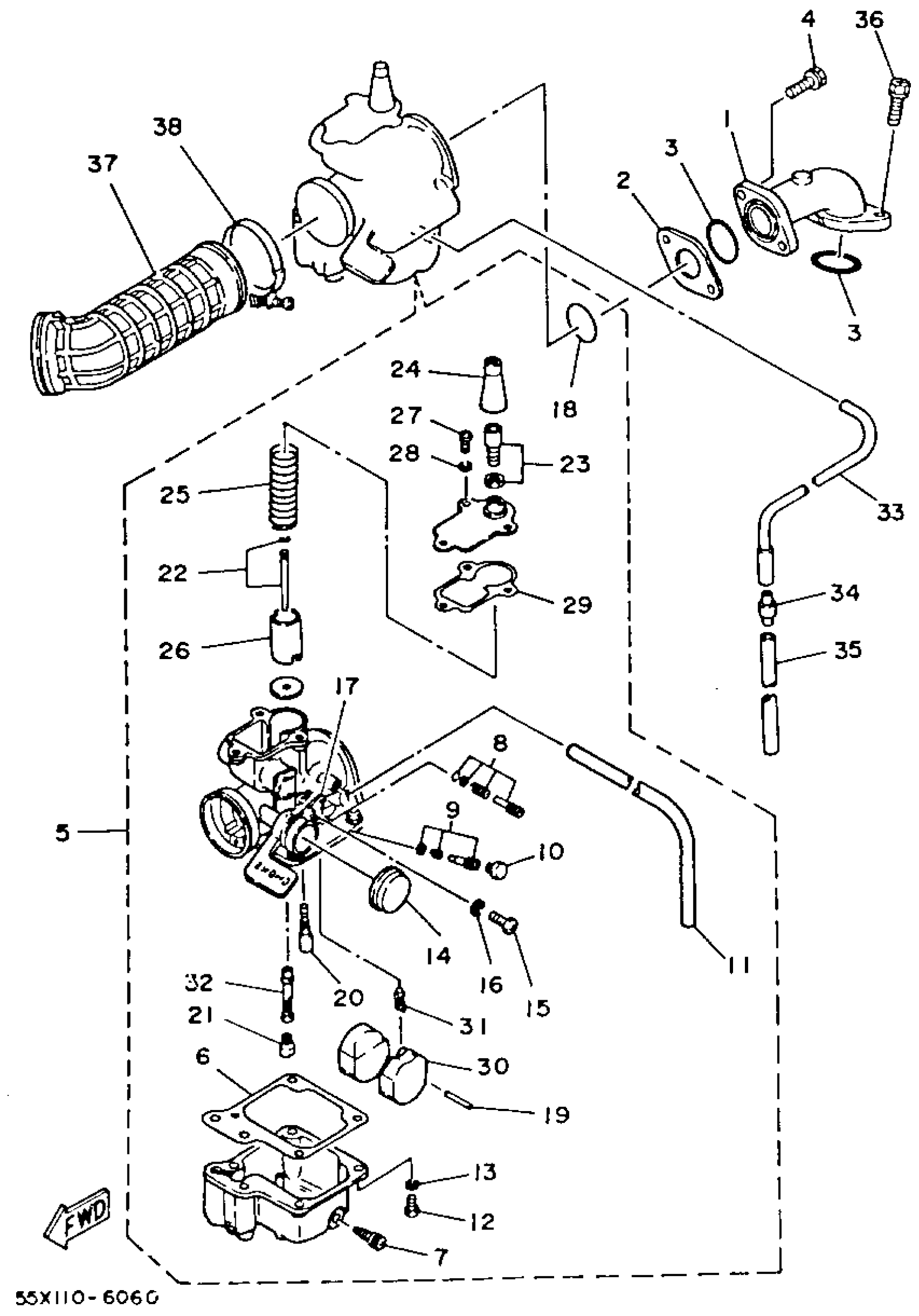

Yamaha YFM80T (BADGER) 1987 AIR CLEANER - CARBURETOR Diagram

#

Description
Price

1

. CABLE, THROTTLE 1

2FJ-26311-00-00

Unavailable

1

JOINT, CARBURETOR 1

55X-13586-00-00

$53.05

1

. CARBURETOR ASSEMBLY

55X-14101-02-00

Unavailable

2

JOINT

22K-13595-00-00

$7.63

3

O-RING (22F)

93210-25552-00

$11.71

4

SCREW, WITH WASHER (22K)

90159-06076-00

$6.31

5

CARBURETOR SET(55X)

99999-03229-00

Unavailable

6

GASKET, FLOAT CHAMBER

22F-14184-00-00

$15.04

7

PLUG, DRAIN

12R-14191-00-00

$14.25

8

THROTTLE SCREW SET

22F-14103-00-00

$14.25

9

AIR SCREW SET

22K-14104-00-00

$9.95

10

CAP

22F-14991-00-00

$20.80

11

HOSE (L540)

90445-084A7-00

$6.60

12

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.78

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.60

14

CAP

22F-14169-00-00

$9.05

15

SCREW, PAN HEAD (713)

98580-04008-00

$4.54

16

YBS67-4 WASHER, SPRING

92990-04100-00

$0.60

17

PLATE

55X-14146-00-00

Unavailable

18

O-RING

22K-14147-00-00

$15.04

19

PIN, FLOAT

127-14186-00-00

$6.23

20

JET, PILOT (#12.5)

22F-14142-12-00

$7.51

21

JET, MAIN #80

18A-14143-16-00

$7.51

22

. NEEDLE SET

55X-1490J-00-00

Unavailable

23

CABLE ADJUST SCREW SET

12G-14106-00-00

$17.66

24

CAP

8A7-14169-00-00

$15.80

25

SPRING, THROTTLE VALVE

260-14131-00-00

$6.65

26

. VALVE, THROTTLE 1

55K-14112-30-00

Unavailable

27

SCREW, PAN HEAD (E56)

98580-04010-00

$6.17

28

YBS67-4 WASHER, SPRING

92990-04100-00

$0.60

29

GASKET

55X-14198-00-00

$10.78

30

FLOAT

22F-14185-00-00

$49.05

31

NEEDLE ASSY

5TH-14150-00-00

$34.50

32

. NOZZLE, MAIN

22K-14141-12-00

Unavailable

33

PIPE

55X-14196-00-00

$17.41

34

PIPE 2,OVERFLOW

24W-14193-00-00

$35.28

35

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$8.95

36

SCREW, WITH WASHER (22K)

90159-06076-00

$6.31

37

JOINT, AIR CLEANER 1

55X-14453-00-00

$26.26

38

CLAMP, HOSE (5H0)

90460-43179-00

$16.69
