Description

Price

1

FUEL TANK COMP.

2HX-24110-00-00

Unavailable

2

CAP ASSY

2FJ-24610-20-00

$60.72

3

HOSE (L600)

90445-083J5-00

$7.65

4

GROMMET (4V1)

90480-18290-00

$7.02

5

COLLAR (1T2)

90387-07598-00

$4.83

6

COLLAR (36R)

90387-066J1-00

$6.86

7

BOLT, HEXAGON

97017-06030-00

$3.00

8

WASHER, SPRING

92907-06100-00

$1.00

9

GROMMET(38W)

90480-01400-00

$10.06

10

WASHER, PLATE

90201-06090-00

$5.17

11

FUEL COCK ASSY 1

55X-24500-02-00

$36.61

12

SEAL, COCK

3AJ-24534-01-00

$9.32

13

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.74

14

O-RING

4X8-24512-00-00

$7.51

15

VALVE PACKING

3AC-24523-00-00

$11.58

16

WASHER, PLATE(3MB)

90202-05187-00

$1.01

17

SCREW 256241430000

90149-06011-00

$1.58

18

HOSE (L200)

90445-10752-00

$3.88

19

CLIP

90467-090A2-00

$2.51

20

SPRING, COMPRESSION (1J7)

90504-06030-00

$5.77

21

DAMPER 1

88T-77198-00-00

Unavailable

22

SEAT, BATTERY

5Y1-82122-00-00

$6.52

23

DAMPER, PLATE 1

5TH-2414H-00-00

$4.15

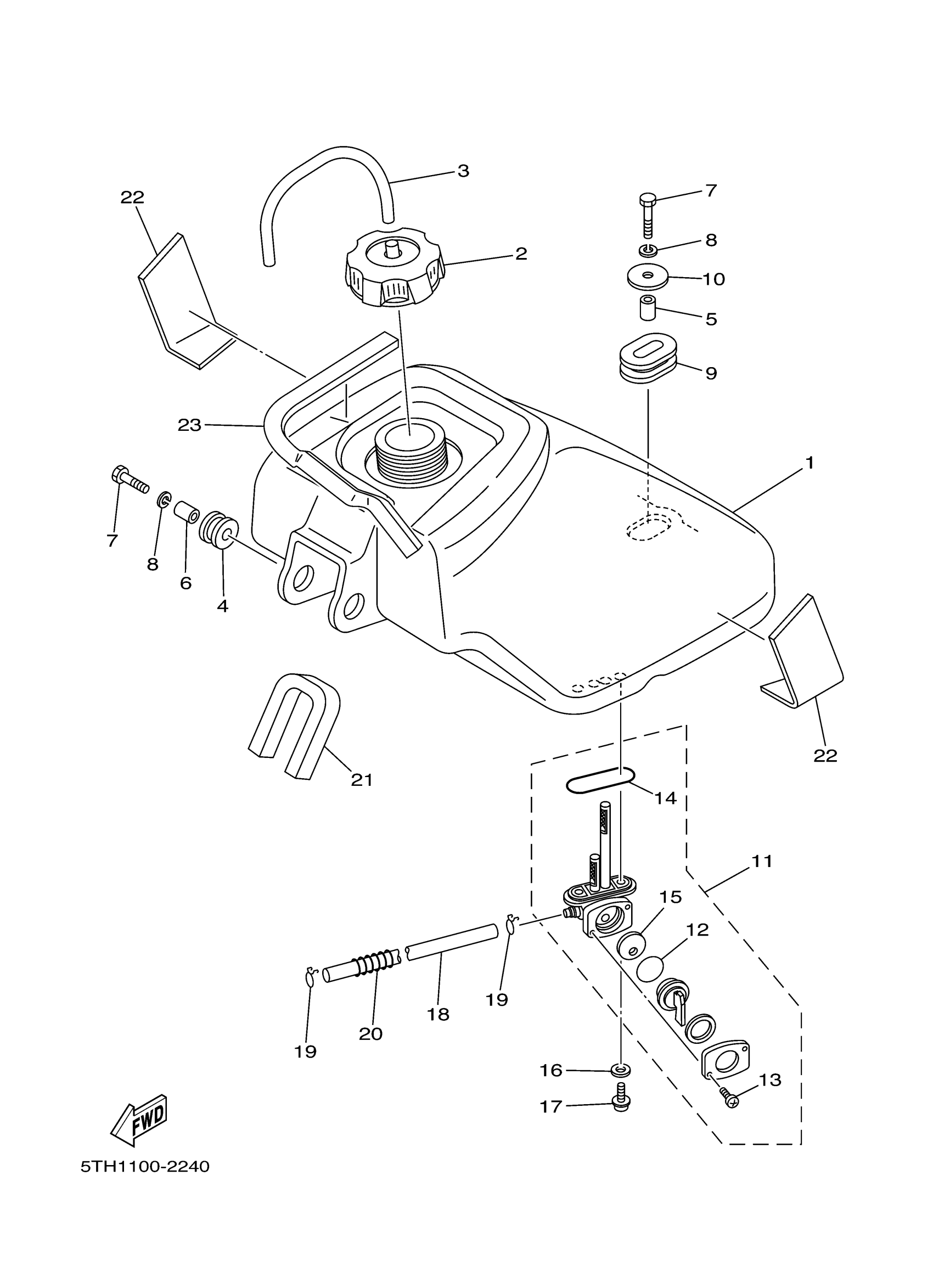

Yamaha YFM80RW (RAPTOR 80) 5THH 2007 FUEL TANK Diagram

FUEL TANK COMP.

DAMPER 1
