Description

Price

1

FRONT LOWER ARM COMP.(LEFT)

3GB-23570-00-33

$324.66

2

BUSHING,REAR ARM

307-22123-00-00

$18.21

3

BOLT (4X7)

90101-12498-00

$12.65

4

NUT, SELF-LOCKING(1KH)

90185-12134-00

$10.11

5

WASHER, PLATE (5K7)

90201-124E4-00

$6.43

6

SHOCK ABSORBER ASSY

2HX-23350-00-36

$130.35

7

COLLAR, DISTANCE

2HX-2331U-00-00

$3.77

8

BOLT, WASHER BASED(3YR)

90105-10669-00

$8.51

9

NUT, SELF LOCKING (3G1)

90185-10091-00

$6.62

10

BOLT, WASHER BASED(2HX)

90105-12460-00

$7.22

11

NUT, SELF-LOCKING(1KH)

90185-12134-00

$10.11

12

STEERING KNUCKLE ASSY (LEFT)

3GB-23501-10-00

Unavailable

13

BUSH, SOLID(2NL)

90381-17067-00

$12.49

14

NIPPLE, GREASE

93700-06M03-00

$7.15

15

STEERING KNUCKLE ASSY (RIGHT)

3GB-23502-10-00

Unavailable

16

BUSH, SOLID(2NL)

90381-17067-00

$12.49

17

NIPPLE, GREASE

93700-06M03-00

$7.15

18

SPACER

3GB-23448-00-00

$24.95

19

COVER, THRUST 1

3JN-23517-00-00

$3.92

20

BOLT(55X)

90109-104A8-00

$5.86

21

WASHER PLATE (3L6)

90201-08759-00

$2.52

22

NUT 3532518200

90171-10004-00

$5.32

23

PIN, COTTER

91490-20025-00

$1.31

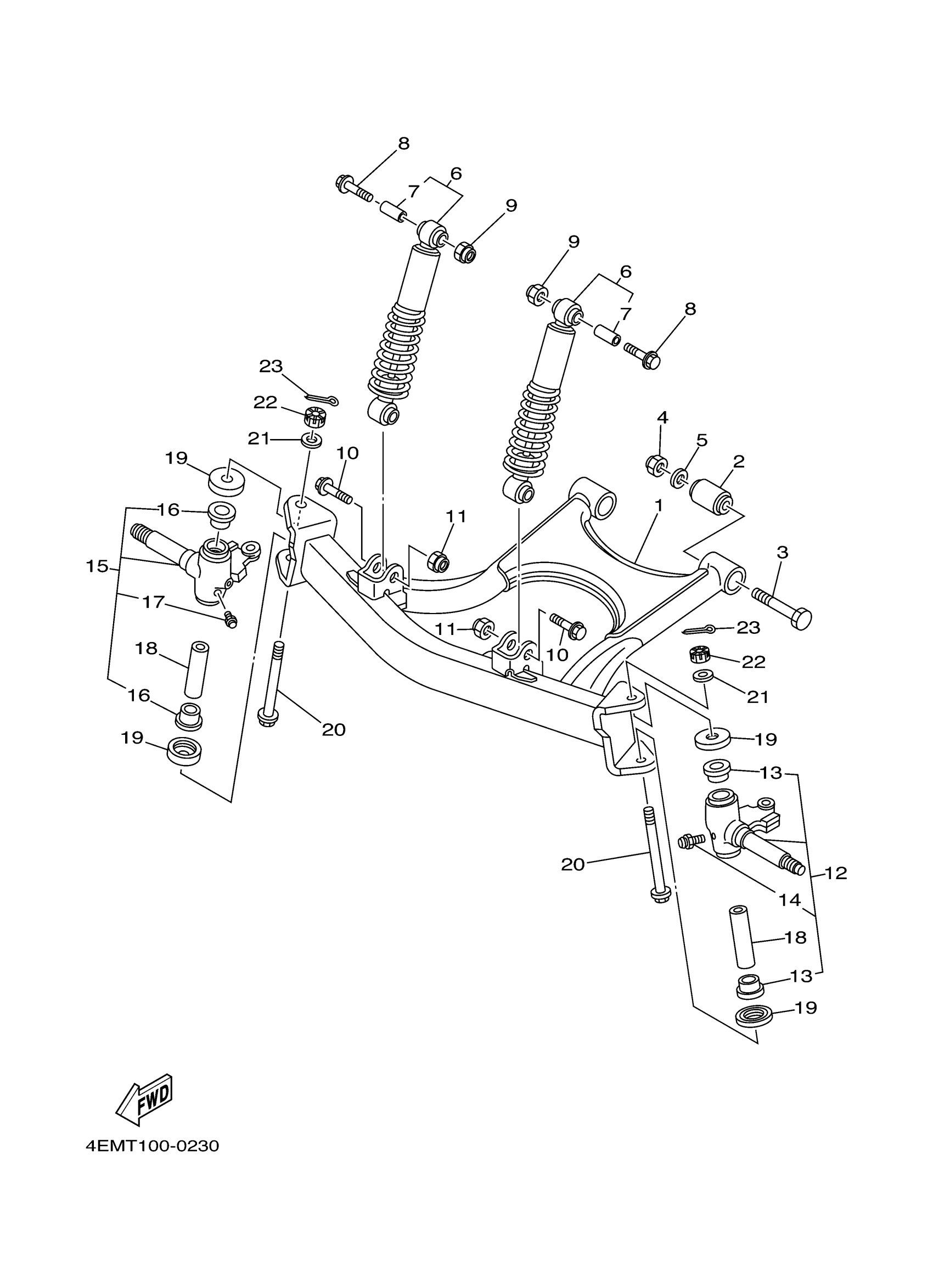

Yamaha YFM80RW (RAPTOR 80) 5THH 2007 FRONT SUSPENSION WHEEL Diagram

STEERING KNUCKLE ASSY (LEFT)

STEERING KNUCKLE ASSY (RIGHT)
