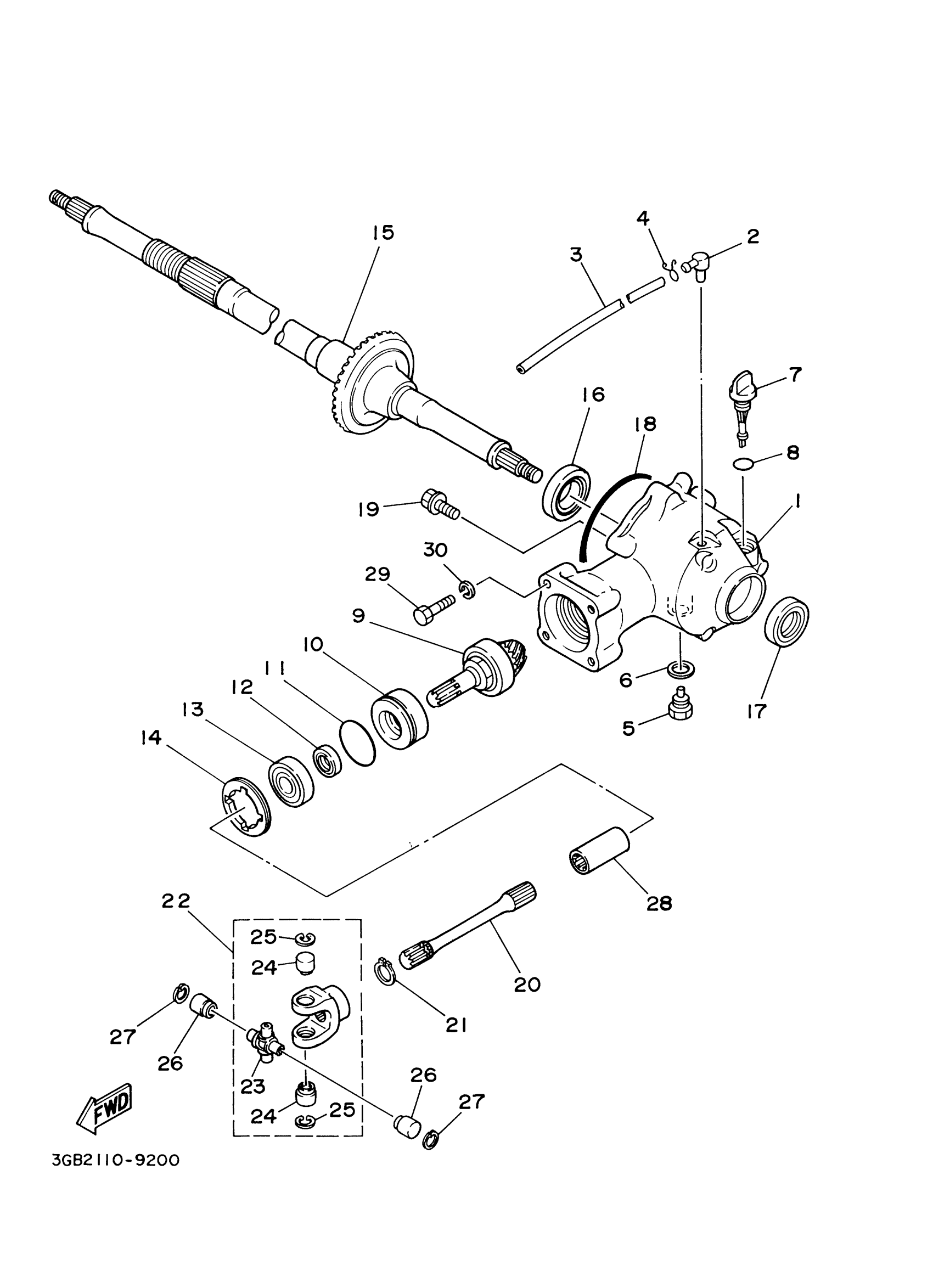

Yamaha YFM80RW (RAPTOR 80) 5THH 2007 DRIVE SHAFT Diagram

#

Description
Price

1

HOUSING, DRIVE SHAFT

3GB-46151-00-00

$244.22

2

BREATHER

5UG-15371-00-00

$33.79

3

HOSE (L1700)

90445-070G6-00

$35.08

4

CLIP (1J7)

90467-07029-00

$1.92

5

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.65

6

GASKET

214-11198-01-00

$2.66

7

PLUG, OIL LEVEL

3GB-15362-00-00

$25.62

8

O-RING (26H)

93210-14579-00

$5.69

9

DRIVE PINION COMP.

3GB-46120-00-00

$234.42

10

SPACER

90560-23355-00

Unavailable

11

O-RING(1EY)

93210-43713-00

$4.21

12

OIL SEAL (7X9)

93102-17271-00

$9.77

13

BEARING(4HM)

93306-30317-00

$33.54

14

NUT(52G)

90179-55464-00

$16.85

15

RING GEAR COMP.

3GB-46110-20-00

Unavailable

16

BEARING(55X)

93306-07801-00

$51.93

17

OIL SEAL (28X47X7-102)

93102-28022-00

$12.63

18

O-RING

93211-066A9-00

$10.66

19

BOLT, FLANGE

95817-06016-00

$1.49

20

SHAFT, DRIVE

3GB-46172-01-00

$88.03

21

CIRCLIP(1EY)

99009-17400-00

$3.91

22

. CROSS JOINT COMP

2HX-46180-00-00

Unavailable

23

. SPIDER

22F-46187-00-00

Unavailable

24

BEARING, CYLINDRICAL (22F)

93311-20952-00

$13.77

25

CIRCLIP(24H)

99009-17500-00

Unavailable

26

BEARING, CYLINDRICAL (22F)

93311-20952-00

$13.77

27

CIRCLIP(24H)

99009-17500-00

Unavailable

28

COUPLING, GEAR

22F-46123-01-00

$12.38

29

BOLT, HEXAGON (3L6)

90101-08461-00

$3.66

30

WASHER(JN5)

92907-08100-00

$5.98
