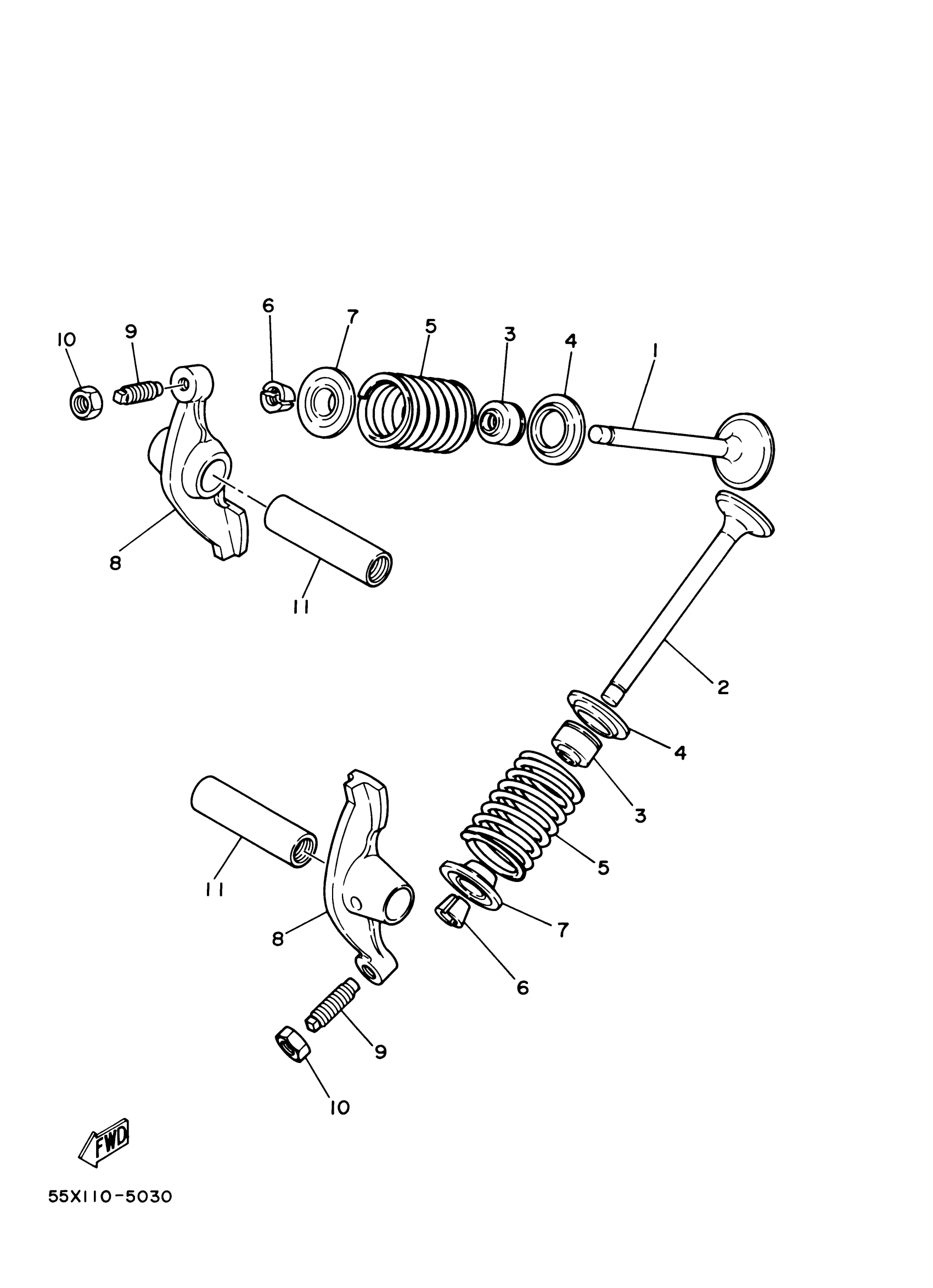

Yamaha YFM80MC (BADGER) 4EMS 2000 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

22K-12111-03-00

Unavailable

2

VALVE, EXHAUST

22K-12121-02-00

Unavailable

3

SEAL, VALVE STEM

2HX-12119-00-00

$11.48

4

SEAT, VALVE SPRING

22F-12116-00-00

$8.88

5

SPRING, VALVE OUTER

22F-12114-00-00

$6.29

6

COTTER, VALVE

22F-12118-01-00

$5.96

7

RETAINER, VALVE SPRING

22F-12117-02-00

$6.26

8

ARM, VALVE ROCKER

50M-12151-00-00

$60.01

9

SCREW, VALVE ADJUSTING

22F-12159-00-00

$8.56

10

NUT (22F)

90170-05302-00

$0.70

11

SHAFT, ROCKER 2

22F-12156-00-00

$17.82
