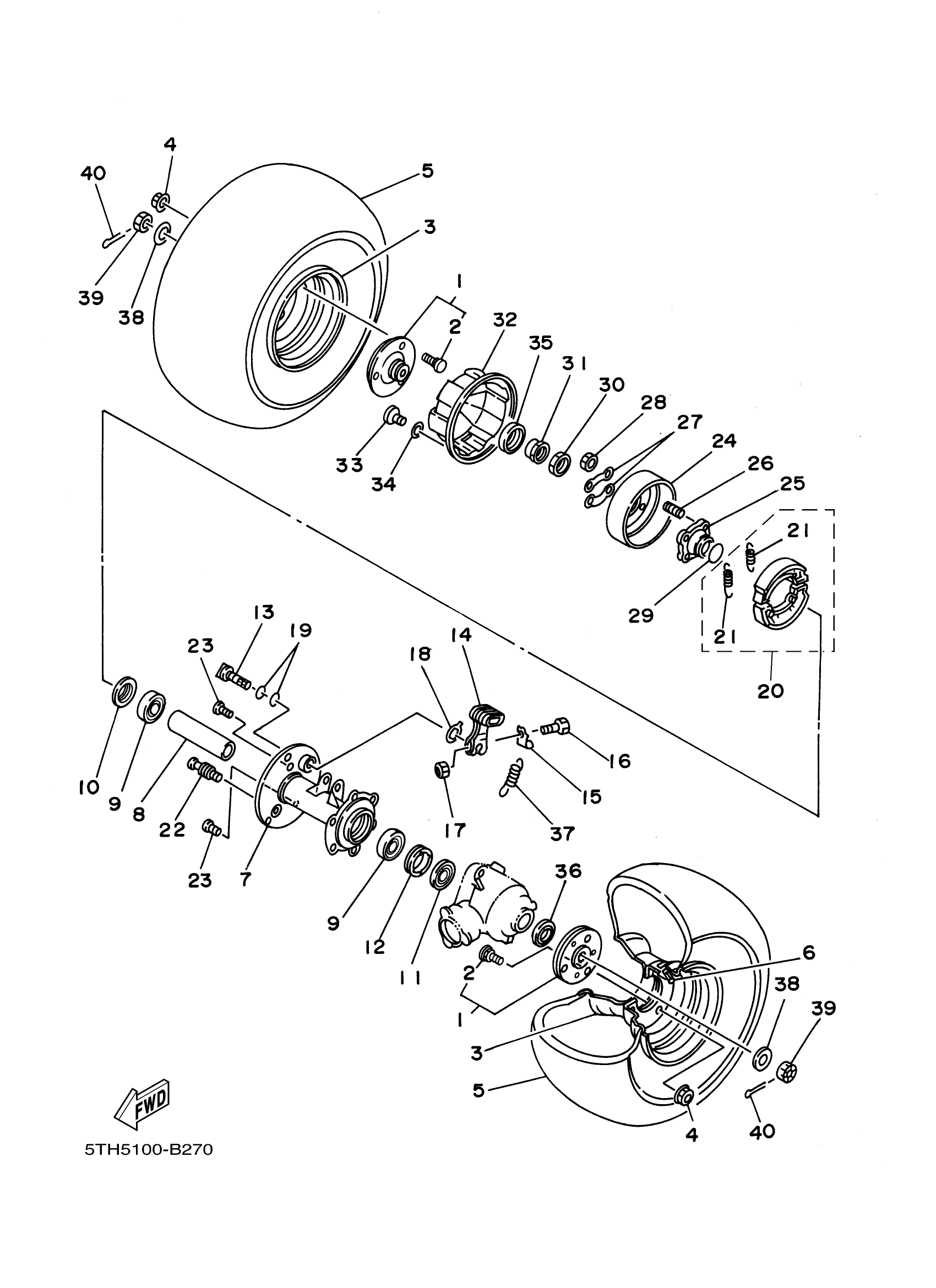

Yamaha YFM80GW (GRIZZLY 80) 2D37 2007 REAR WHEEL Diagram

#

Description
Price

1

COLLAR, WHEEL

55X-25383-10-00

$73.76

2

BOLT, SERRATION

90114-08001-00

$5.57

3

REAR WHEEL COMP.

2FJ-25390-00-35

Unavailable

4

NUT, FLANGE(JN5)

95707-08500-00

$1.49

5

AT18X8-7 KT587 T/L N (DURO)

2D3-2510K-19-00

$174.99

6

VALVE, RIM(2GH)

93900-00030-00

$14.46

7

HUB, REAR

3GB-25311-00-33

Unavailable

8

SPACER, BEARING

3GB-25317-00-00

$23.80

9

BEARING(2HR)

93306-00612-00

$42.56

10

OIL SEAL(2HR)

93102-38383-00

$15.23

11

OIL SEAL(3GB)

93102-36409-00

$16.40

12

NUT, AXLE

3GB-25382-00-00

Unavailable

13

CAMSHAFT

4GL-25351-00-00

$62.50

14

LEVER, CAMSHAFT

55X-25355-00-00

$57.95

15

HOOK, SPRING

55X-2533H-00-00

Unavailable

16

BOLT, HEXAGON (538)

90101-06278-00

$1.82

17

NUT(6TA)

95317-06600-00

$2.69

18

PLATE, INDICATOR

23F-2533A-00-00

$6.46

19

O-RING (26H)

93210-14579-00

$5.69

20

BRAKE SHOE KIT

3FA-W253A-00-00

$23.36

21

SPRING, TENSION

90506-15260-00

$5.75

22

PIN, PIVOT

3GB-25326-00-00

$36.08

23

BOLT, RIBBED NECK(3GB)

90114-10005-00

Unavailable

24

DRUM, BRAKE

3GB-2531E-00-00

$163.37

25

BOSS

3GB-25343-10-00

$89.62

26

BOLT, STUD(2XJ)

90116-08507-00

$5.32

27

WASHER, LOCK

40E-25834-00-00

$6.43

28

NUT(6TA)

95337-08600-00

$6.17

29

O-RING(22F)

93210-26662-00

$5.86

30

NUT

90170-28011-00

$12.78

31

NUT

90179-28009-00

Unavailable

32

COVER 1

3GB-25715-00-00

$95.51

33

SCREW, PAN

98517-06012-00

$3.14

34

WASHER, SPRING

92907-06100-00

$1.00

35

OIL SEAL (705)

93102-35191-00

$17.02

36

COVER, HUB DUST

3GB-25367-00-00

Unavailable

37

SPRING, TENSION(55X)

90507-15038-00

$8.63

38

WASHER, PLATE

90201-12045-00

$5.14

39

NUT, CASTLE

90171-12001-00

$2.85

40

PIN, COTTER(6L5)

91490-25030-00

$2.85
