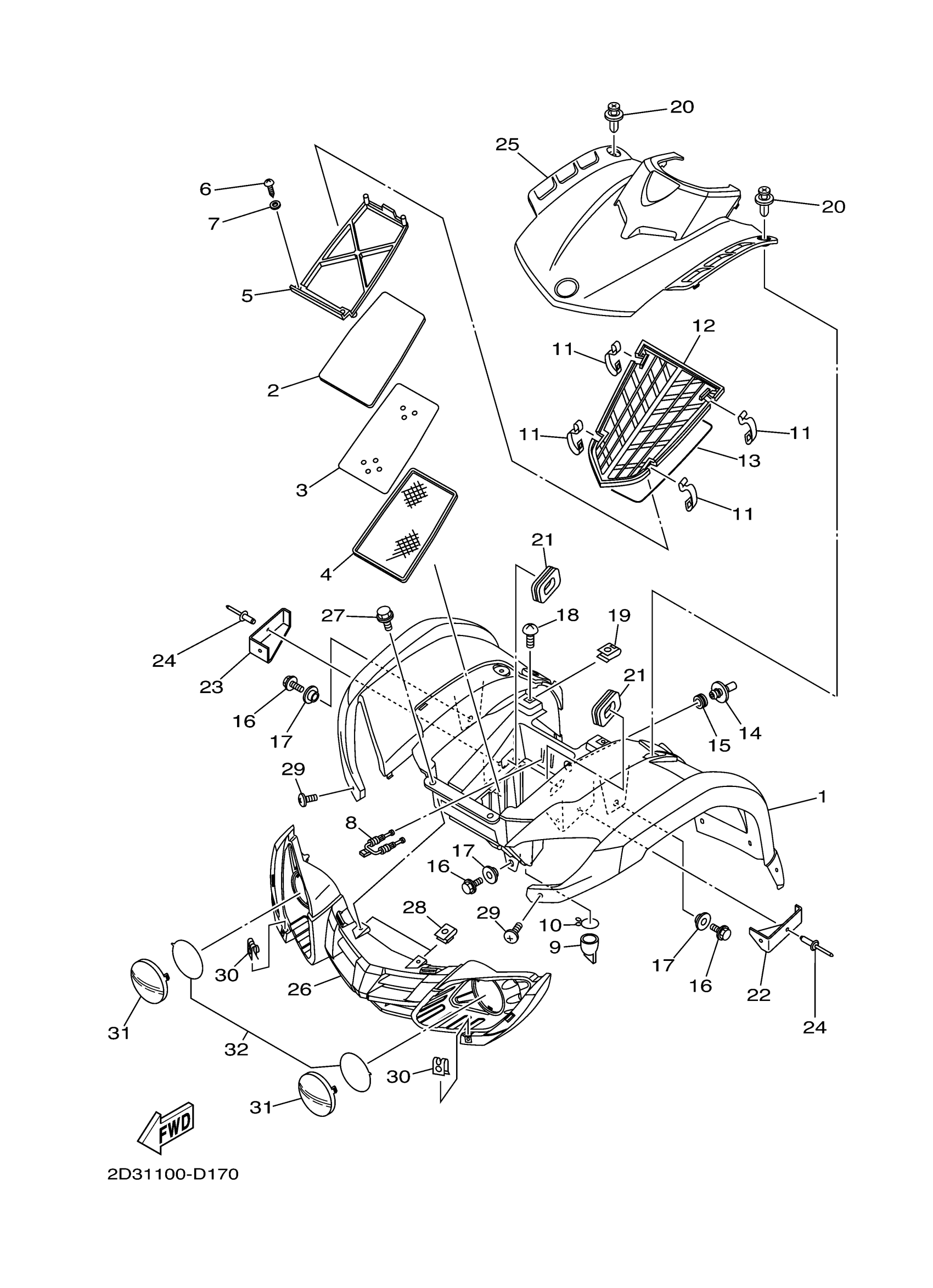

Yamaha YFM80GW (GRIZZLY 80) 2D37 2007 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

2D3-W2151-00-00

$292.17

1

FRONT FENDER COMP.

2D3-W2151-10-00

Unavailable

2

ELEMENT, AIR CLEANER

55X-14451-00-00

$8.31

3

PLATE

5TH-14477-00-00

$10.17

4

PLATE, ELEMENT

55X-14472-01-00

$38.80

5

GUIDE

55X-14458-00-00

$21.31

6

SCREW, TAPPING(4HP)

97707-40616-00

$1.23

7

WASHER(6E1)

92907-04200-00

$1.20

8

HOOK

55X-14436-00-00

Unavailable

9

SEAL

59V-14457-00-00

$5.65

10

CLIP (21V)

90467-22080-00

$6.17

11

HOOK

5TH-14436-00-00

$8.74

12

CAP, CLEANER CASE 1

5TH-14412-00-00

$44.03

13

SEAL

1VJ-14462-00-00

$16.08

14

PIPE

2D3-14419-00-00

Unavailable

15

GROMMET

31A-14435-01-00

$3.54

16

BOLT, WITH WASHER

90119-06242-00

$5.86

17

COLLAR

90387-06202-00

Unavailable

18

SCREW

90149-06021-00

$6.25

19

NUT, SPRING(4ES)

90183-06069-00

$5.93

20

RIVET(4JH)

90269-07076-00

$6.00

21

DUCT

2HX-14437-01-00

Unavailable

22

CAP 1

2D3-23741-00-00

Unavailable

23

CAP 2

2D3-23742-00-00

Unavailable

24

RIVET, BLIND

90267-48024-00

$1.88

25

PANEL, FRONT

2D3-23391-00-00

$87.69

26

GRILLE, FRONT

2D3-28309-00-00

Unavailable

27

BOLT(3KJ)

90109-063F1-00

$2.24

28

NUT, SPRING (26H)

90183-06023-00

$7.45

29

SCREW, C.R. BINDING (2T4)

90154-05004-00

$3.25

30

NUT, SPRING(3GM)

90183-05061-00

$3.98

31

LENS, HEADLIGHT

2D3-84121-00-00

$6.71

32

GRAPHIC SET

2D3-8412B-00-00

Unavailable
