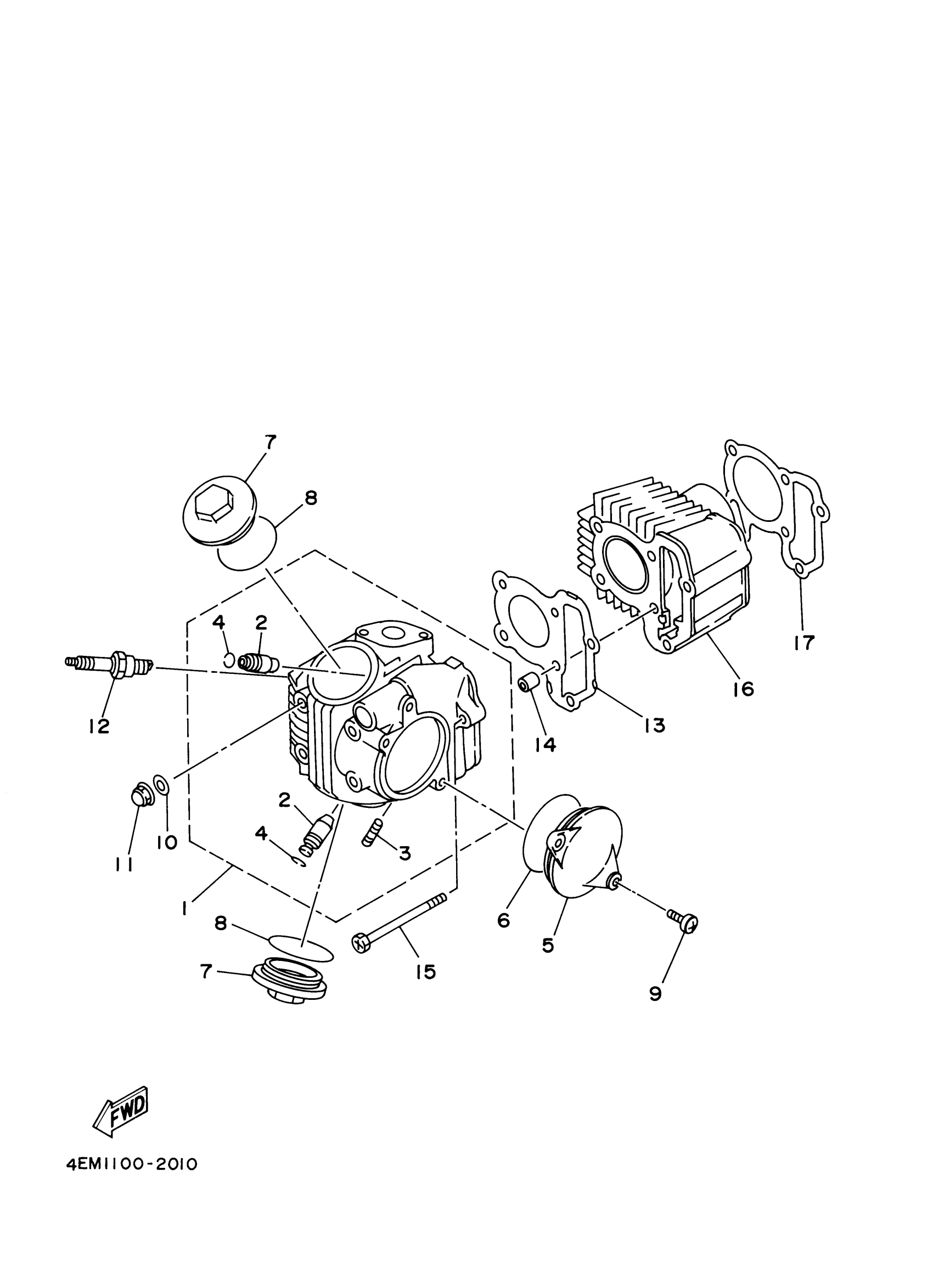

Yamaha YFM80GW (GRIZZLY 80) 2D37 2007 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

35T-11110-01-00

$434.01

2

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$76.81

3

BOLT

22F-14651-00-00

$6.11

4

CIRCLIP (22F)

93440-10109-00

$5.51

5

COVER, CYLINDER HEAD SIDE 1

22F-11185-10-00

Unavailable

6

O-RING (22F)

93210-63556-00

$6.49

7

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$18.45

8

O-RING(55X)

93210-44704-00

$5.72

9

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.43

10

WASHER, PLATE (22F)

90201-066F0-00

$6.29

11

NUT, CROWN(2GM)

90176-06065-00

$6.91

12

CR7HSA NGK SPLUG 4PK

CR7-HSA00-00-00

$3.92

13

GASKET, CYLINDER HEAD 1

55X-11181-00-00

$26.78

14

PIN, DOWEL

99530-08012-00

$6.62

15

BOLT, FLANGE(4NM)

95027-06085-00

$6.85

16

CYLINDER 1

22K-11311-02-00

Unavailable

17

GASKET, CYLINDER

22F-11351-01-00

$11.31
