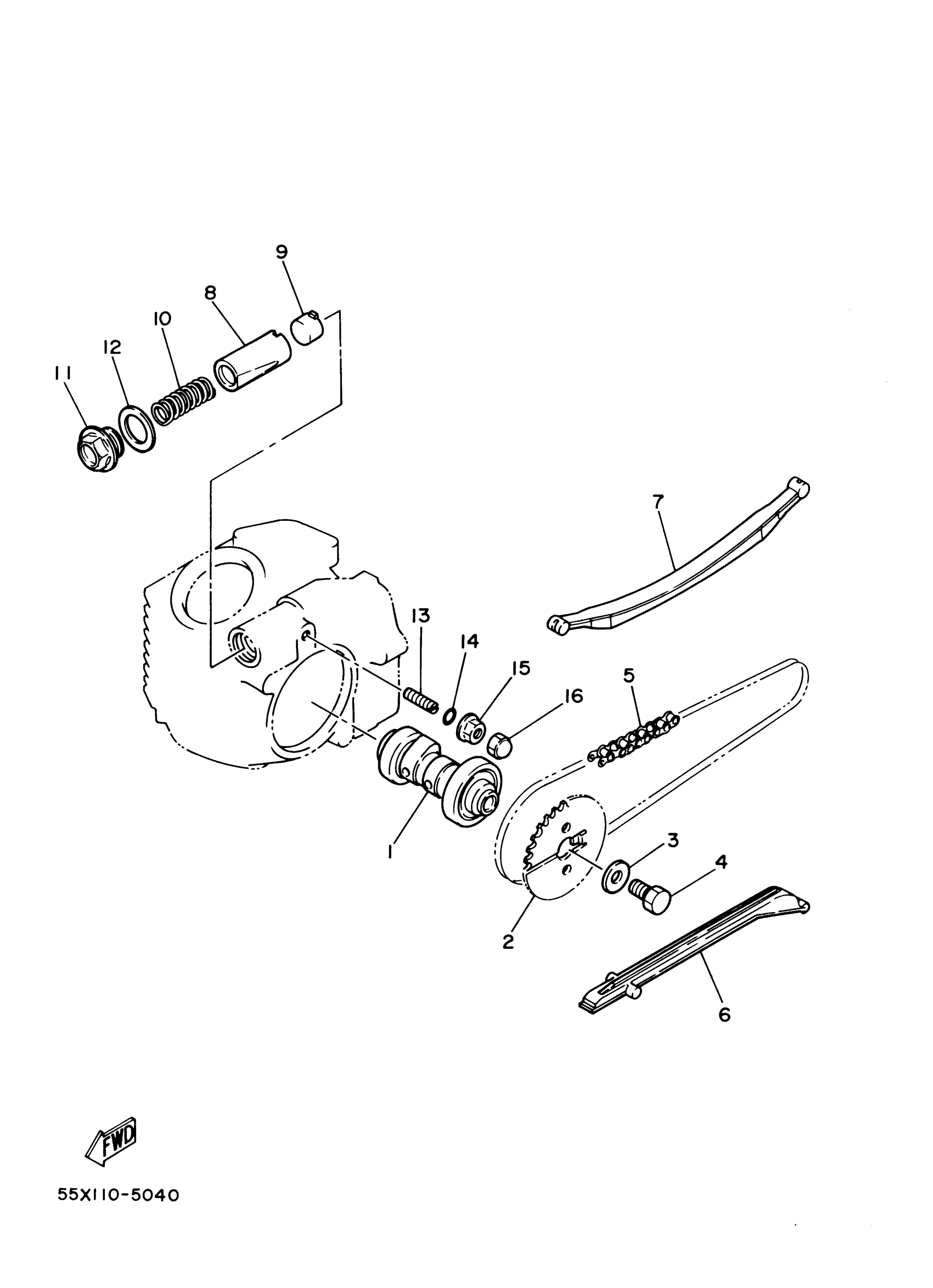

Yamaha YFM80GW (GRIZZLY 80) 2D37 2007 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

55X-12170-00-00

$176.42

2

SPROCKET, CAM CHAIN

50M-12176-00-00

$21.37

3

WASHER (853)

90201-08326-00

$6.17

4

BOLT, HEXAGON (22F)

90101-08590-00

$2.25

5

CHAIN(2FJ)

94580-25082-00

$20.22

6

GUIDE, STOPPER 1

22F-12231-02-00

Unavailable

7

GUIDE, STOPPER 2

22F-12241-01-00

Unavailable

8

ROD, CHAIN TENSIONER

22F-12217-01-00

Unavailable

9

PLUG, STRAIGHT (22F)

90334-14037-00

$7.03

10

SPRING, COMPRESSION (22F)

90501-10710-00

$5.51

11

PLUG, STRAIGHT SCREW (22F)

90340-18092-00

$10.42

12

WASHER, PLATE (22F)

90201-186F1-00

$6.85

13

BOLT SET 257163430000

90113-06009-00

$7.03

14

O-RING (11M)

93210-07540-00

$5.77

15

NUT

90179-06387-00

Unavailable

16

NUT(4MY)

95307-06800-00

$2.86
