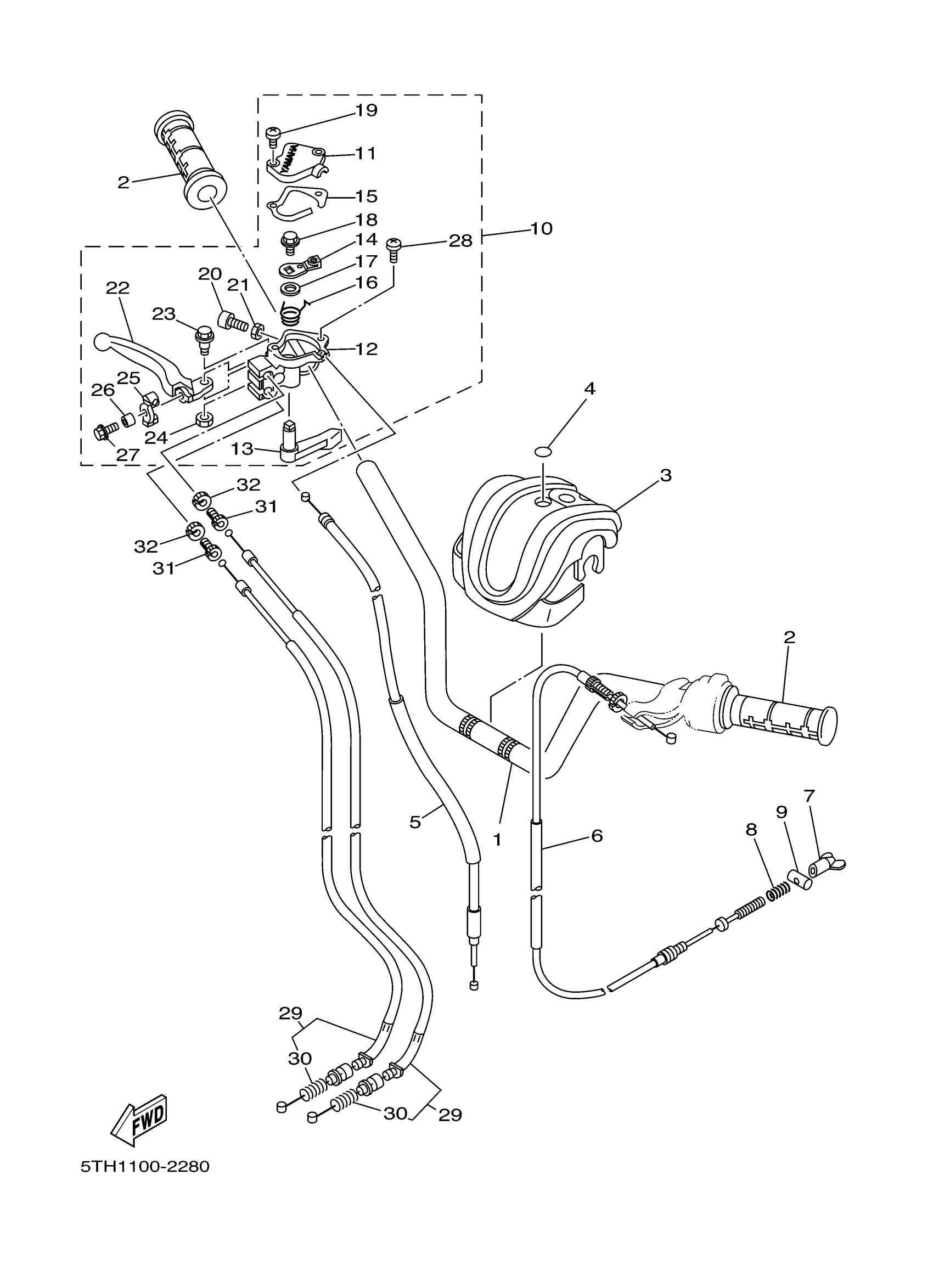

Yamaha YFM80GHW (GRIZZLY 80 HUNTER) 2D39 2007 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

87A-23811-00-00

Unavailable

2

GRIP (LEFT)

5LP-26241-00-00

$21.75

3

PROTECTOR, HANDLEBAR

5TH-26124-A0-00

Unavailable

4

TUNING FORK MARK

5GT-2836B-10-00

$14.37

5

WIRE, THROTTLE 1

3GB-26311-03-00

Unavailable

6

CABLE, BRAKE

3GB-26341-01-00

$43.56

7

NUT, AJUSTING

20E-26343-00-00

$22.28

8

SPRING, COMPRESSION (29U)

90501-10782-00

$6.17

9

PIN 1562723700

90249-12008-00

$4.70

10

THROTTLE LEVER ASSY

5TH-26250-01-00

Unavailable

11

CAP, GEAR

3GB-2628F-00-00

Unavailable

12

BODY, THROTTLE

3GB-2625E-01-00

Unavailable

13

LEVER, THROTTLE

3GB-2625G-00-00

$34.06

14

ARM, THROTTLE

3GB-2625H-00-00

$6.72

15

GASKET

3GB-2628G-02-00

$5.31

16

SPRING, TORSION(3GB)

90508-10775-00

$2.82

17

WASHER, PLATE(3GB)

90201-145M4-00

$7.12

18

BOLT, FLANGE

95817-08012-00

$3.98

19

SCREW, PAN HEAD

98517-04016-00

$6.18

20

BOLT, SOCKET

91317-05025-00

$1.95

21

NUT, HEXAGON SMALL

95317-05700-00

$6.18

22

LEVER 2

5TH-83922-00-00

$14.82

23

BOLT(3GB)

90109-061F3-00

$4.85

24

NUT, SELF-LOCKING

95617-06100-00

$2.32

25

JOINT, CABLE

3GB-26347-00-00

$20.82

26

COLLAR (3L6)

90387-06761-00

$6.88

27

BOLT, FLANGE

95817-06016-00

$1.49

28

SCREW, PAN

98517-06020-00

$1.82

29

CABLE, BRAKE

3GB-26361-04-00

Unavailable

30

SPRING (2N3)

90501-08511-00

$2.48

31

BOLT(2FJ)

90123-08106-00

$11.49

32

NUT

90179-08030-00

$3.78
