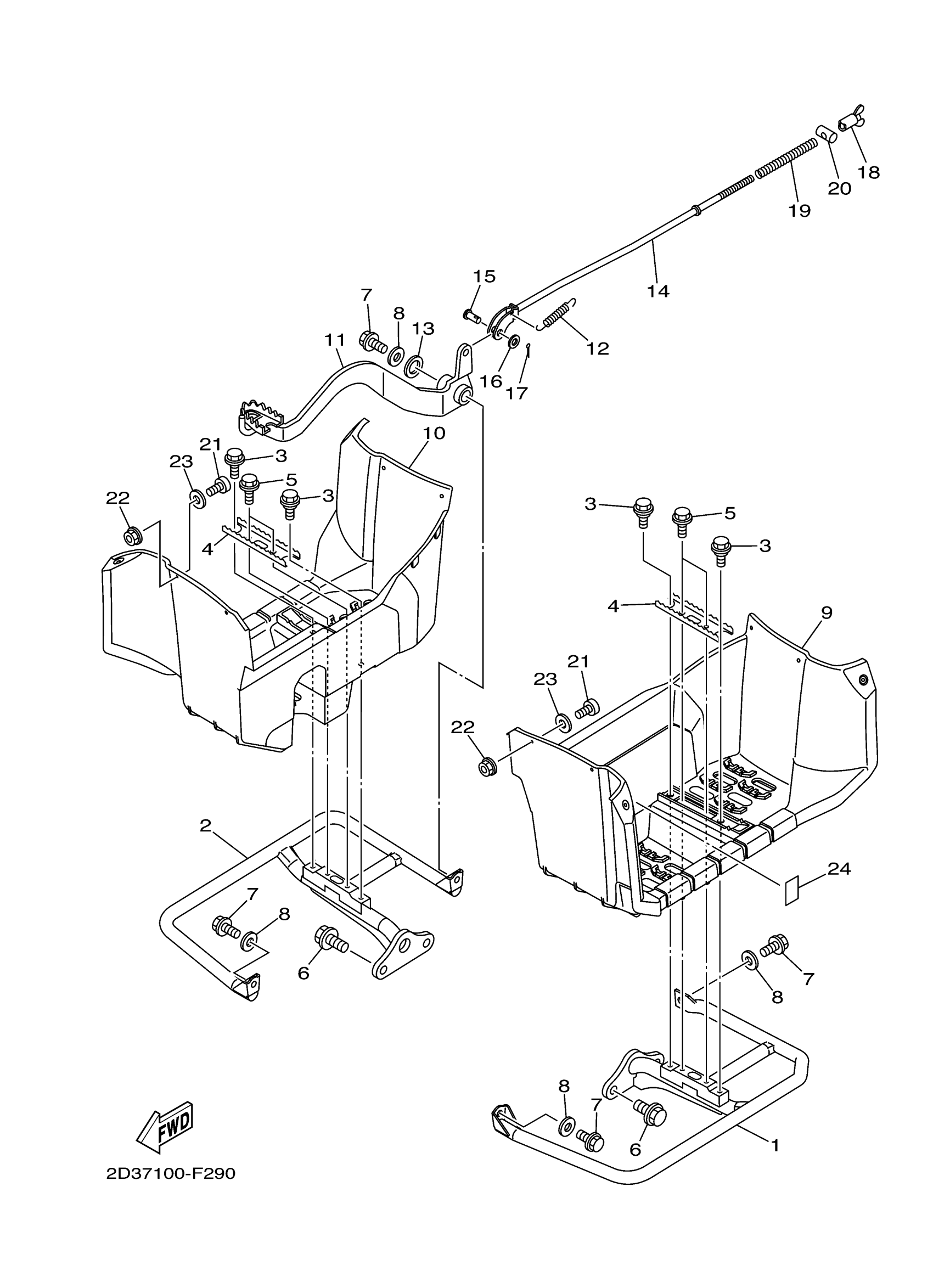

Yamaha YFM80GHW (GRIZZLY 80 HUNTER) 2D39 2007 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

2D3-27411-10-00

Unavailable

2

FOOTREST 2

2D3-27421-10-00

Unavailable

3

BOLT(3KJ)

90109-063F1-00

$2.24

4

ARM 1

2D3-2741A-00-00

Unavailable

5

BOLT, FLANGE

95817-06012-00

$1.49

6

BOLT, FLANGE

95817-12020-00

$7.57

7

BOLT, FLANGE

95027-08014-00

$0.71

8

WASHER, PLATE(3XP)

90201-086P8-00

$4.35

9

COVER 1

2D3-27453-01-00

Unavailable

10

COVER 2

2D3-27463-01-00

Unavailable

11

PEDAL, BRAKE

2D3-27211-10-00

$79.40

12

SPRING, TENSION (29U)

90506-16318-00

$8.43

13

WASHER, PLATE (3X3)

90201-15797-00

$6.29

14

ROD, BRAKE

3GB-27231-00-00

$19.58

15

PIN, CLEVIS (3X3)

90240-06076-00

$6.17

16

WASHER(6TA)

92907-06200-00

$6.18

17

PIN, COTTER (648)

91490-20015-00

$1.85

18

NUT, AJUSTING

20E-26343-00-00

$22.28

19

SPRING, (180-27236-00)

90501-10245-00

$6.17

20

PIN 1562723700

90249-12008-00

$4.70

21

SCREW, BINDING

98907-05016-00

$6.18

22

NUT, NYLON

95707-05300-00

$2.74

23

WASHER, PLATE 8067717800

90201-05029-00

$5.12

24

EMBLEM

4EM-15443-01-00

Unavailable
