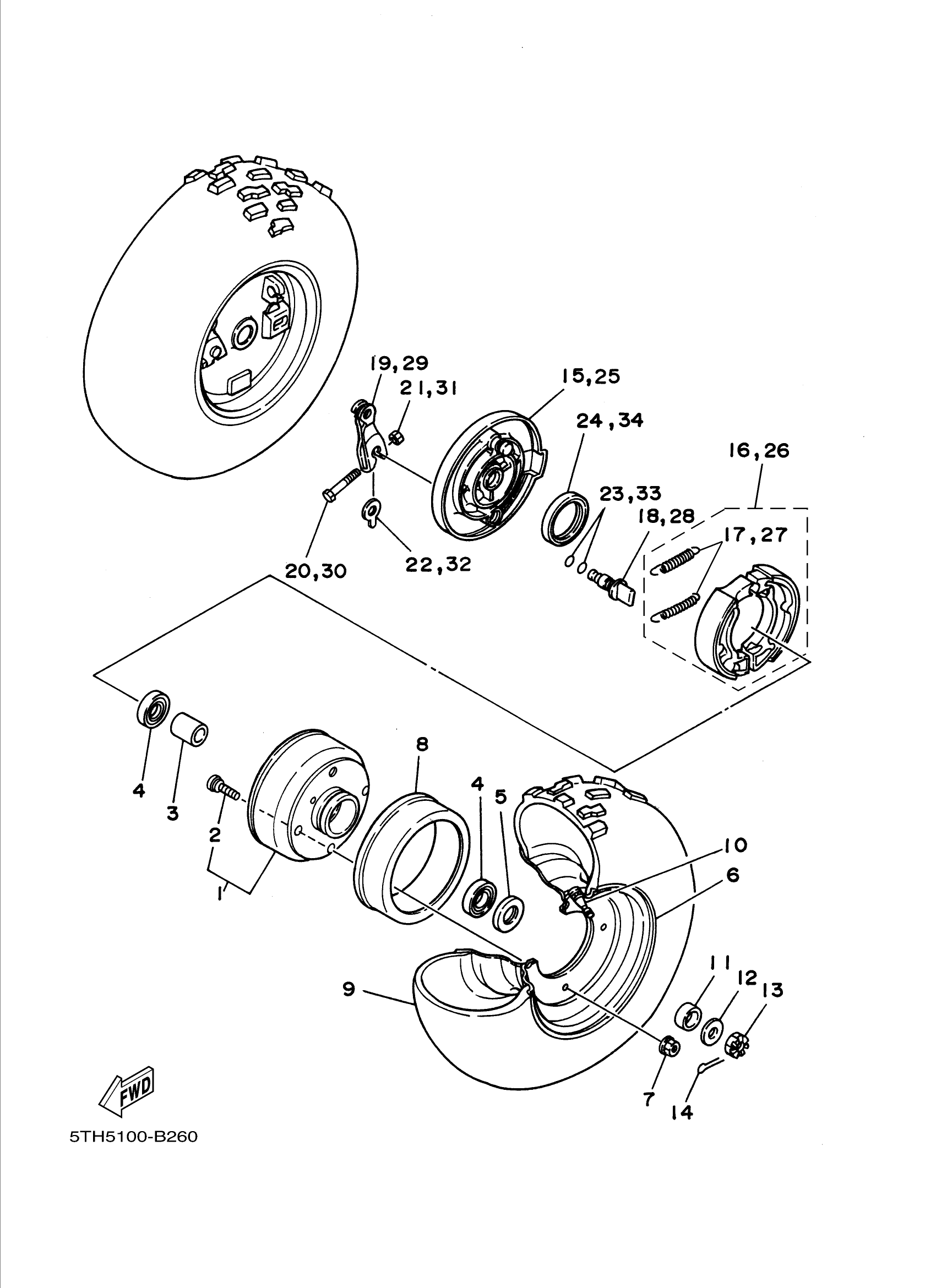

Yamaha YFM80GHW (GRIZZLY 80 HUNTER) 2D39 2007 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

2FJ-25111-00-00

Unavailable

2

BOLT, SERRATION

90114-08001-00

$5.57

3

SPACER, BEARING

2FJ-25117-00-00

$30.77

4

BEARING(2JN)

93306-00315-00

$27.16

5

OIL SEAL (21V)

93102-23275-00

$12.45

6

WHEEL COMP.

2FJ-25180-00-98

$76.18

7

NUT, FLANGE(JN5)

95707-08500-00

$1.49

8

RING 1

3GB-25185-00-00

Unavailable

9

TIRE

2D3-2510K-09-00

$103.44

10

VALVE, RIM(2GH)

93900-00030-00

$14.46

11

COLLAR

90387-175R2-00

$10.02

12

WASHER PLATE 248181370000

90201-14220-00

$6.17

13

NUT, CASTLE(2UJ)

90171-14056-00

$10.57

14

PIN, COTTER

91401-30025-00

$6.18

15

PLATE, BRAKE SHOE

2FJ-25121-00-00

Unavailable

16

BRAKE SHOE KIT

4KN-W253E-11-00

$22.40

17

SPRING, TENSION

90506-15260-00

$5.75

18

CAMSHAFT

3GB-25151-00-00

$18.11

19

LEVER, CAMSHAFT 1

2FJ-25155-00-00

Unavailable

20

BOLT, HEXAGON (538)

90101-06278-00

$1.82

21

NUT(6TA)

95317-06600-00

$2.69

22

PLATE, INDICATOR

52H-2513A-00-00

$1.91

23

O-RING(3LD)

93210-12790-00

$5.75

24

OIL SEAL(3BC)

93106-40027-00

$13.22

25

PLATE, BRAKE SHOE 2

2FJ-25169-00-00

Unavailable

26

BRAKE SHOE KIT

4KN-W253E-11-00

$22.40

27

SPRING, TENSION

90506-15260-00

$5.75

28

CAMSHAFT

3GB-25151-00-00

$18.11

29

LEVER, CAMSHAFT 2

2FJ-25156-00-00

Unavailable

30

BOLT, HEXAGON (538)

90101-06278-00

$1.82

31

NUT(6TA)

95317-06600-00

$2.69

32

PLATE, INDICATOR

52H-2513A-00-00

$1.91

33

O-RING(3LD)

93210-12790-00

$5.75

34

OIL SEAL(3BC)

93106-40027-00

$13.22
