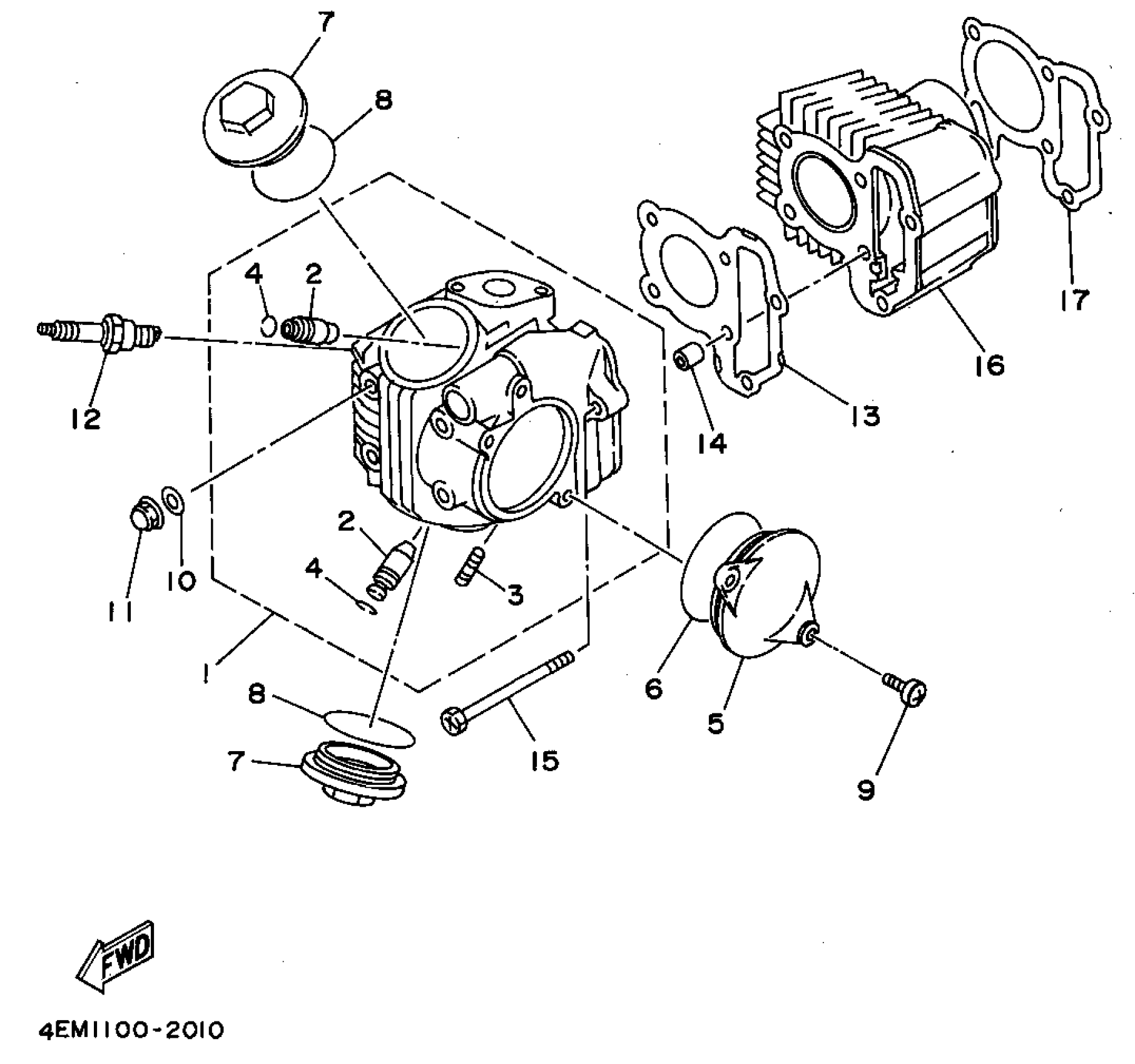

Yamaha YFM80G (BADGER) 1995 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

35T-11110-01-00

Unavailable

2

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$71.87

3

BOLT

22F-14651-00-00

$5.70

4

CIRCLIP (22F)

93440-10109-00

$5.29

5

COVER, CYLINDER HEAD SIDE 1

22F-11185-10-00

Unavailable

6

O-RING (22F)

93210-63556-00

$6.49

7

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$17.22

8

O-RING(55X)

93210-44704-00

$5.34

9

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.27

10

WASHER, PLATE (22F)

90201-066F0-00

$5.86

11

NUT, CROWN (21G)

90176-06041-00

$2.56

12

C7HSA NGK 4PK

C7H-SA000-00-00

Unavailable

13

GASKET, CYLINDER HEAD 1

55X-11181-00-00

$25.70

14

PIN, DOWEL(N04)

91808-12024-00

$3.55

15

BOLT, FLANGE(4NM)

95027-06085-00

$6.39

16

CYLINDER 1

22K-11311-02-00

Unavailable

17

GASKET, CYLINDER

22F-11351-01-00

Unavailable
