Description

Price

1

COLUMN, STEERING 2

1S3-23813-10-00

$206.70

2

ARM, PITMAN

5TG-23816-10-00

$64.14

3

ROD, TIE

1S3-23831-20-00

$60.97

4

JOINT, UNIVERSAL 1

1S3-23841-20-00

$54.94

5

JOINT, UNIVERSAL 2

1S3-23845-20-00

$54.94

6

NUT, HEXAGON SMALL

95317-12700-00

$6.17

7

NUT (821-23834-00)

90170-12054-00

$6.17

8

NUT, CASTLE

90171-10001-00

$2.85

9

WASHER (25G)

90209-10229-00

$5.86

10

PIN, COTTER

91490-20025-00

$1.31

11

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

12

BOLT, FLANGE(6TA)

95817-08030-00

$6.17

13

PLANE BEARING, STEERING

1UY-23812-00-00

$21.15

14

OIL SEAL(1UY)

93112-31011-00

$7.52

15

BRACKET, STEERING LOWER

3GD-23868-01-00

$17.91

16

BOLT, HEXAGON

97017-08060-00

$7.72

17

WASHER, LOCK 1

1UY-23894-01-00

$6.86

18

COLLAR(85G)

90387-106T4-00

$11.29

19

WASHER, PLATE

90201-14021-00

$5.14

20

NUT, SELF-LOCKING

90185-14009-00

$8.31

21

PIN, COTTER

91490-20035-00

$3.25

22

NUT, CASTLE

90171-10001-00

$2.85

23

WASHER (25G)

90209-10229-00

$5.86

24

PIN, COTTER

91490-20025-00

$1.31

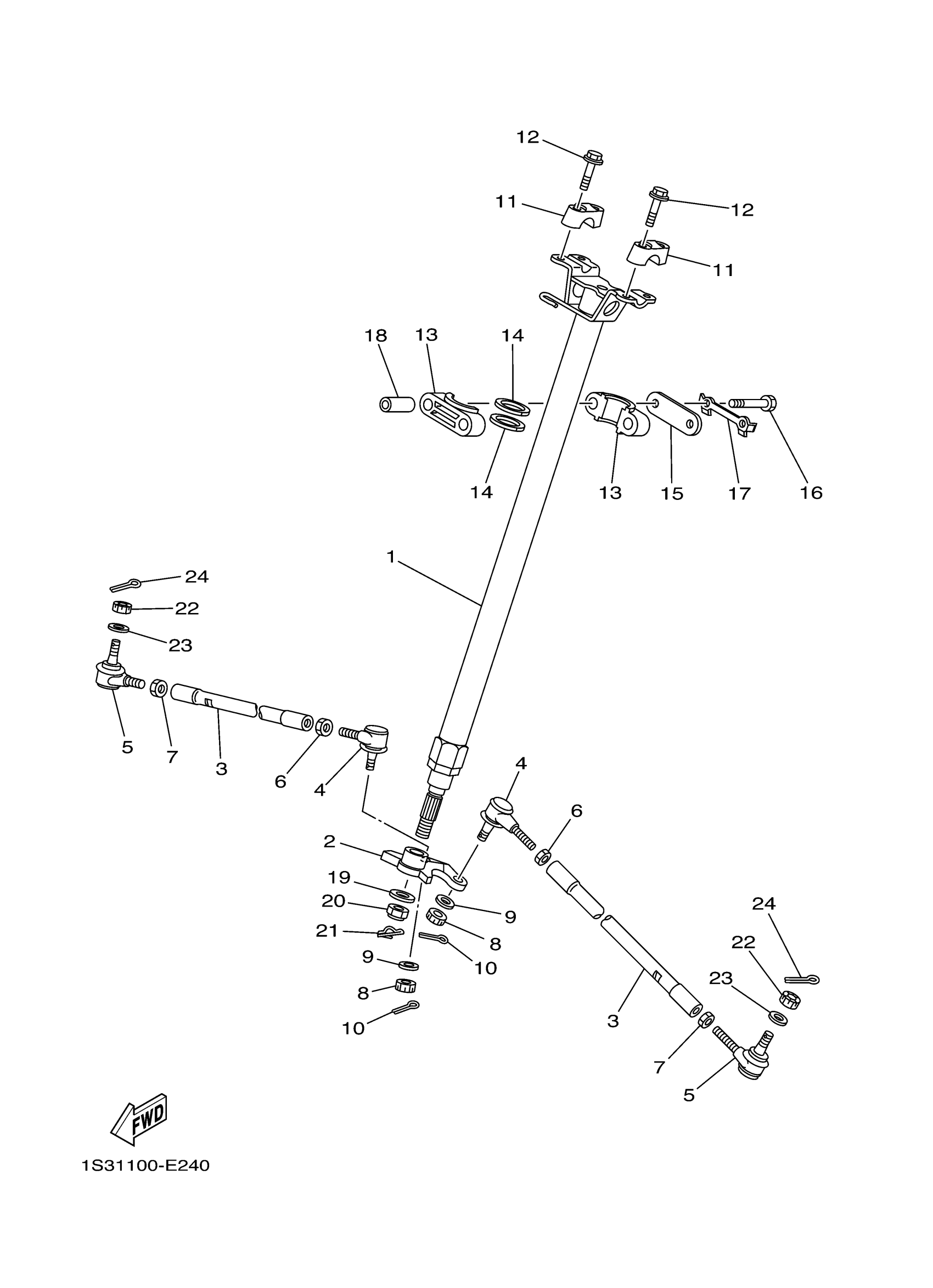

Yamaha YFM7RAL (RAPTOR 700R) 1AS7 2011 STEERING Diagram
