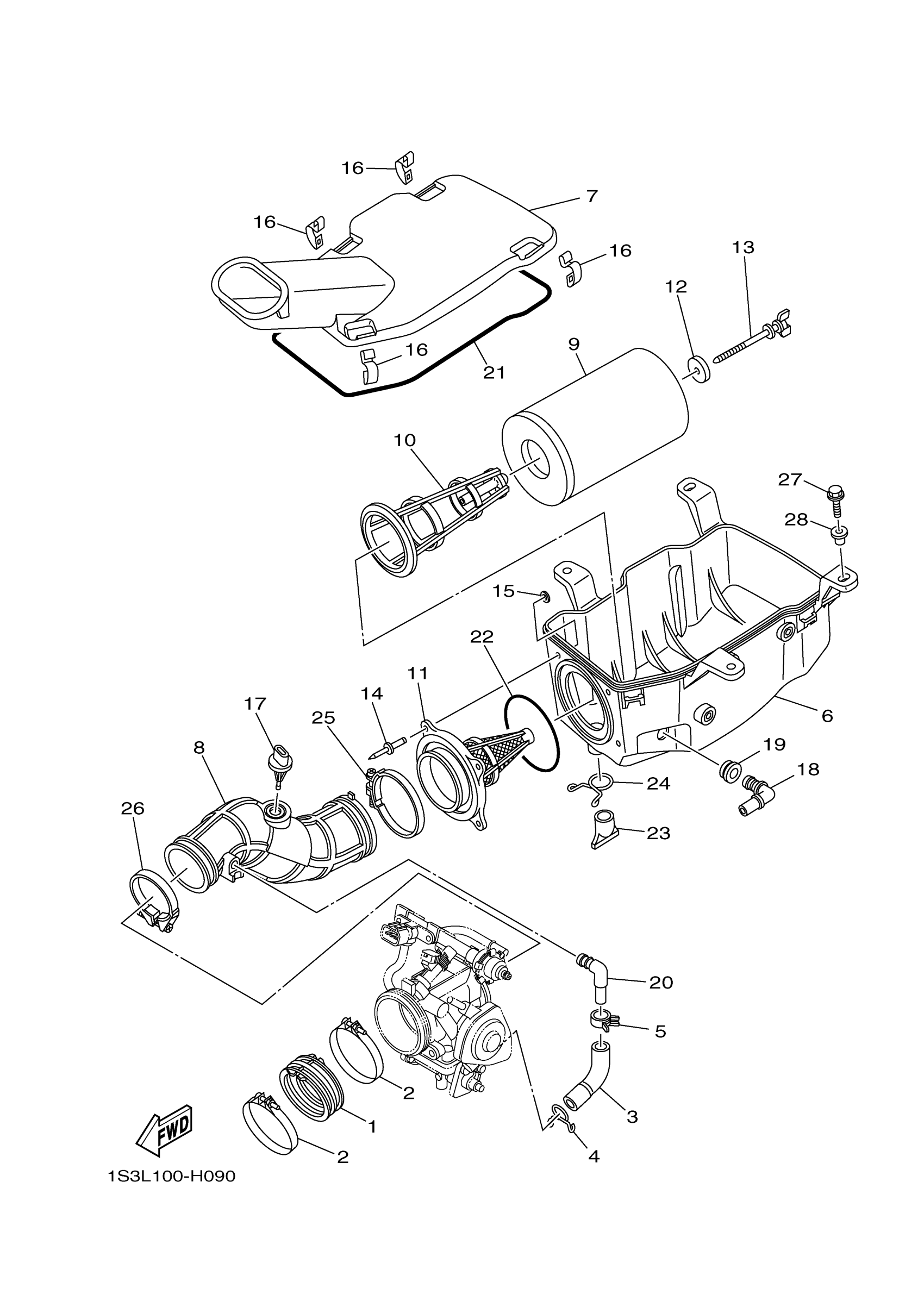

Yamaha YFM7RAL (RAPTOR 700R) 1AS7 2011 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5VK-13586-00-00

$26.11

2

HOSE CLAMP ASSY

90450-72003-00

$16.15

3

HOSE 1

1S3-13545-00-00

$9.14

4

CLIP

90467-160A4-00

$6.25

5

CLIP (806-24358-00)

90467-15012-00

$4.71

6

CASE, AIR CLEANER 1

1S3-14411-00-00

$46.72

7

CAP, CLEANER CASE 1

1S3-14412-01-00

$26.66

8

JOINT, AIR CLEANER 1

1S3-14453-00-00

$67.94

9

ELEMENT, AIR CLEAN

1S3-14451-01-00

$37.83

10

GUIDE

1S3-14458-00-00

$27.34

11

HOLDER, GUIDE

1S3-14459-01-00

$46.66

12

WASHER (4H7)

90209-06096-00

$6.57

13

BOLT, WING

90122-06010-00

$9.15

14

RIVET, BLIND(80N)

90267-48138-00

$2.62

15

WASHER, PLATE

90201-04028-00

$6.31

16

HOOK

5TH-14436-00-00

$8.74

17

SENSOR, AIR TEMPERATURE

5VU-85886-00-00

$49.89

18

PIPE

5KM-14419-00-00

$6.72

19

GROMMET

31A-14435-01-00

$3.54

20

PIPE

31A-14419-00-00

$6.62

21

SEAL

1VJ-14462-00-00

$16.08

22

SEAL

1S3-14457-00-00

$4.71

23

SEAL

59V-14457-00-00

$5.65

24

CLIP

90467-220A1-00

$5.14

25

HOSE CLAMP ASSY

90450-75002-00

$10.40

26

HOSE CLAMP ASSY

90450-59005-00

$14.05

27

BOLT, FLANGE

90105-06084-00

$3.92

28

COLLAR

90387-08073-00

$7.94
