Description

Price

1

BRACKET, FOOTREST 1

3B4-27452-00-00

$126.57

2

BRACKET, FOOTREST 2

3B4-27462-00-00

$133.40

3

BOLT, WITH WASHER

90119-10044-00

$6.51

4

COVER 1

3B4-27453-01-00

$169.28

5

SEAL 1

3B4-21732-00-00

$9.06

6

ARM 1

5GH-2741A-10-00

$12.34

7

BOLT

90109-06214-00

$5.72

8

WASHER, PLATE

90201-06033-00

$2.74

9

NUT(6TA)

95317-06600-00

$2.69

10

GROMMET(3SX)

90480-14532-00

$4.35

11

COVER 3

3B4-28239-02-00

Unavailable

12

SEAL 2

3B4-21735-00-00

Unavailable

13

BOLT

90109-06172-00

$2.71

14

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$6.28

15

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.97

16

WASHER, PLATE

90201-06078-00

$5.48

17

NUT, NYLON

95707-06300-00

$3.20

18

COVER 2

3B4-27463-01-00

$66.50

19

ARM 1

5GH-2741A-10-00

$12.34

20

BOLT

90109-06214-00

$5.72

21

WASHER, PLATE

90201-06033-00

$2.74

22

NUT(6TA)

95317-06600-00

$2.69

23

BOLT

90109-06172-00

$2.71

24

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$6.28

25

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.97

26

WASHER, PLATE

90201-06078-00

$5.48

27

NUT, NYLON

95707-06300-00

$3.20

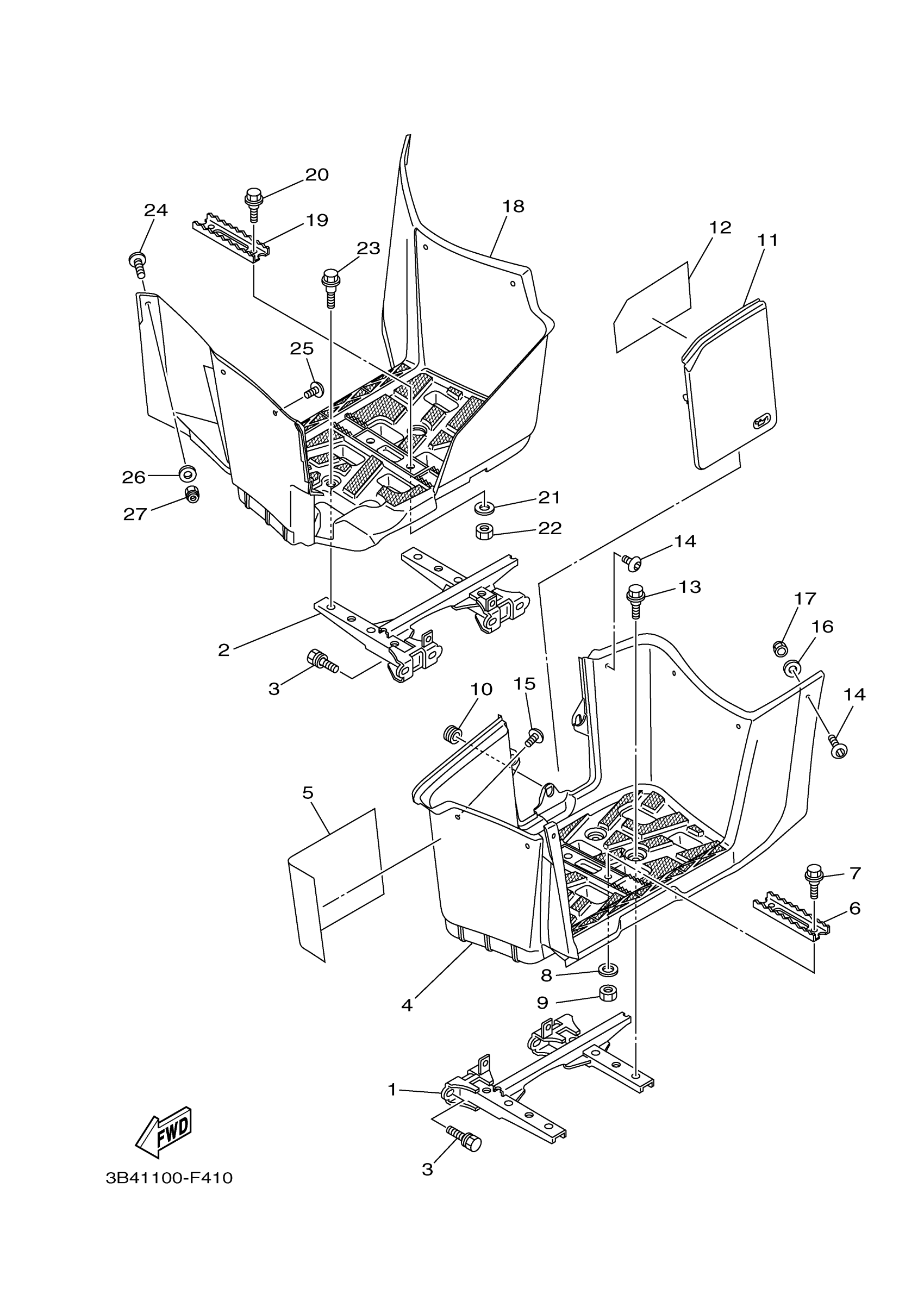

Yamaha YFM7FGPYB (GRIZZLY 700 FI EPS 4WD) 43P1 2009 STAND FOOTREST Diagram

COVER 3

SEAL 2
