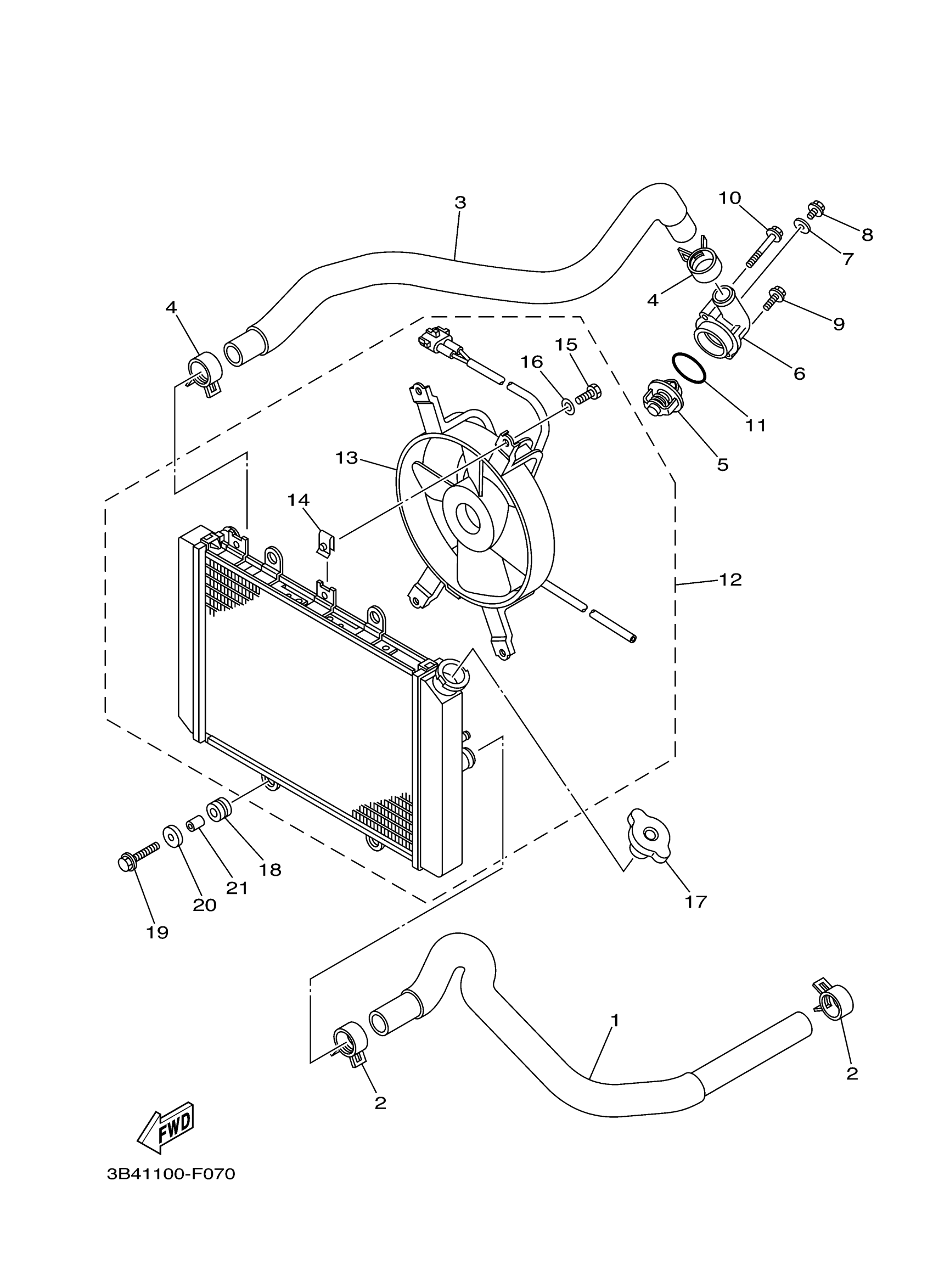

Yamaha YFM7FGPXL (GRIZZLY 700 POWER STEERING) 3B490 2008 RADIATOR HOSE Diagram

#

Description
Price

1

HOSE 1

1HP-E2576-00-00

$34.97

2

CLIP

90467-26189-00

$5.86

3

HOSE 3

1HP-E2578-00-00

$26.66

4

CLIP

90467-26189-00

$5.86

5

THERMOSTAT

3B4-12411-01-00

Unavailable

6

COVER, THERMOSTAT

1S3-12413-00-00

$41.97

7

GASKET 256113960000

90430-06014-00

$7.23

8

BOLT, FLANGE

95022-06010-00

$5.45

9

BOLT, FLANGE

95022-06020-00

$3.32

10

BOLT, FLANGE

95022-06045-00

$2.48

11

O-RING (132)

93210-41042-00

$5.72

12

RADIATOR ASSY

3B4-1240A-11-00

Unavailable

13

BLOWER ASSY

3B4-12405-01-00

Unavailable

14

PLATE

1AA-12535-00-00

$12.27

15

BOLT(3JP)

97017-06010-00

$2.62

16

WASHER(6TA)

92907-06600-00

$0.78

17

CAP, RADIATOR

4FL-12462-00-00

$55.82

18

GROMMET(2GH)

90480-12475-00

$6.68

19

BOLT, FLANGE

95817-06020-00

$2.69

20

WASHER

90209-06012-00

$4.71

21

COLLAR

90387-06113-00

$10.51
