Description

Price

1

RR. MASTER CYLINDER ASSY.

3B4-2583V-00-00

$324.56

2

CYLINDER KIT, MASTER

5LP-W0041-00-00

$62.56

3

SCREW, FLAT

98707-04012-00

$1.43

4

CAP, RESERVOIR

3GM-25852-22-00

$55.43

5

PLATE, DIAPHRAGM

3B4-2585B-00-00

$8.63

6

DIAPHRAGM, RESERVOIR

4TT-25854-00-00

$15.83

7

LEVER 1

3B4-83912-00-00

$52.69

8

BOLT, LEVER

3B4-2589F-10-00

$12.65

9

NUT 1

3B4-26294-00-00

$3.58

10

BRACKET, MASTER CYLINDER

56A-25867-00-00

$24.65

11

BOLT

5EB-26332-00-00

$6.14

12

FRONT STOP SWITCH ASSY

3B4-83980-00-00

$24.12

13

COVER, HANDLE LEVER 1

3B4-26372-00-00

$7.06

14

PIN W/HOLE 307181180000

90240-08013-00

$5.10

15

WASHER, PLATE 1562722600

90201-08083-00

$6.29

16

HOSE, BRAKE 1

1HP-F5872-00-00

$21.75

17

CIRCLIP

2GU-25866-00-00

$8.70

18

CLAMP

90464-16006-00

$8.31

19

BOLT, UNION(3GM)

90401-10159-00

$8.85

20

WASHER, PLATE(481)

90201-10118-00

$2.91

21

BOLT, FLANGE

95822-06025-00

$1.46

22

HOSE, BRAKE

1HP-F5874-00-00

Unavailable

23

PIPE, BRAKE 2

1HP-F5882-02-00

$13.02

24

CLAMP 1

5KM-81677-00-00

$5.75

25

COVER 1

3B4-25715-00-00

$20.11

26

HOLDER, BRAKE HOSE 5

3B4-2588F-00-00

$7.49

27

BOLT(3KJ)

90109-063F1-00

$2.24

28

PEDAL, BRAKE

1HP-F7211-01-00

$26.47

29

CIRCLIP

99006-10600-00

$6.91

30

WASHER, PLATE(52G)

90201-144J2-00

$6.46

31

SPRING, TENSION (29U)

90506-16318-00

$8.43

32

BOLT

97012-06014-00

$6.25

33

NUT(6TA)

95317-06600-00

$2.69

34

SCREW, PAN HEAD

98511-04012-00

Unavailable

35

YBS67-4 WASHER, SPRING

92990-04100-00

$0.60

36

WASHER, PLAIN (646)

92990-04600-00

$0.92

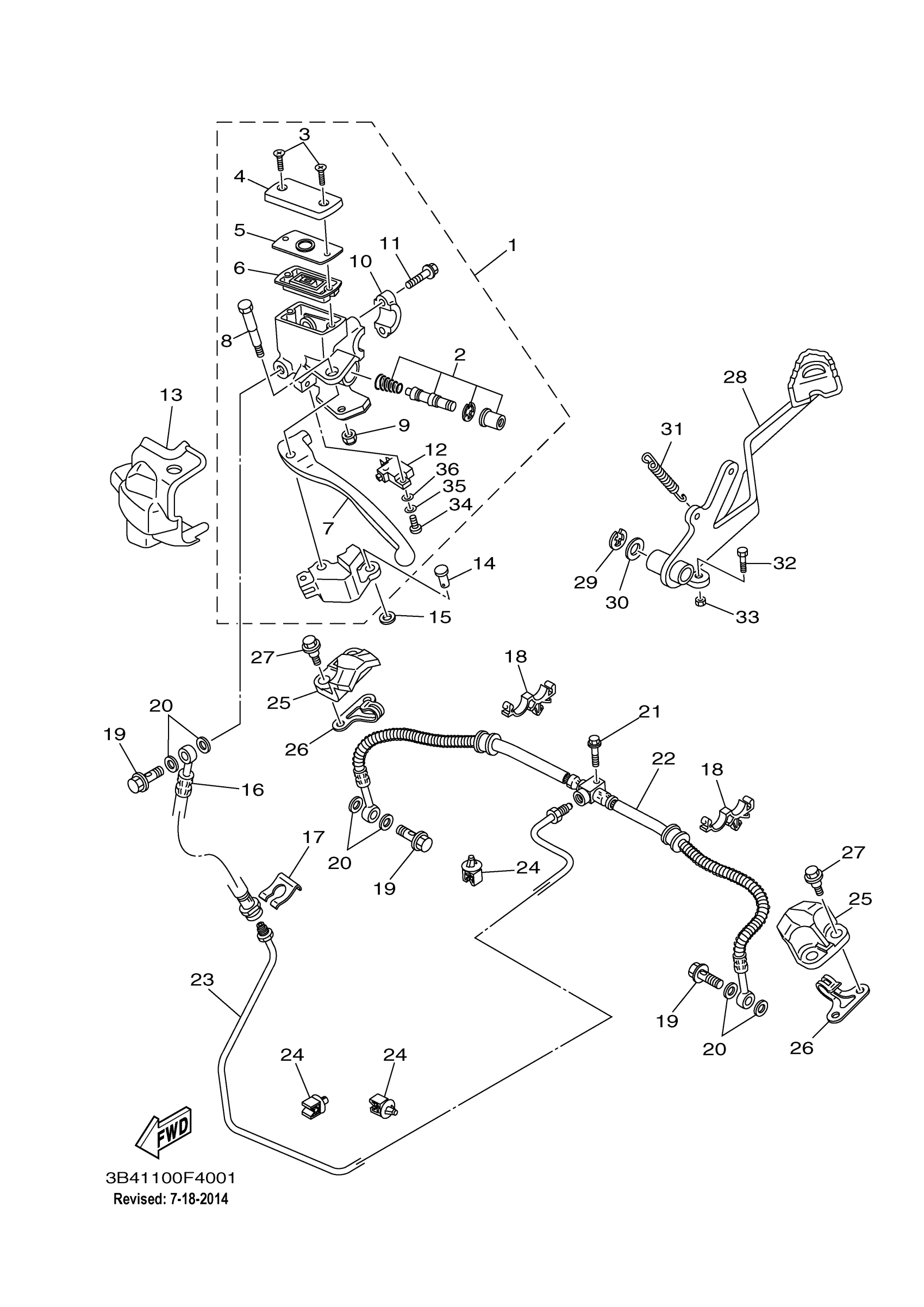

Yamaha YFM7FGPW (GRIZZLY 700) 3B41 2007 REAR MASTER CYLINDER Diagram
