Description

Price

1

WHEEL COMP.

1HP-F5180-00-00

Unavailable

2

AT25X8.00-12 MU19

94108-12817-00

$211.72

3

VALVE, RIM(2GH)

93900-00030-00

$14.46

4

NUT

90179-10007-00

$5.38

5

HUB ASSY 2

B16-F510D-03-00

$51.07

6

BOLT, SERRATION

90114-10014-00

$2.74

7

STEERING KNUCKLE ASSY (RIGHT)

3B4-23502-01-00

$485.26

8

BEARING

93305-00602-00

$98.89

9

CIRCLIP

99009-55500-00

$7.26

10

BALL JOINT 2

3B4-23579-01-00

$72.96

11

CIRCLIP(4A6)

99009-30400-00

$6.55

12

RING, WHEEL 2 (RIGHT)

3B4-2515A-00-00

$11.95

13

SCREW, BINDING (31K)

90154-06014-00

$7.68

14

DOUBLE OFF SET JOINT

3B4-2510J-00-00

$379.54

15

BALL JOINT SET

3B4-2510F-00-00

$495.78

16

BOOT SET(DOUBLE OFFSET JOINT)

3B4-2510H-00-00

$54.64

17

BOOT SET (BALL JOINT)

3B4-2510G-00-00

$53.99

18

SHAFT

3B4-2518E-00-00

$113.71

19

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

$12.09

20

BOOT BAND (SMALL)

3B4-2512G-00-00

$10.48

21

BOOT BAND (BALL JOINT)

3B4-2511G-00-00

$7.05

22

SNAP RING

3B4-2512J-00-00

$8.12

23

CIRCLIP

3B4-2512H-00-00

$5.12

24

CIRCLIP

3B4-25182-00-00

$5.03

25

CIRCLIP(2HR)

93450-22119-00

$5.10

26

NUT

90179-20016-00

$11.20

27

CAP, WHEEL

1HP-F512A-00-00

$1.74

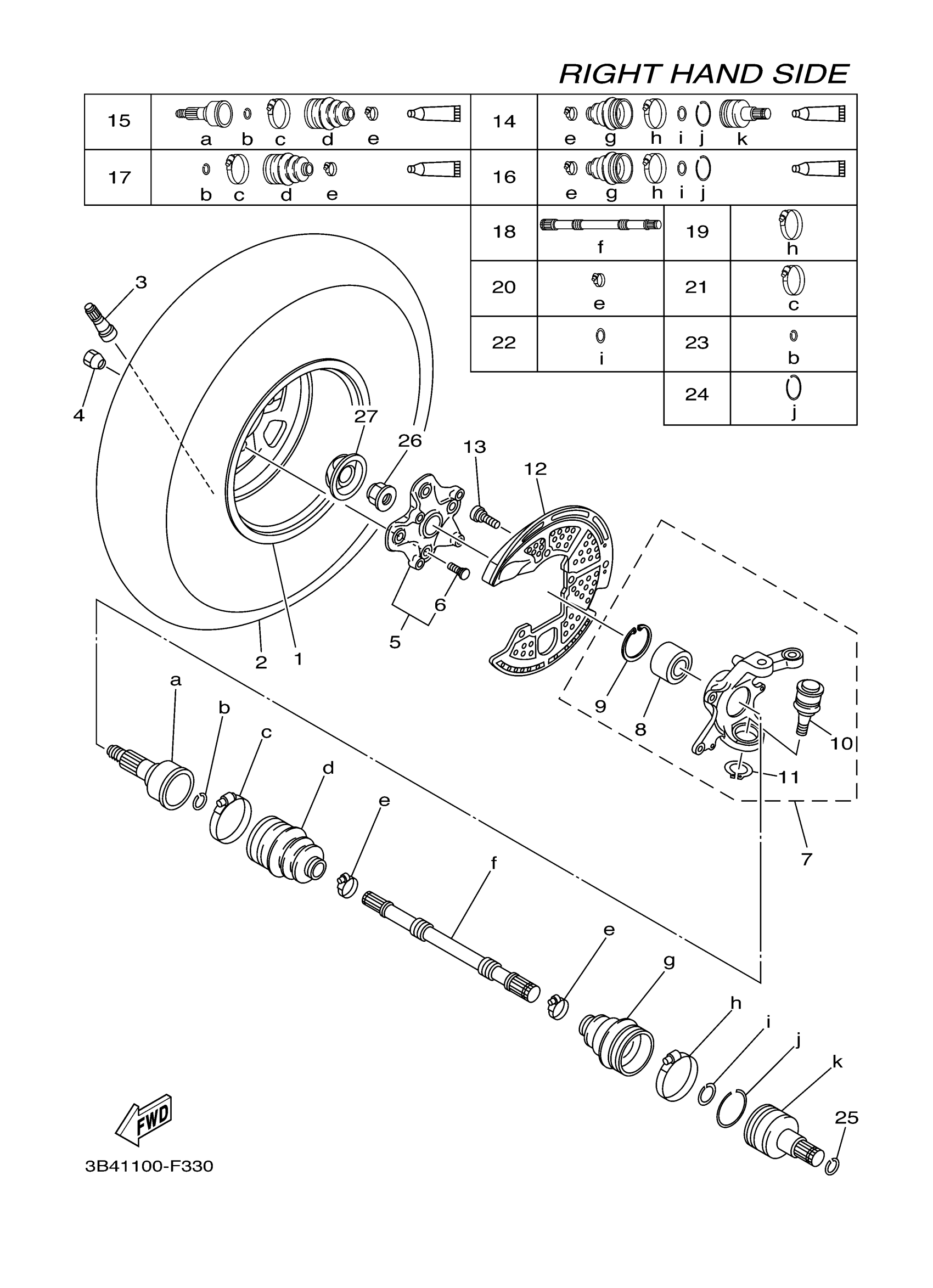

Yamaha YFM7FGPW (GRIZZLY 700) 3B41 2007 FRONT WHEEL 2 Diagram

WHEEL COMP.
